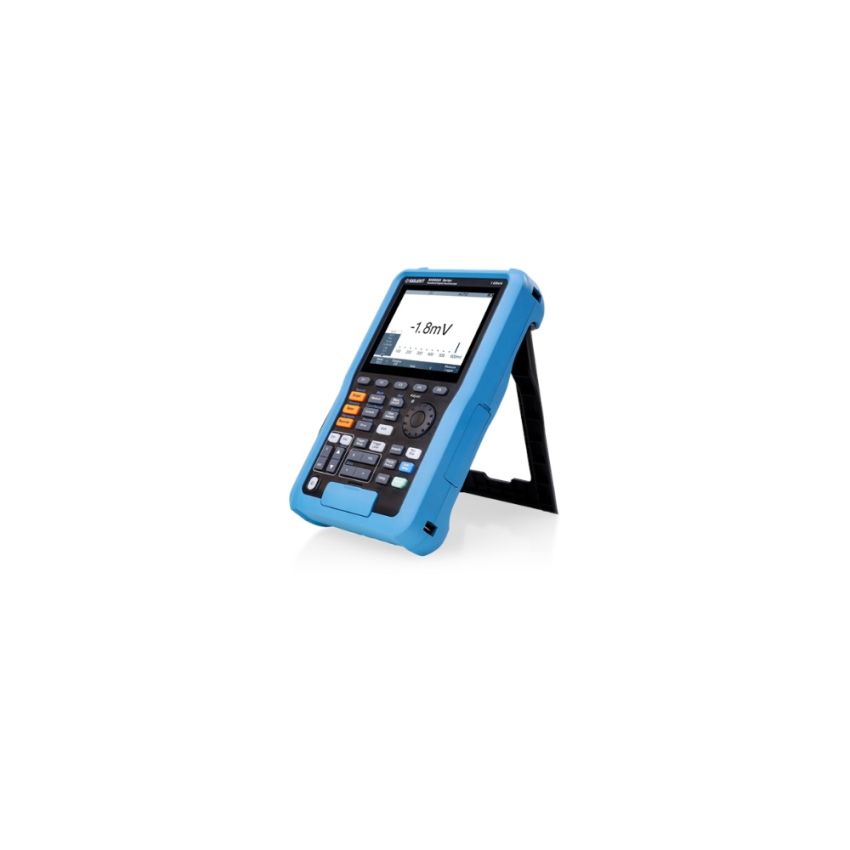

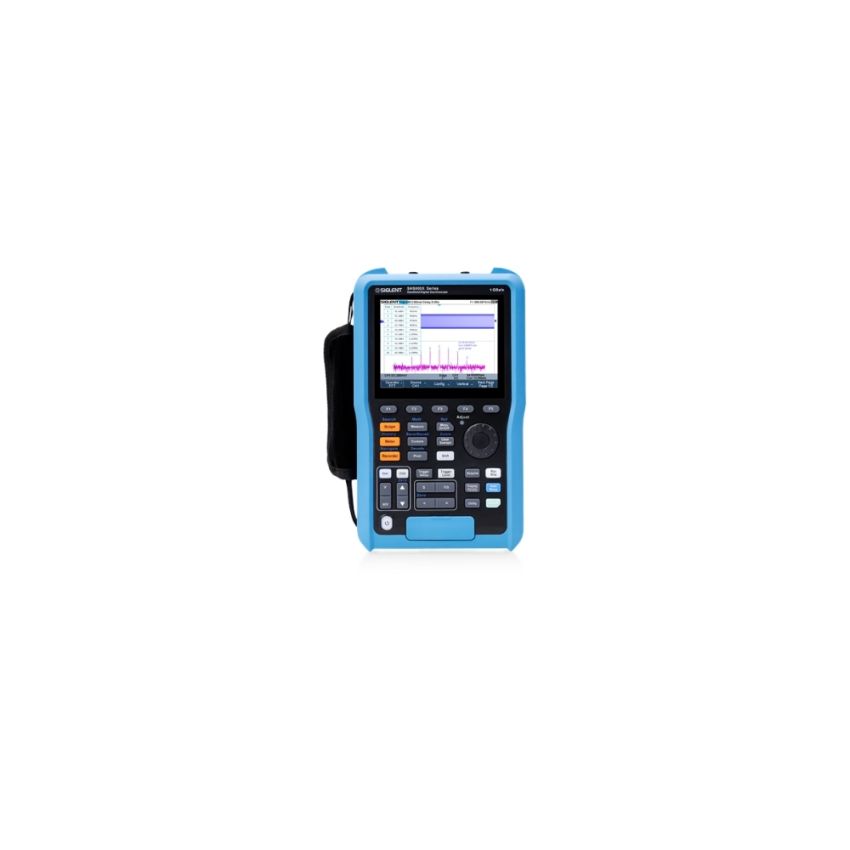

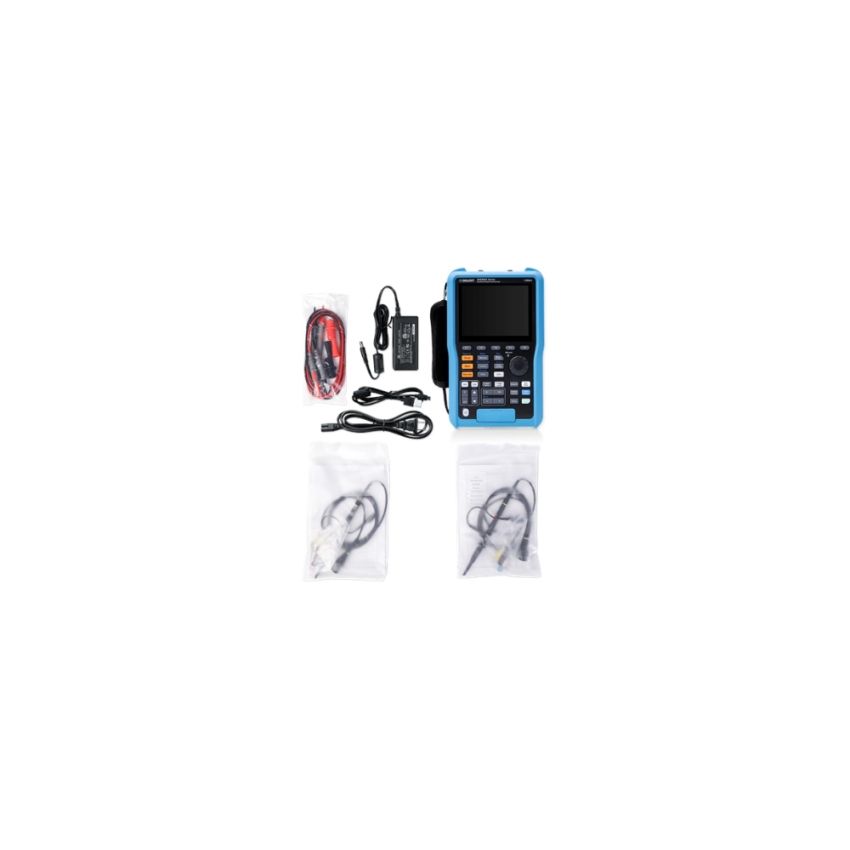

SHS810X, 2 CH Handheld Oscilloscope, 100 MHz Bandwidth

The Siglent SHS810X is a portable, handheld digital oscilloscope designed for precision field and lab diagnostics. Featuring two isolated analog input channels, it supports a 100 MHz bandwidth and real-time sampling rates up to 1 GSa/s for single-channel operation or 500 MSa/s per channel in dual-channel mode. With a maximum memory depth of 12 Mpts in single-channel mode and 6 Mpts per channel in dual-channel mode, this device ensures detailed waveform capture even in complex testing scenarios. Utilizing Siglent’s advanced SPO (Super Phosphor Oscilloscope) technology, the SHS810X achieves waveform capture rates up to 100,000 waveforms per second in normal mode and up to 400,000 waveforms per second in sequence mode. Its vivid 5.6-inch TFT-LCD with 640 × 480 resolution and 256-level intensity grading enables sharp signal visualization under various conditions. The SHS810X also integrates a 6000-count true RMS multimeter with isolated measurement input and supports serial protocol decoding for I2C, SPI, UART, CAN, and LIN. With a rugged IP51-rated enclosure, up to 5.5 hours of battery life, and multiple recording and triggering options, this scope is well-suited for engineers working in demanding environments.

Key Features

• Two isolated analog input channels with 100 MHz bandwidth
• Real-time sampling up to 1 GSa/s (single channel) and 500 MSa/s per channel (dual channel)
• Deep memory depth of 12 Mpts (single channel), 6 Mpts per channel (dual channel)
• High waveform capture rate: up to 100,000 wfms/s (normal) and 400,000 wfms/s (sequence mode)
• 5.6-inch TFT-LCD with 640 × 480 resolution and 256-level intensity grading
• Integrated 6000-count true RMS multimeter with isolated inputs and auto range detection
