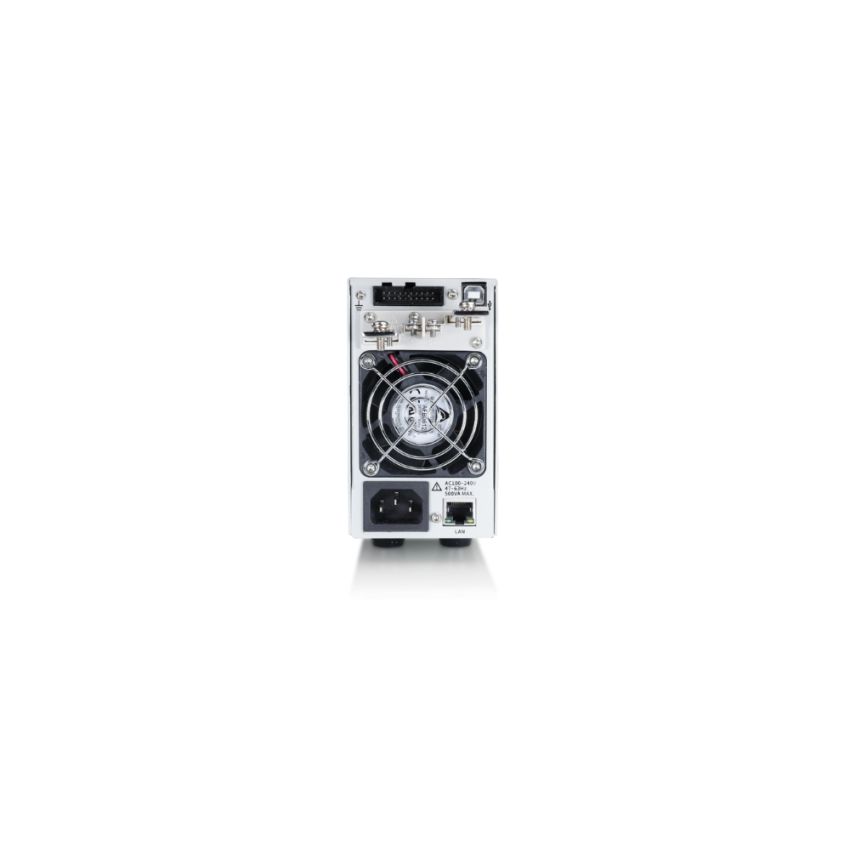

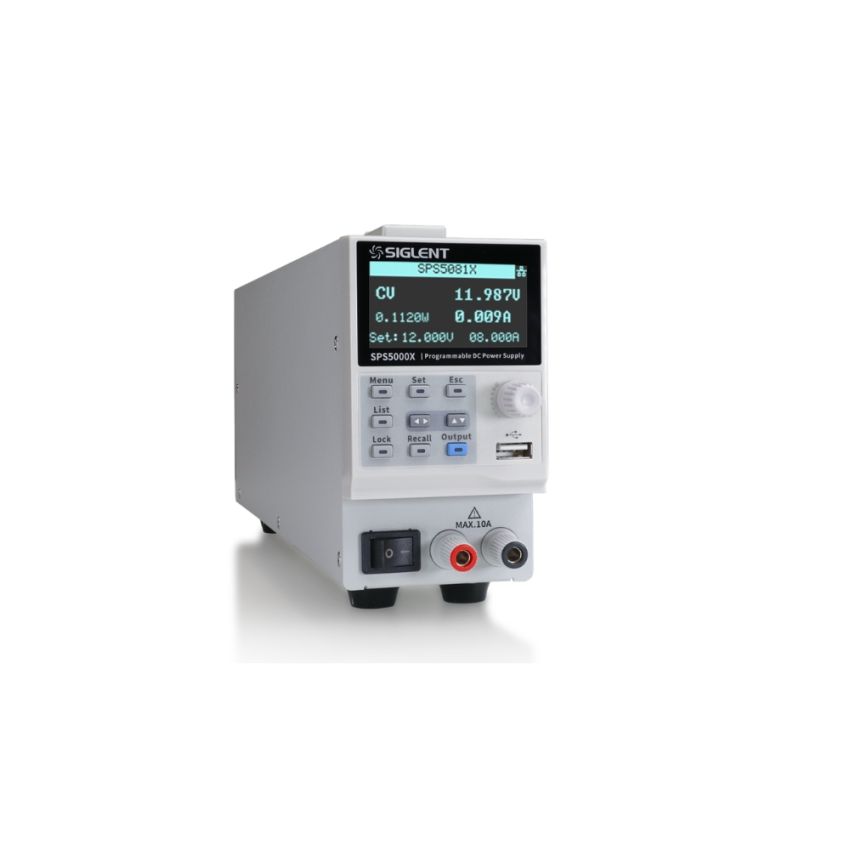

SPS5051X, Single Channel Programmable Switching DC Power Supply, 50 V/10 A, 180 W

The Siglent SPS5051X is a high-performance single-channel programmable switching DC power supply delivering up to 180W of output power. With a maximum voltage of 50V and a maximum current of 10A, this unit offers precise control and high resolution (1mV/1mA), ideal for testing and development environments. It features a 2.4-inch OLED display, remote sensing, list-sequence programming, and multiple protection functions including over-voltage, over-current, over-power, and over-temperature protection. USB and LAN interfaces allow for remote operation and monitoring. Suitable for R&D labs, manufacturing, and educational applications.

Key Features

• Single‑channel programmable power supply with up to 50 V / 10 A and 180 W output.
• High adjustment resolution of 1 mV for voltage and 1 mA for current.
• Fast load transient response with recovery times of less than 1 ms.
• Comprehensive protection features including over‑voltage, over‑current, over‑temperature, and power limit safeguards.
• Multiple remote control options via USB, LAN, analog control, and optional GPIB interface.
• Equipped with a 2.4‑inch OLED display and supports list mode for automated sequences.
