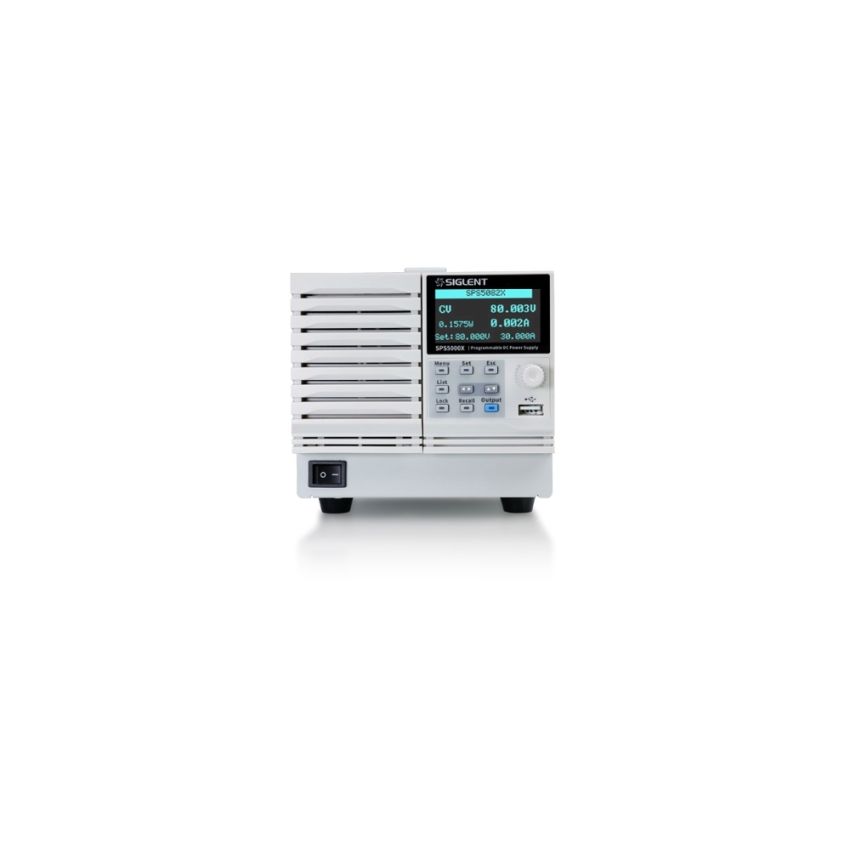

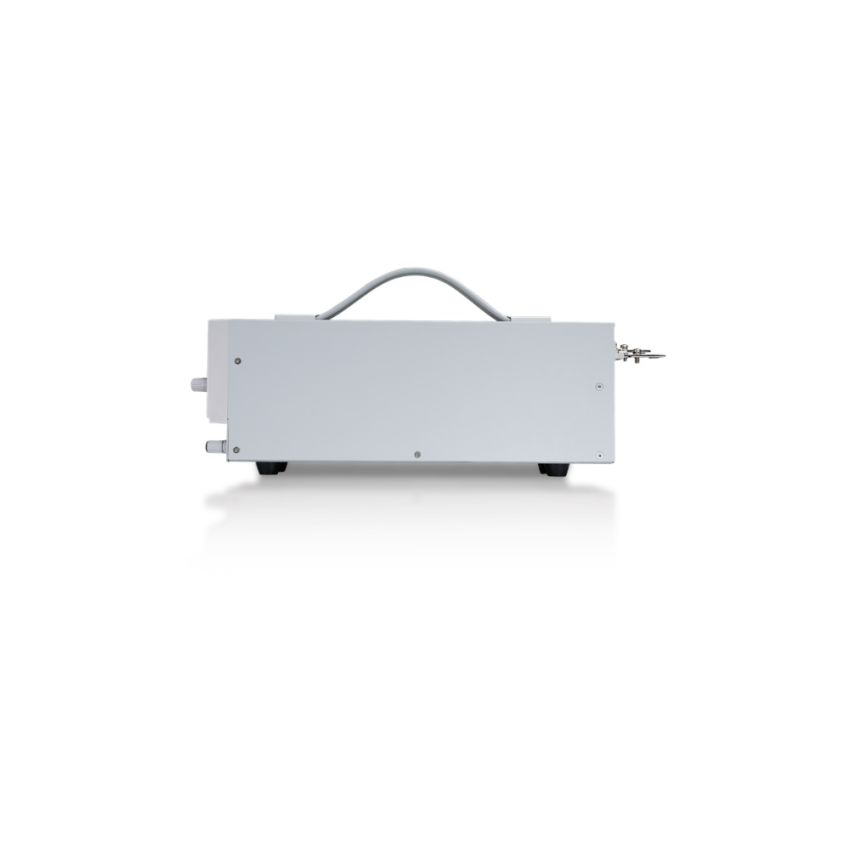

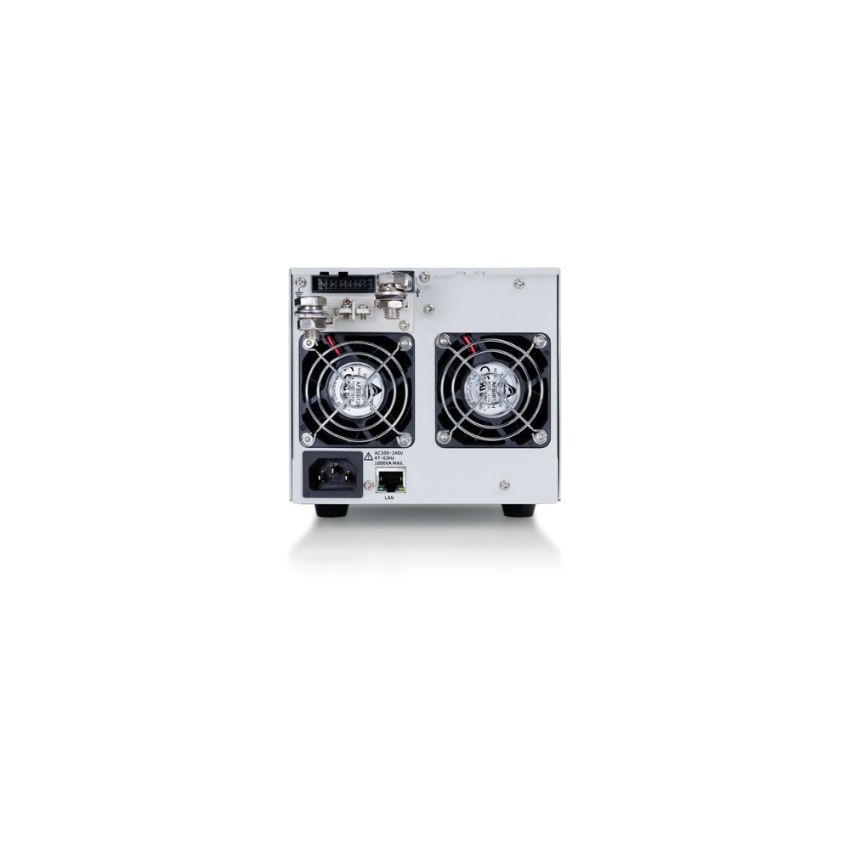

SPS5082X, Dual‑Channel Programmable Switching DC Power Supply, 80 V/40 A Per Channel, 6400 W Total

The Siglent SPS5082X is a robust, dual‑channel switching DC power supply capable of delivering up to 6400 W across two isolated outputs. Each channel supports 0–80 V and up to 40 A. Equipped with a 2.4″ OLED display, the device provides precise real-time monitoring. It supports constant voltage and constant current modes with priority protection, adjustable slew rates, list-sequence programming (up to 50 steps), and remote sensing. Additional features include fast transient response (< 1 ms), programmable operation via USB or LAN (embedded web server), and optional GPIB. Built-in protections guard against over‑voltage, over‑current, over‑power, and over‑temperature conditions, making it ideal for advanced automated testing and industrial environments.

Key Features

• Dual independent channels, each 0–80 V and 0–40 A (3200 W per channel)
• High-resolution programming and readback: 1 mV / 1 mA
• Fast transient recovery (< 1 ms) and adjustable slew rates
• CV/CC priority protection and internal discharge circuits
• List-sequence programming up to 50 steps via front panel or remot
• Remote sensing for precise load voltage control
