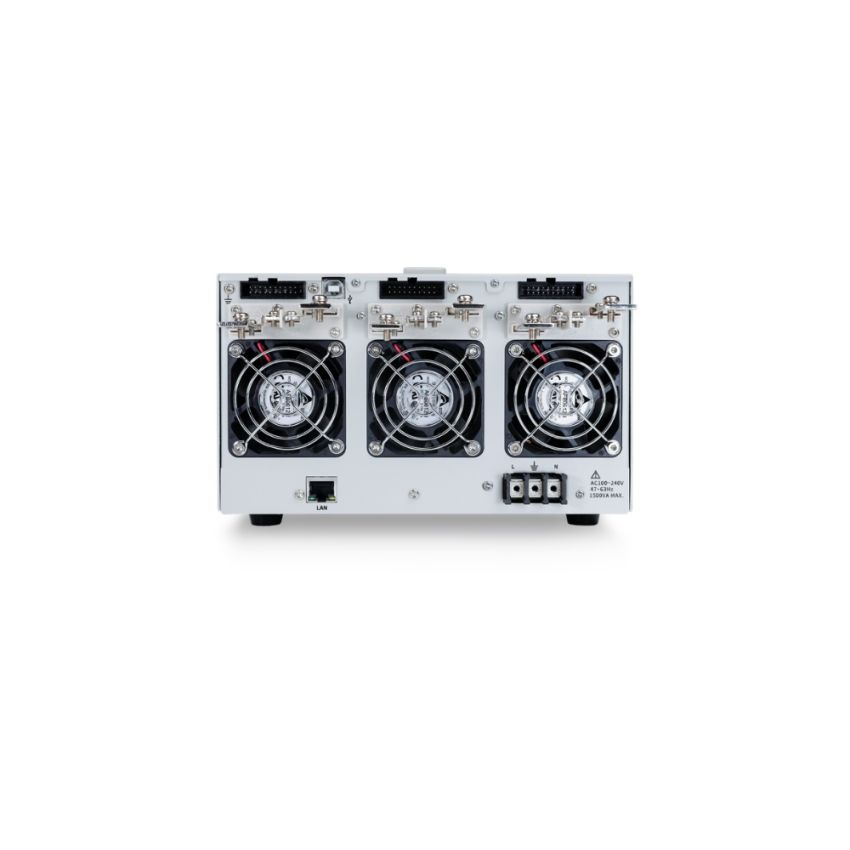

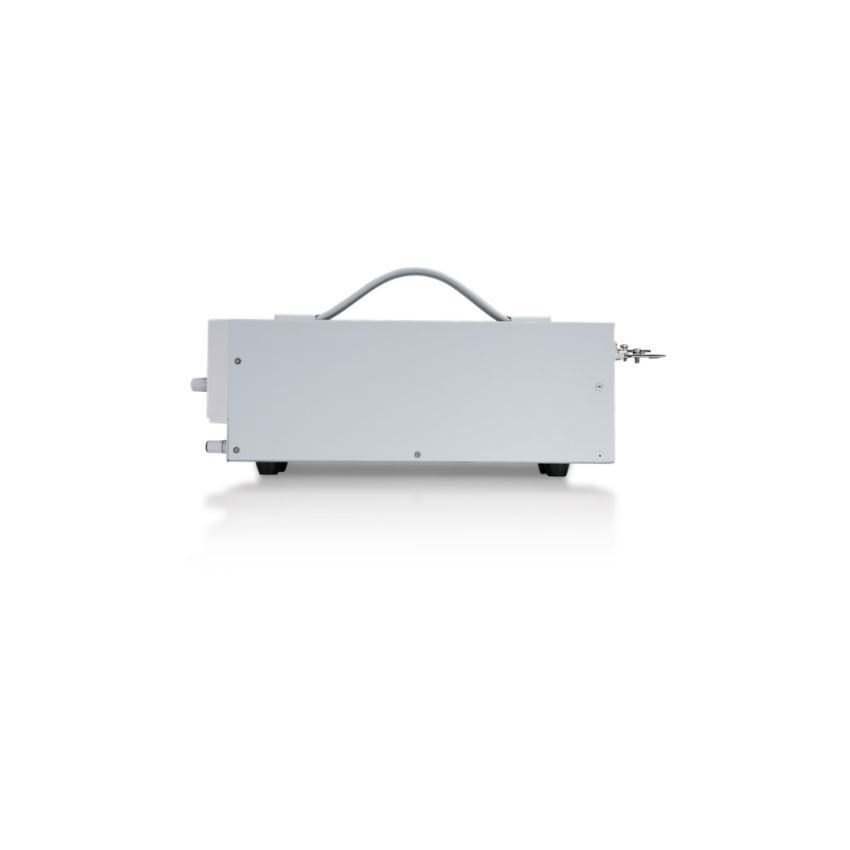

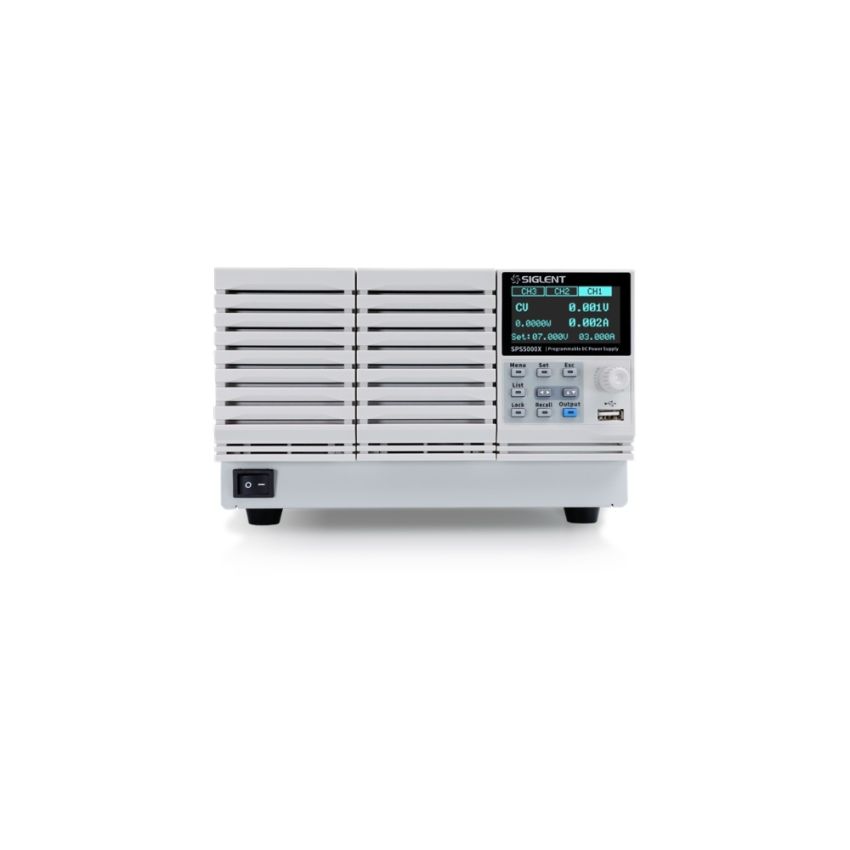

SPS5085X, Triple‑Channel Programmable Switching DC Power Supply, 80 V/15 A per Channel, 1080 W Total

The Siglent SPS5085X is a high-performance, three-channel switching DC power supply, each channel capable of delivering up to 80 V and 15 A, with total output power reaching 1080 W. Its 2.4-inch OLED display with a 170° viewing angle provides real-time control and visibility. It supports constant voltage (CV) and constant current (CC) modes with priority protection, adjustable voltage/current slew rates, list-sequence programming (up to 50 steps), remote sensing, and comprehensive safety protections including over-voltage, over-current, over-power, and over-temperature. Standard interfaces include USB and LAN with embedded web control; optional GPIB is available. Designed for rack-mountable integration, it suits advanced lab, industrial, and automated testing environments.

Key Features

• Three independent channels: each offers 0–80 V / 0–15 A, total 1080 W
• High-resolution programming & readback: 1 mV / 1 mA
• List-sequence programming with up to 50 programmable steps
• Adjustable voltage/current slew rates and fast transient recovery (< 1 ms)
• Remote sensing for precise voltage delivery under load
• Built-in protections: CV/CC priority, OVP, OCP, LPP, OTP, and discharge circuit
