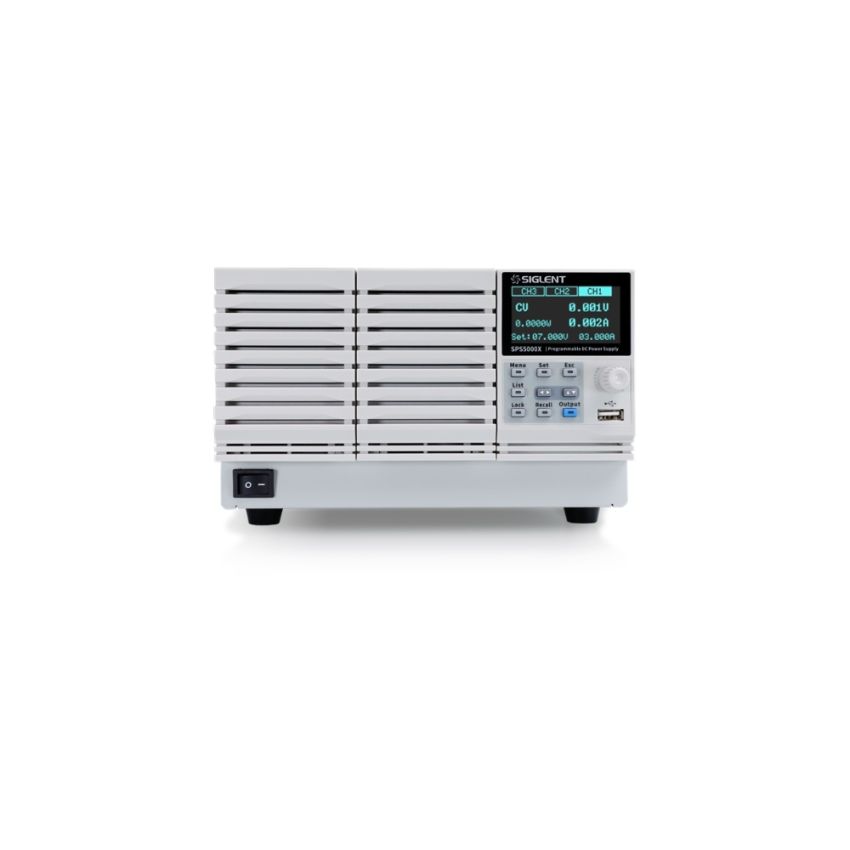

SPS5163X, Single-Channel Programmable Switching DC Power Supply, 160 V/22.5 A, 1080 W

The Siglent SPS5163X is a high-performance, single-channel programmable switching DC power supply designed for precision, reliability, and flexibility. It delivers up to 160 volts and 22.5 amps with a total power output of 1080 watts. Ideal for high-voltage applications in research, development, and production environments, the SPS5163X features advanced functions such as constant voltage (CV) and constant current (CC) modes, a 2.4-inch OLED display, programmable list sequences, and multiple protection mechanisms. The unit supports USB and LAN interfaces for remote control and automation, and its compact design with efficient heat dissipation makes it suitable for both lab and industrial settings.

Key Features

• Powerful single output providing 160 V / 22.5 A, delivering 1080 W total power capacity.
• High resolution control: 1 mV for voltage and 1 mA for current adjustments.
• Rapid voltage response with load recovery in under 1 ms, plus adjustable slew rate.
• Built-in safety functions including OVP, OCP, power limiting, and OTP.
• Advanced sequencing capability with list mode for up to 50 steps and built-in discharge circuit.
• Remote control via USB, LAN, analog, optional GPIB, or embedded webserver—OLED interface enhances usability.
