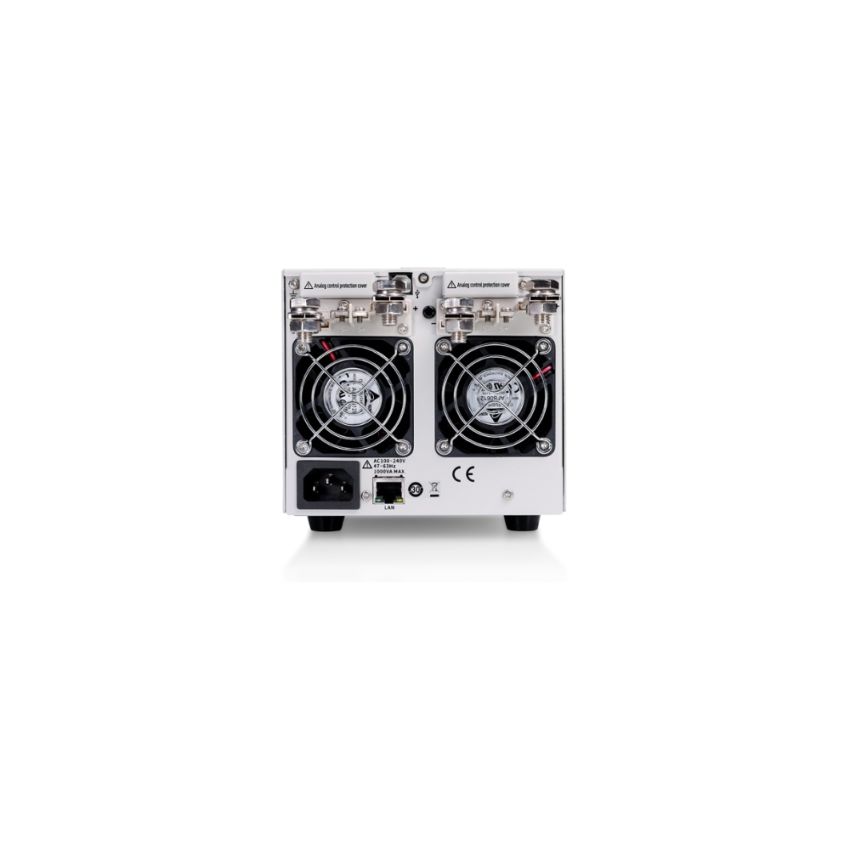

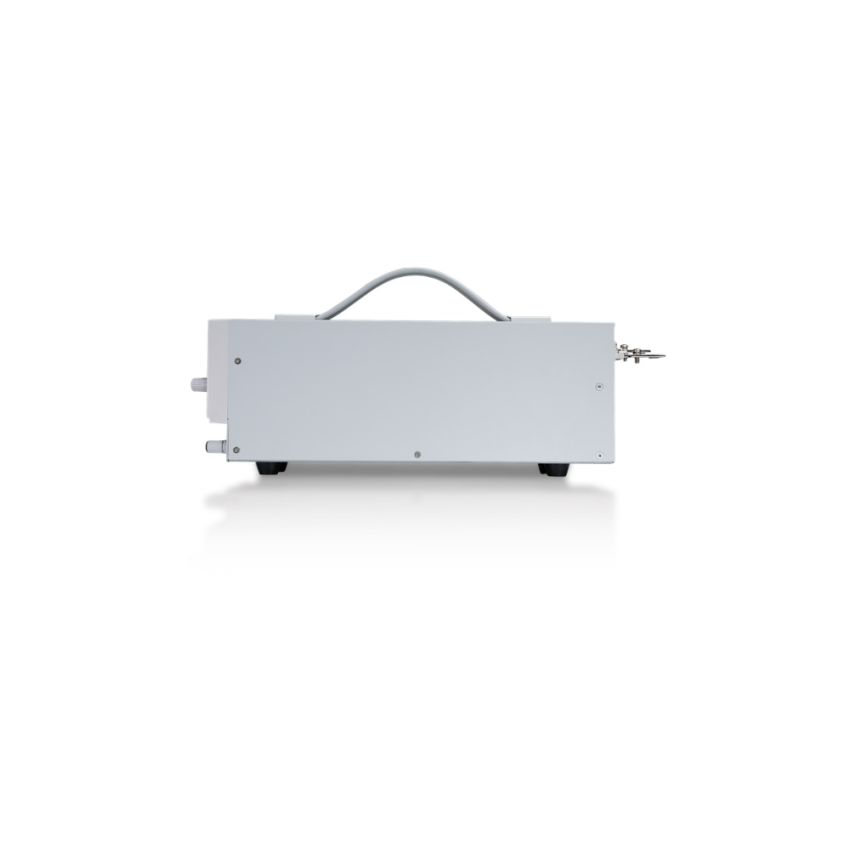

SPS5164X, Dual‑Channel Programmable Switching DC Power Supply, 160 V/7.5 A per Channel, 720 W Total

The Siglent SPS5164X is a high-performance programmable switching DC power supply featuring two isolated channels, each delivering up to 160 V and 7.5 A (360 W per channel, 720 W total). It features a 2.4-inch OLED display with a wide viewing angle and intuitive controls. It supports constant voltage and constant current priority modes, adjustable slew rates, remote sensing, internal discharge, fast transient recovery, and list-sequence programming. With USB, LAN, analog control, optional GPIB, and an embedded web server, it is ideal for laboratory, industrial, R&D, and educational environments. Multiple units can be connected in series or parallel for up to 3240 W and 270 A total output.

Key Features

• Two isolated output channels: 0–160 V, up to 7.5 A each
• Total power output up to 720 W (360 W per channel)
• High-resolution programming and readback: 1 mV/1 mA
• Fast transient response time < 2 ms
• Adjustable slew rate and priority mode settings (CV/CC)
• List mode programming up to 50 steps
