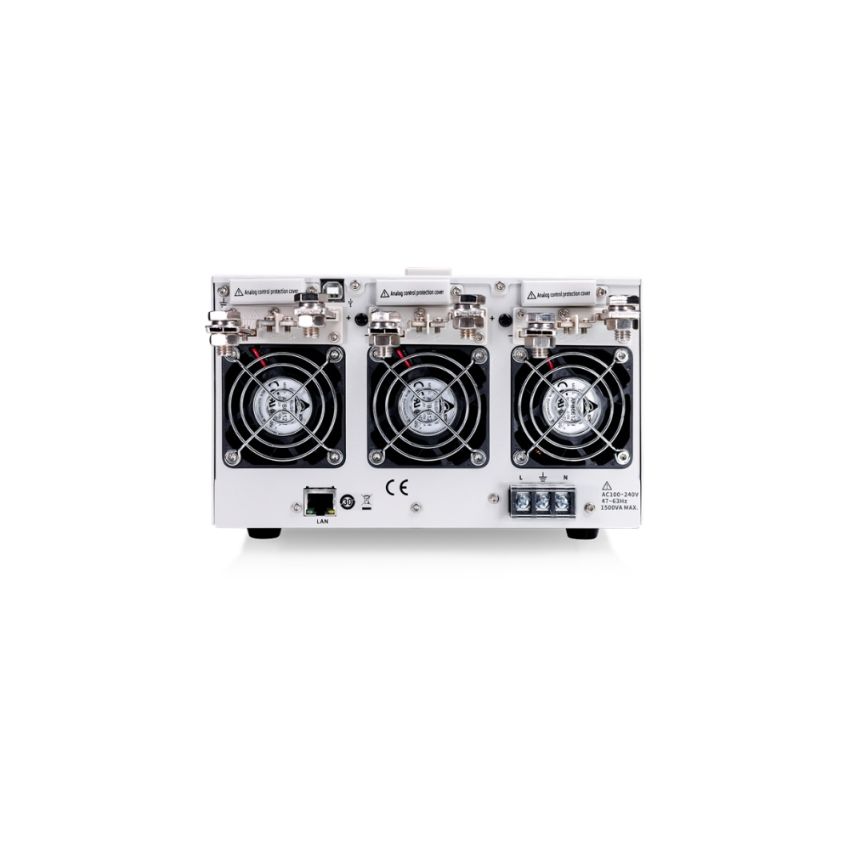

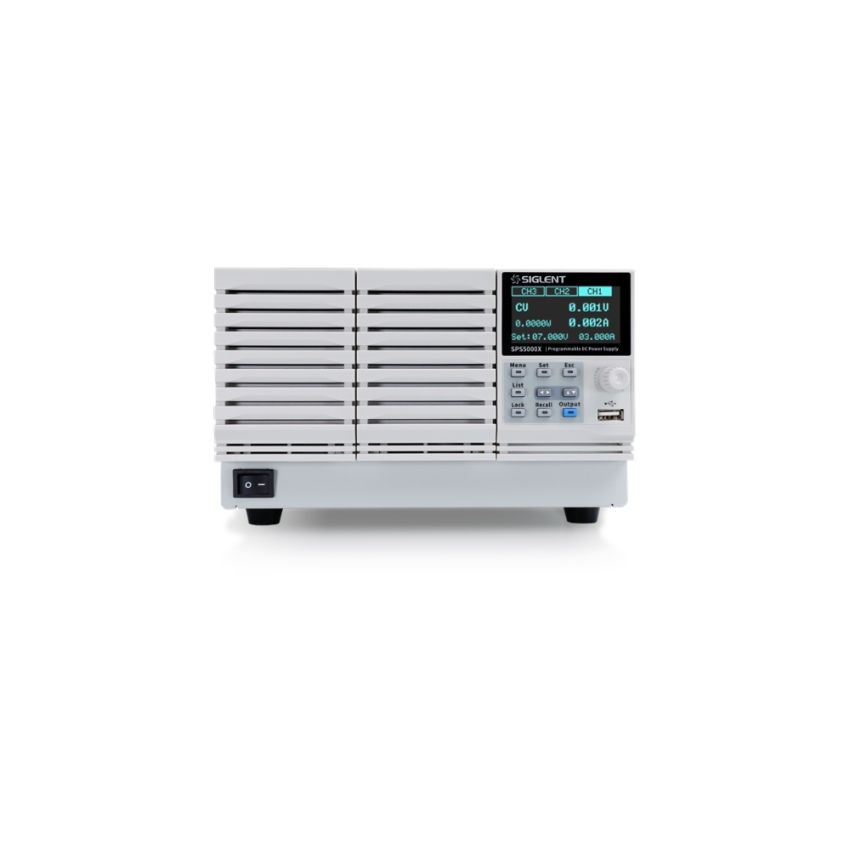

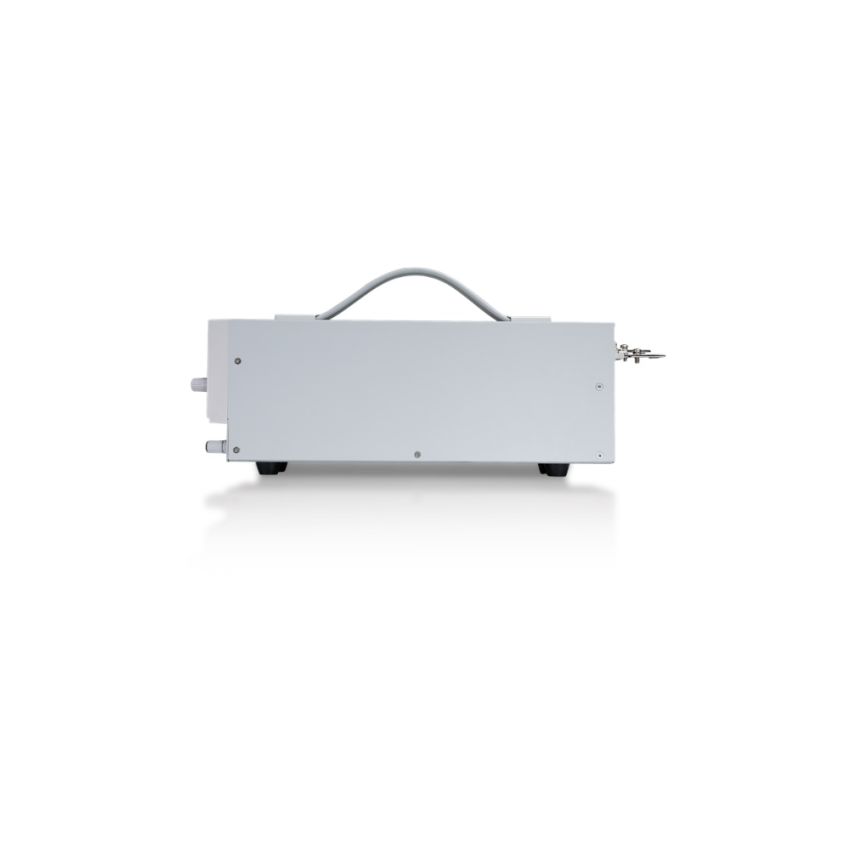

SPS5165X, Triple‑Channel Programmable Switching DC Power Supply, 160 V/7.5 A per Channel, 1080 W Total

The Siglent SPS5165X is a powerful dual‑channel programmable switching DC power supply delivering a combined 1440 W output (720 W per channel). Each channel offers 0–160 V and up to 15 A with constant voltage (CV) and constant current (CC) modes. Featuring a 2.4‑inch OLED display with a wide viewing angle and intuitive menu interface, it supports adjustable slew rates, fast transient response (< 1 ms), programmable list-sequence operation (up to 50 steps), remote sensing, and internal discharge. Comprehensive protections include over-voltage (OVP), over‑current (OCP), over‑power (OPP), and over‑temperature (OTP). Equipped with USB, LAN, analog control, optional GPIB, and embedded web server, it is ideal for lab, industrial, R&D, energy, and educational applications. Multiple units can be stacked in series or parallel for expanded configurations up to 3240 W and 270 A.

Key Features

• Dual isolated channels: 0–160 V, up to 15 A each (1440 W total)
• High-resolution programming and readback: 1 mV / 1 mA
• Fast transient recovery (< 1 ms) with adjustable slew rates
• CV/CC priority modes with internal output discharge
• List-sequence programming up to 50 steps
• Remote sensing to compensate for load cable voltage drop
