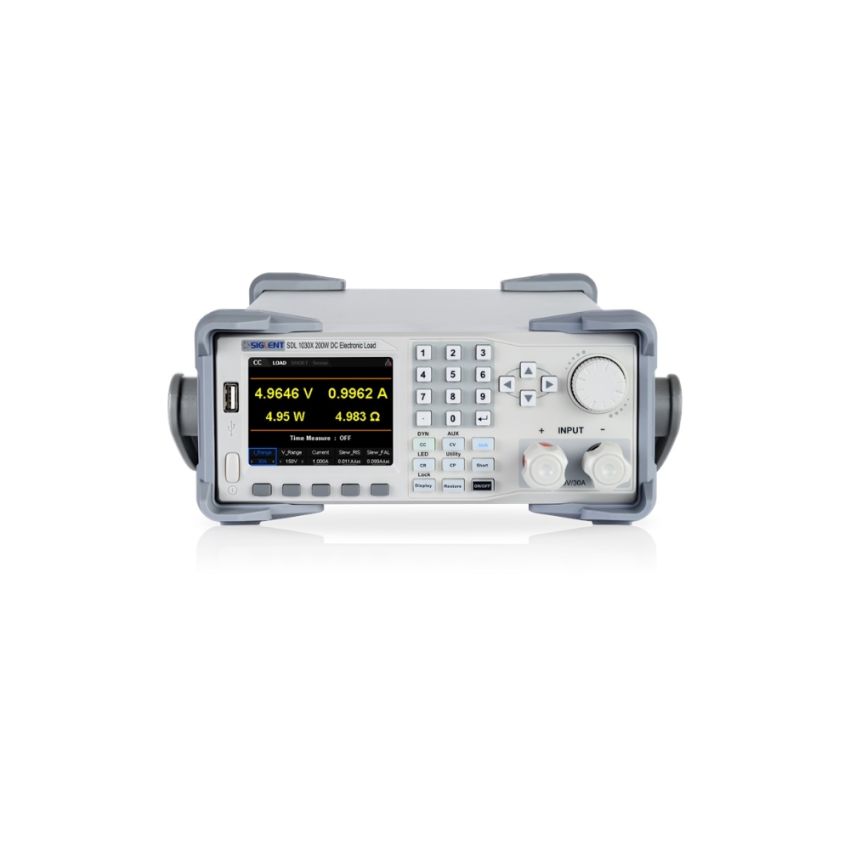

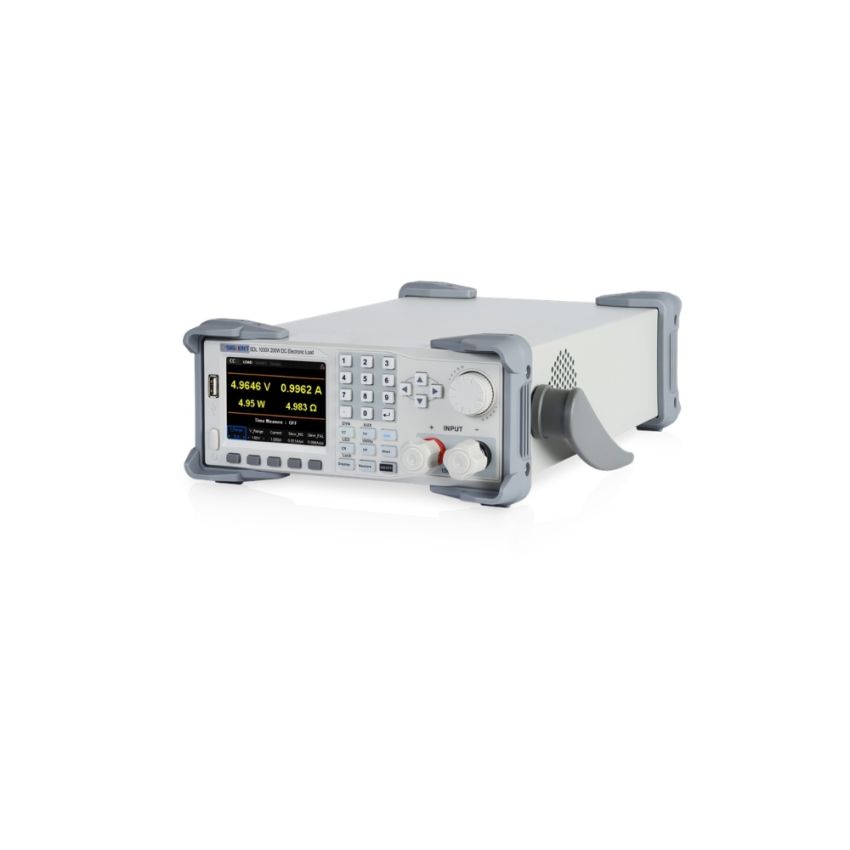

Siglent SDL1030X, Single‑Channel Programmable DC Electronic Load, 150 V / 30 A, 300 W

The Siglent SDL1030X is a high-performance programmable DC electronic load designed for benchtop and automated testing applications. It offers an input voltage range of 0–150 V and a current range of 0–30 A, with a maximum power dissipation of 300 W. It supports four static modes—Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR), and Constant Power (CP)—along with dynamic modes to simulate real-world load conditions. The device features a 3.5-inch TFT-LCD display for clear measurement visualization and supports remote control via RS-232, USB, and LAN interfaces. Comprehensive protection features are included to protect both the device under test and the load.

Key Features

• Single-channel DC electronic load supporting up to 150 V / 30 A (300 W).
• Supports four operating modes: CC, CV, CR, and CP.
• Dynamic load modulation: up to 25 kHz (CC) and 12.5 kHz (CP).
• High readback resolution: 0.1 mV / 0.1 mA with fast slew response up to 2.5 A/µs.
• 3.5‑inch TFT display with waveform trend chart and real-time feedback.

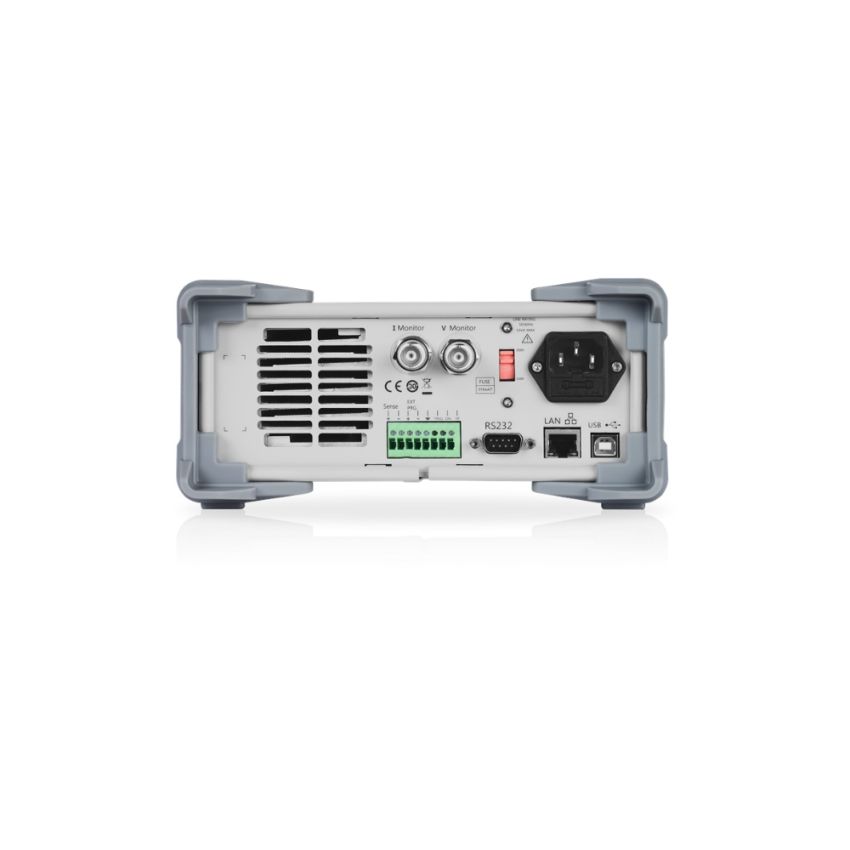

• Extensive protection features and remote control via USB, LAN, RS‑232, or GPIB options.
