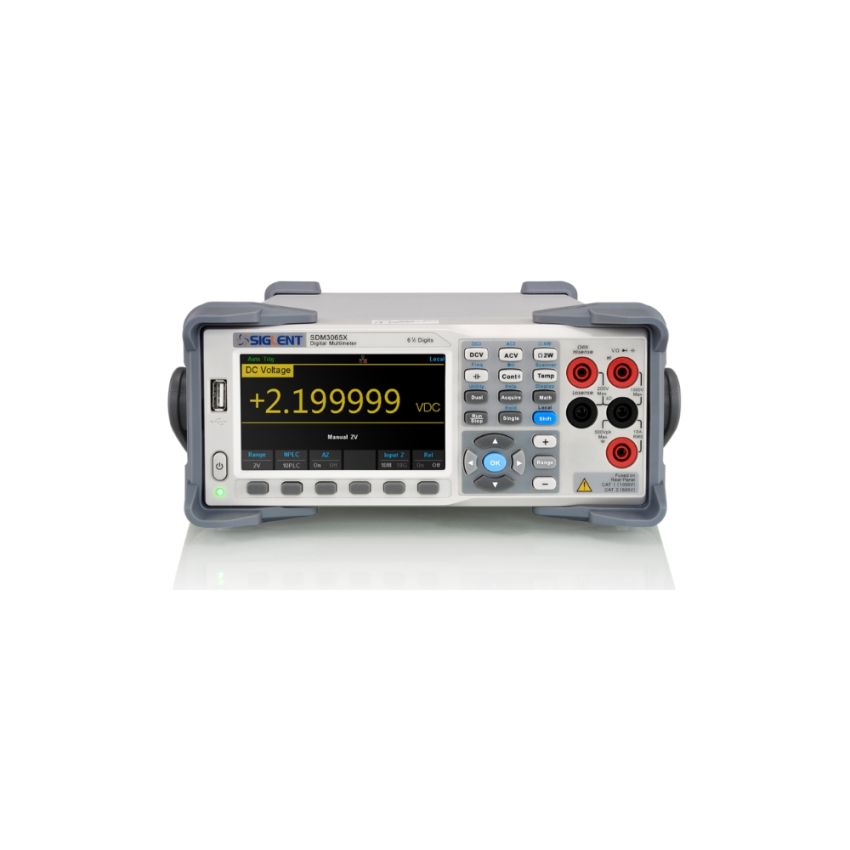

Siglent SDM3065X, 6½‑Digit Dual-Display Digital Multimeter, 10,000 Readings per Second

The Siglent SDM3065X is a high-precision 6½-digit digital multimeter offering a 2,200,000 count resolution and dual-display functionality. Designed for applications requiring high accuracy and multifunctional measurements, it supports a wide range of functions including DC/AC voltage and current, resistance, capacitance, frequency, period, temperature, diode, and continuity tests. The instrument features a 4.3-inch TFT-LCD display and provides measurement speeds of up to 10,000 readings per second. It includes standard interfaces such as USB Device, USB Host, and LAN, with an optional USB-GPIB adapter available. The multimeter also offers 1 GB NAND flash storage for mass storage of configuration files and data files.

Key Features

• High-resolution 6½‑digit bench multimeter with 2,200,000 counts for precise measurements.
• Fast measurement speed with up to 10,000 readings per second for high-efficiency testing.
• True-RMS AC voltage and current measurements ensure accurate dynamic signal analysis.
• Versatile functions including DC/AC voltage, current, resistance, capacitance, frequency, diode, continuity, and temperature.
• Large 4.3-inch TFT-LCD display with dual-screen capability, trend charts, and histogram modes.
• Advanced connectivity with USB, LAN, and optional GPIB interfaces, plus support for remote control via SCPI commands.
