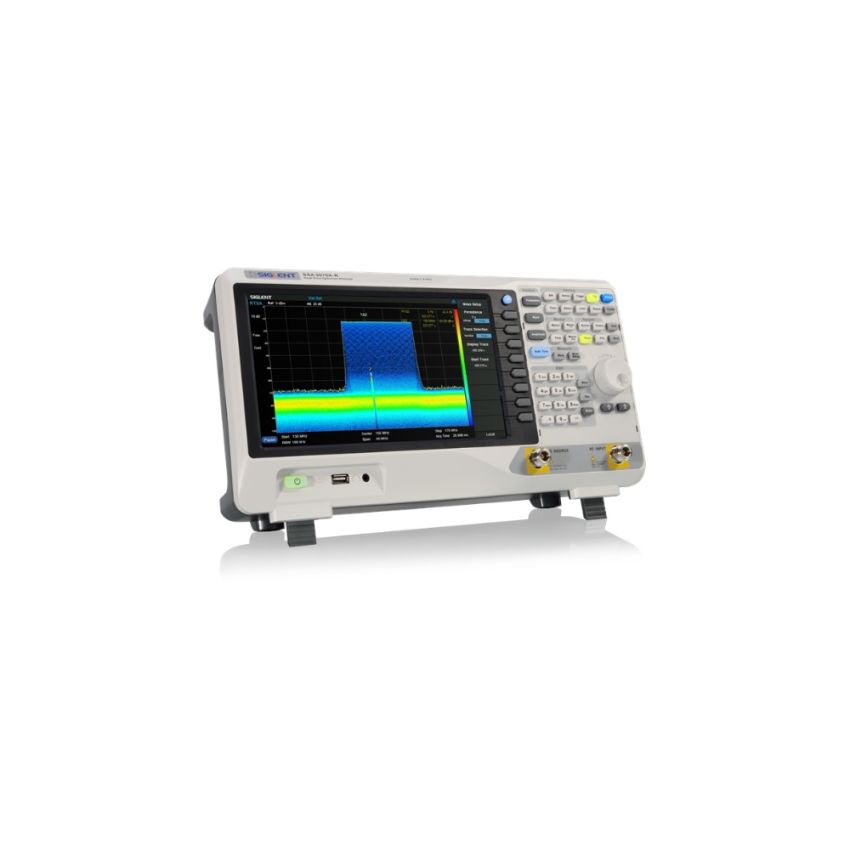

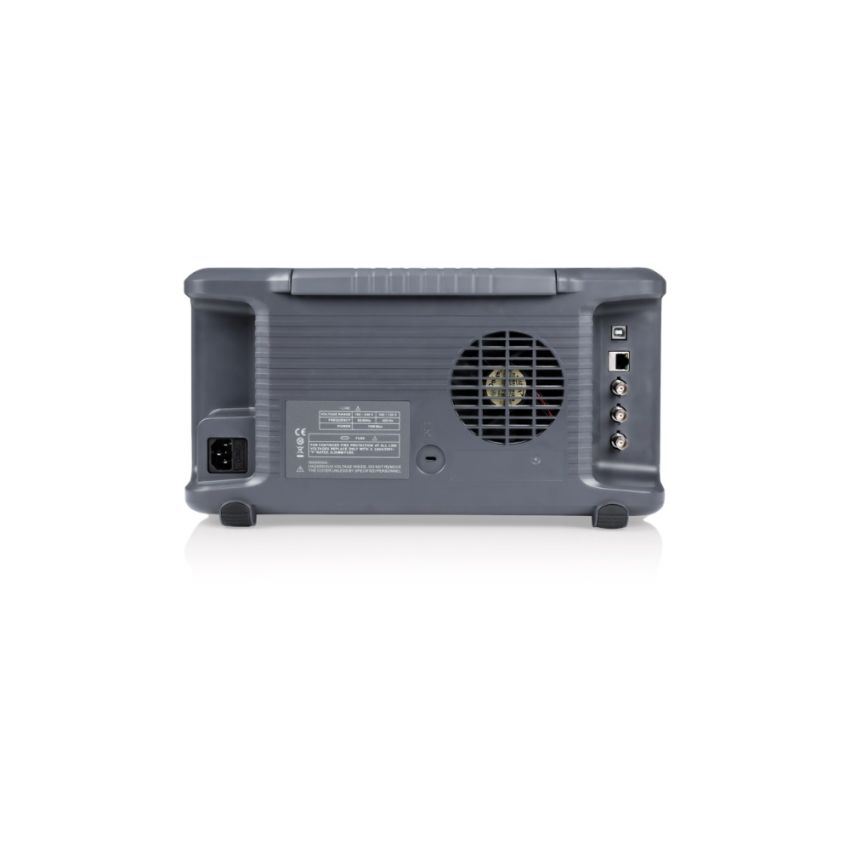

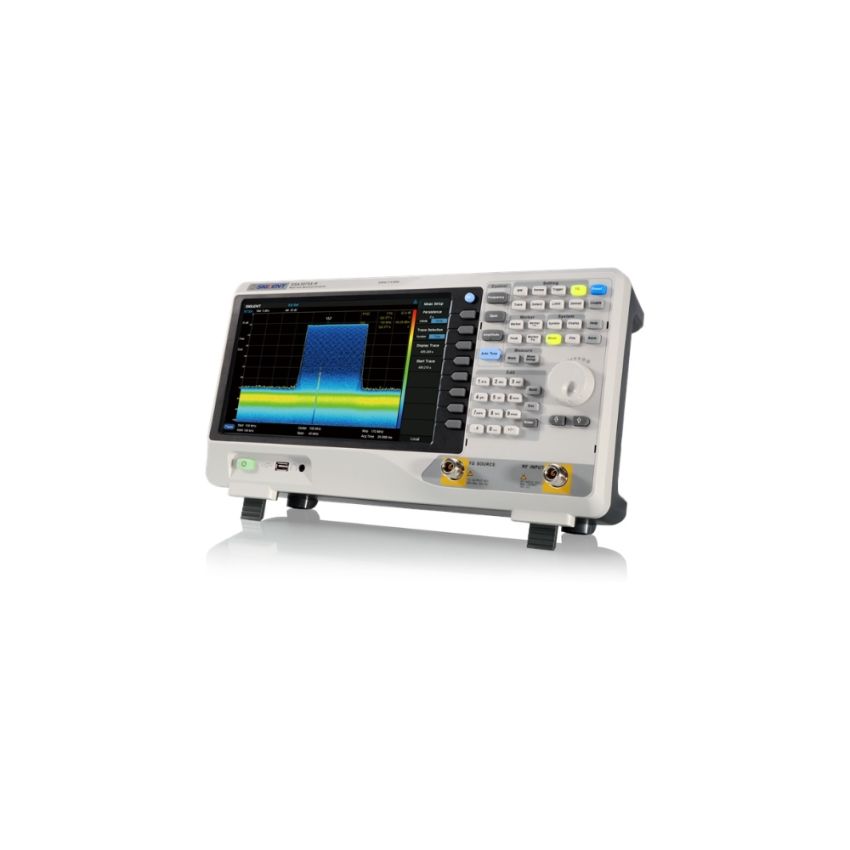

Siglent SSA3050X-R, Real‑Time Spectrum Analyzer, 9 kHz–5 GHz

The Siglent SSA3050X‑R is a versatile real‑time spectrum analyzer offering coverage from 9 kHz to 5 GHz. It delivers a displayed average noise level of –165 dBm/Hz with high phase stability (–98 dBc/Hz at 10 kHz offset, 1 GHz). Featuring a 10.1″ multi‑touch screen with mouse and keyboard support, it provides advanced signal analysis using up to 40 MHz real‑time bandwidth and a 7.2 µs intercept time. Built‑in features include a tracking generator (100 kHz–5 GHz) and preamplifier. Optional software packages enable modulation analysis, EMI measurement, VNA/DTF, and advanced measurement capabilities. Remote operation is supported over LAN, USB, and SCPI.

Key Features

• Frequency range: 9 kHz to 5 GHz
• Displayed average noise level (DANL): –165 dBm/Hz
• Phase noise: ≤ –98 dBc/Hz at 1 GHz, 10 kHz offset
• 1 Hz – 3 MHz resolution bandwidth
• Real‑time analysis bandwidth up to 40 MHz; 100% POI at 7.2 µs
• Standard tracking generator (100 kHz–5 GHz)
