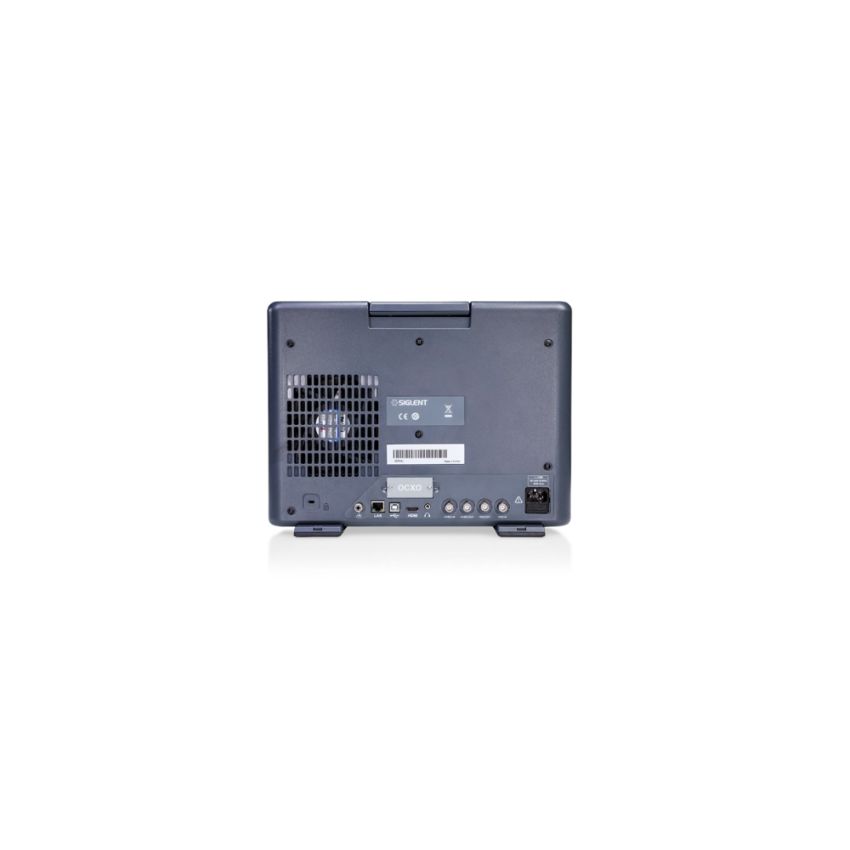

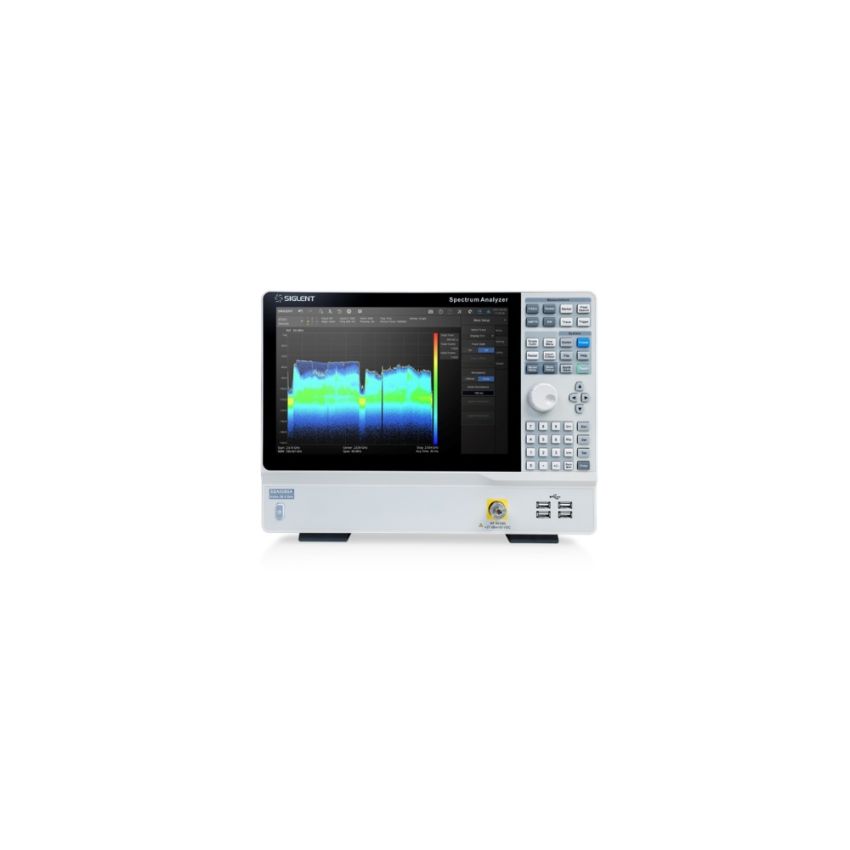

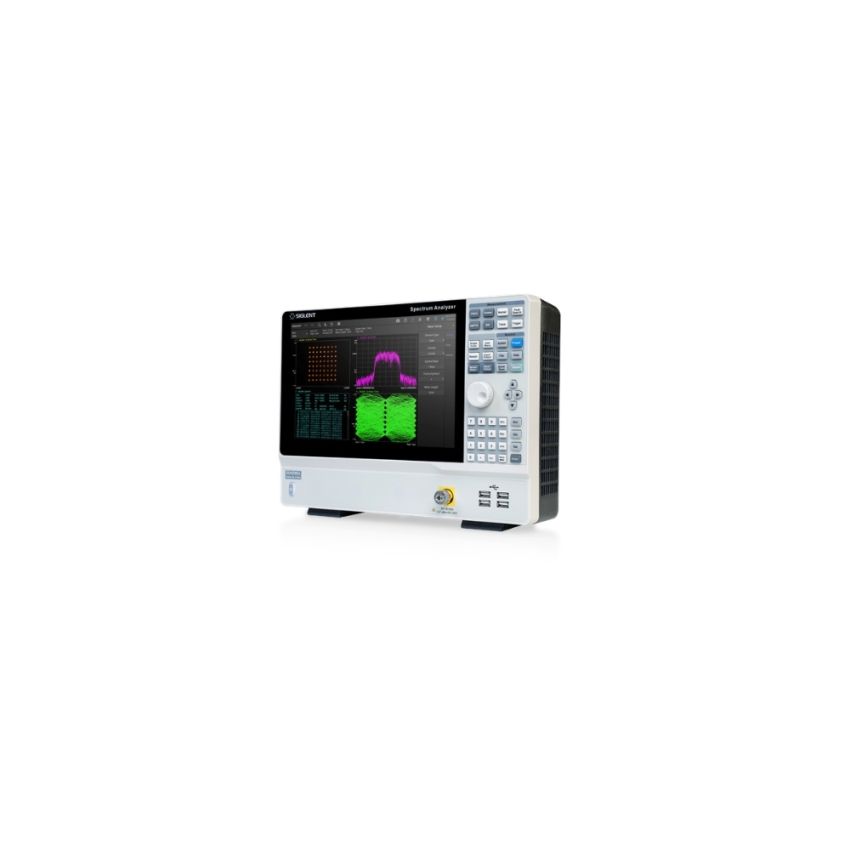

Siglent SSA5083A, 12.1‑Inch Touchscreen Benchtop Spectrum Analyzer, 9 kHz–13.6 GHz

The Siglent SSA5083A is a high-performance benchtop spectrum analyzer featuring a 12.1‑inch multi-touch screen and a frequency range from 9 kHz to 13.6 GHz. It offers a displayed average noise level (DANL) of –165 dBm/Hz, low phase noise (typically –105 dBc/Hz at 1 GHz, 10 kHz offset), and a resolution bandwidth span from 1 Hz to 10 MHz. Designed for advanced RF and wireless analysis, it supports optional real-time spectrum analysis, full vector modulation analysis, and comprehensive measurement functions like channel power, ACPR, occupied bandwidth (OBW), harmonics, TOI, and noise figure analysis. Remote control via LAN or USB and intuitive touchscreen operation make it suitable for R&D, production, maintenance, and broadcast applications.

Key Features

• Frequency range from 9 kHz to 13.6 GHz
• Displayed average noise level of –165 dBm/Hz
• Phase noise typically –105 dBc/Hz @ 1 GHz, 10 kHz offset
• Resolution bandwidth selectable from 1 Hz to 10 MHz
• 12.1″ multi-touch screen with intuitive UI
• Optional real-time spectrum analysis (25 MHz standard, 40 MHz with upgrade)\
