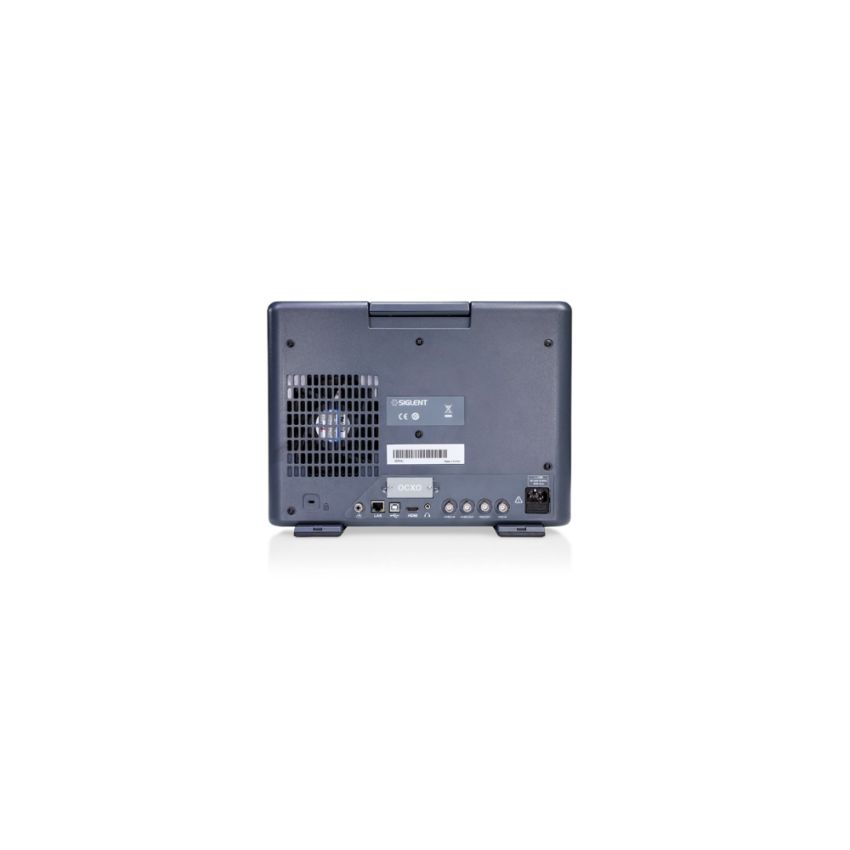

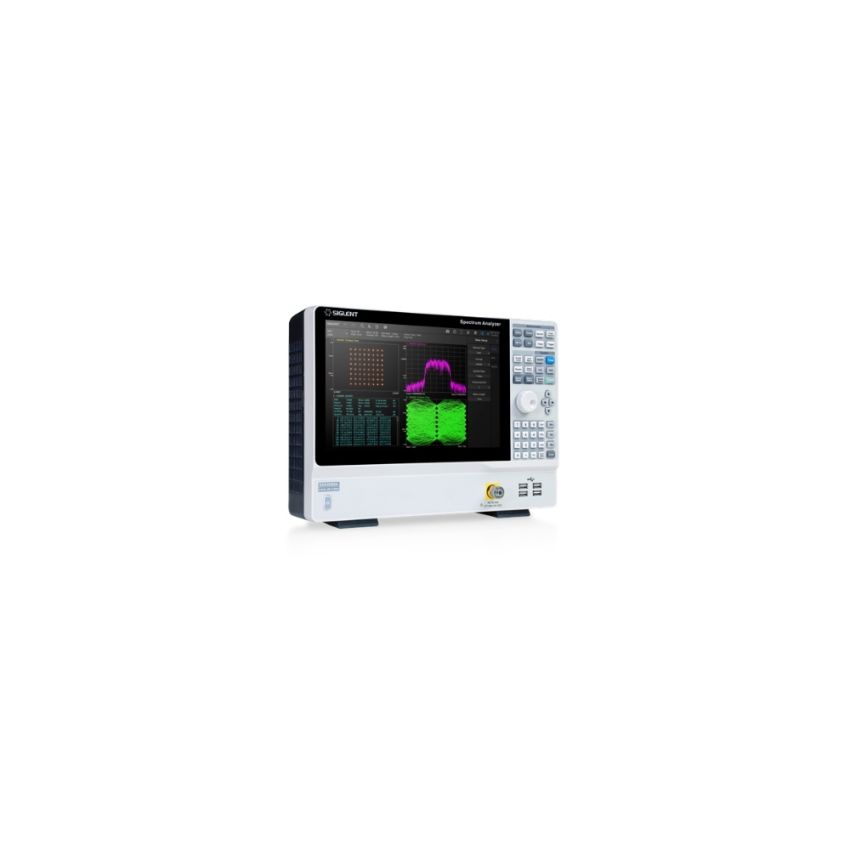

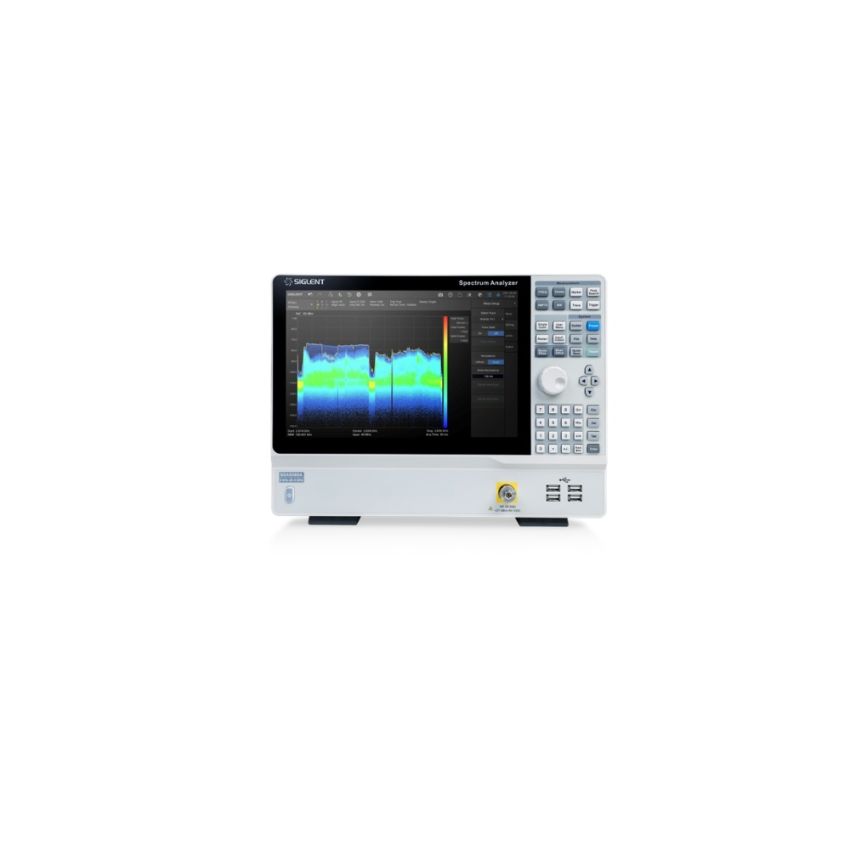

Siglent SSA5085A, Spectrum Analyzer, 9 kHz–26.5 GHz, Multi-Touch 12.1″ Display

The Siglent SSA5085A is a high-performance spectrum analyzer with a frequency range spanning from 9 kHz to 26.5 GHz. It features a large 12.1-inch multi-touch display and supports real-time spectrum analysis with up to 40 MHz of instantaneous bandwidth (with optional upgrade). The instrument offers deep measurement capabilities including channel power, ACPR, OBW, harmonics, TOI, and both analog and vector digital modulation analysis. With a displayed average noise level of –165 dBm/Hz and phase noise of –105 dBc/Hz at 1 GHz (10 kHz offset), it's well-suited for broadcast, communications, IoT, and EMI applications. Remote control is provided via LAN web interface or USB, and the analyzer supports numerous software options through a modular licensing system.

Key Features

• Frequency coverage from 9 kHz to 26.5 GHz
• Displayed average noise level: –165 dBm/Hz (typical)
• Single sideband phase noise: better than –105 dBc/Hz at 1 GHz, 10 kHz offset
• Real-time spectrum analysis: up to 25 MHz standard, 40 MHz with upgrade
• 12.1″ high-resolution multi-touch screen (1200×800 px)
• Supports channel power, ACPR, occupied bandwidth, harmonics, TOI measurements
