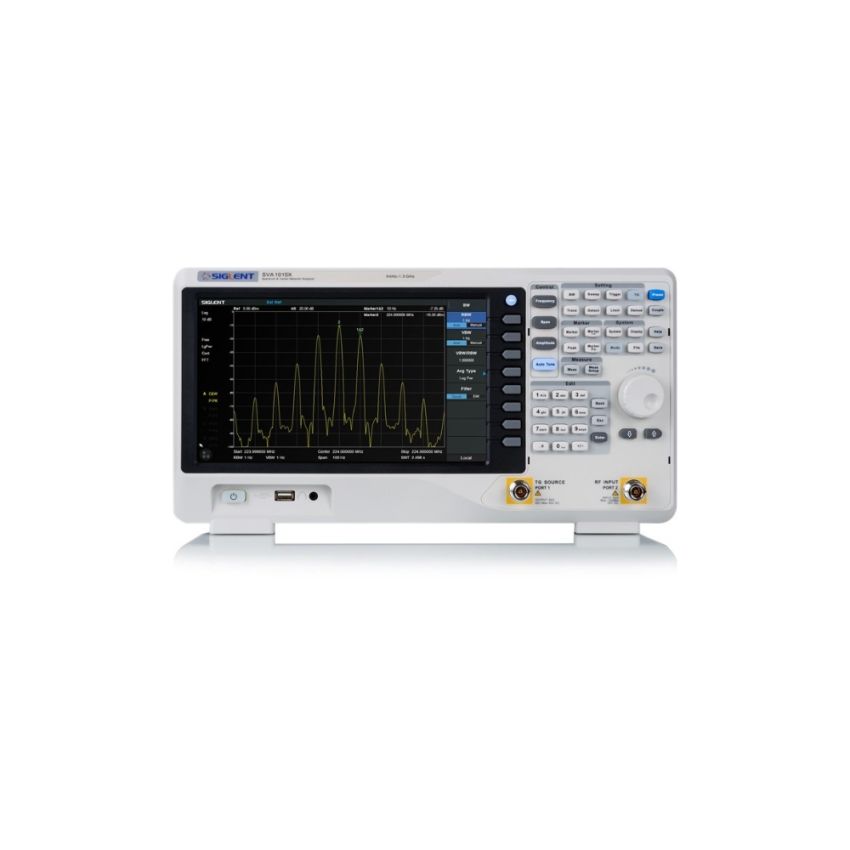

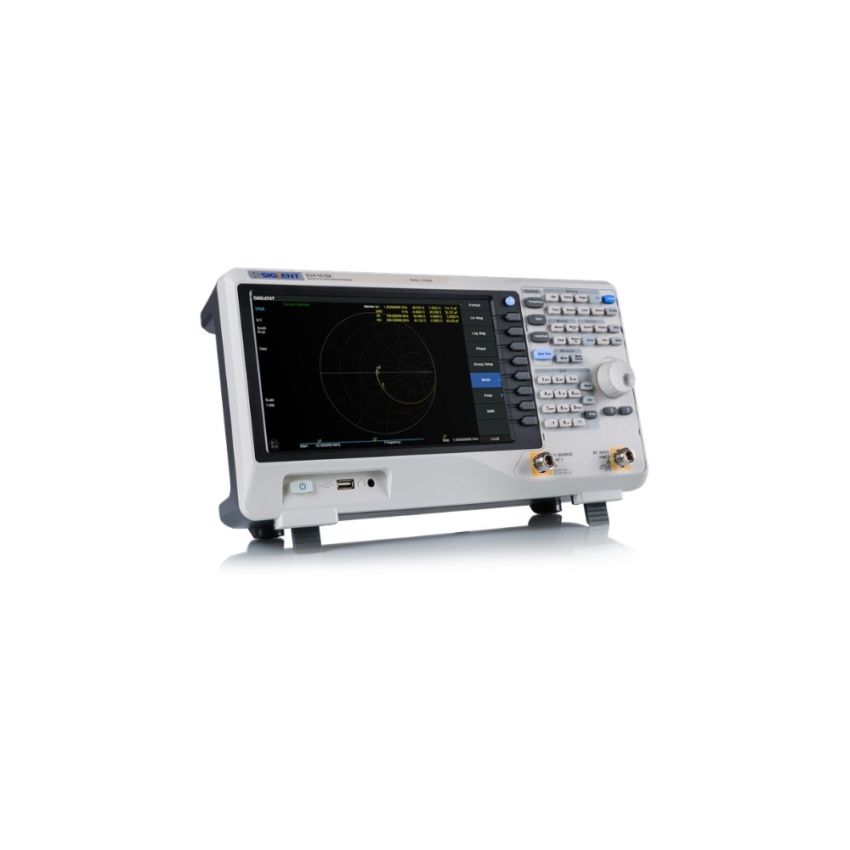

Siglent SVA1015X VNA, Spectrum & Vector Network Analyzer, 9 kHz–1.5 GHz

The Siglent SVA1015X VNA is a dual-function instrument combining a swept super-heterodyne spectrum analyzer (9 kHz–1.5 GHz) and a one-port/vector network analyzer (100 kHz–1.5 GHz), offering versatile measurement capabilities with a tracking generator as standard. Equipped with a 10.1-inch multi-touch display (1024×600), it supports multiple modes including spectrum, VNA (S11/S21), distance-to-fault, modulation analysis, EMI pre-compliance, and advanced measurements via optional kits. Remote control via LAN, USB (Host and Device), USB-GPIB, and SCPI commands enables effective integration into automated setups.

Key Features

• Spectrum analysis from 9 kHz to 1.5 GHz with 1 Hz RBW
• VNA functionality covers 100 kHz to 1.5 GHz (S11/S21)
• Standard preamplifier and tracking generator (5 MHz–1.5 GHz)
• Multi-touch 10.1-inch display (1024×600) with mouse and keyboard support
• Optional kits include distance-to-fault, modulation and EMI pre-compliance analysis
• Remote control via LAN, USB Host/Device, USB-GPIB, SCPI, VXI-11, Telnet, Socket
