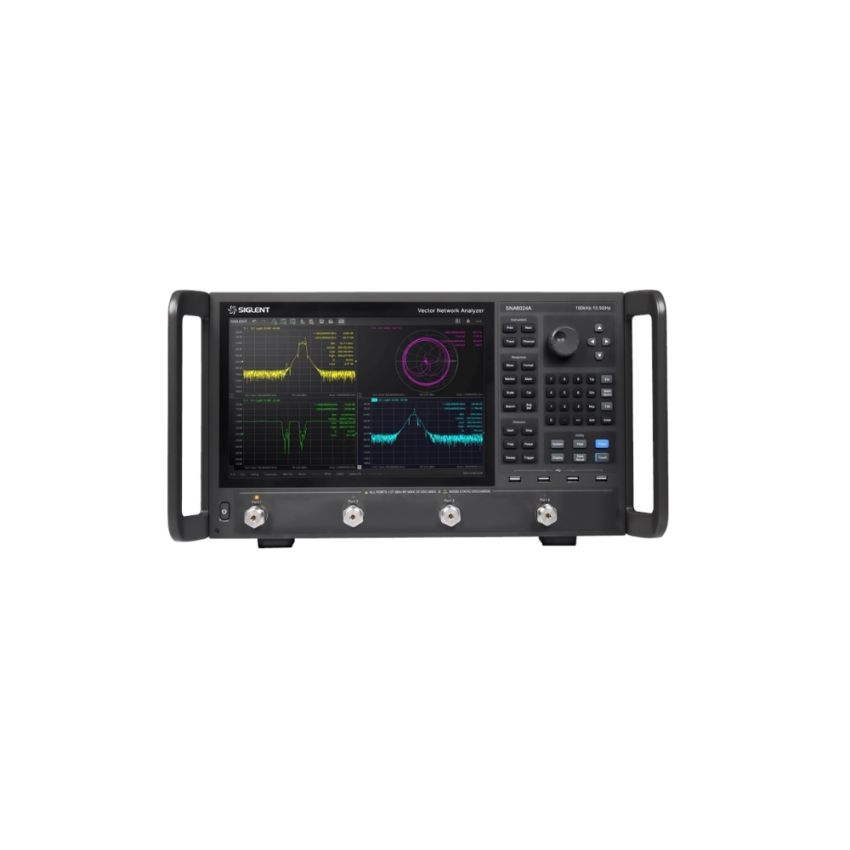

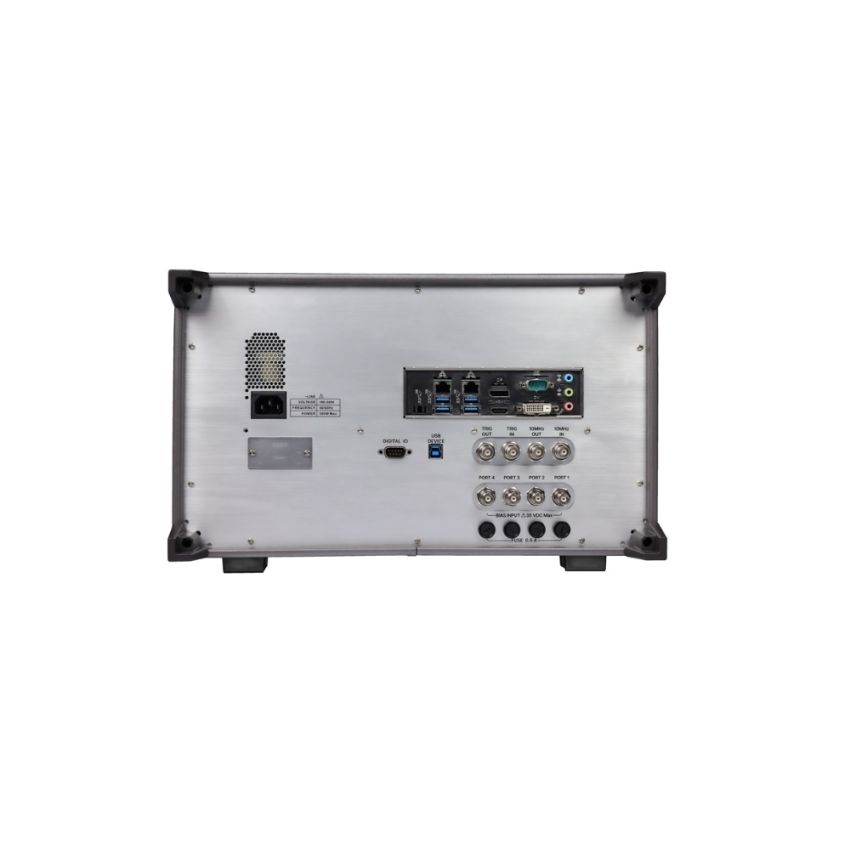

Siglent SNA6024A, 4-Port Vector Network Analyzer, 100 kHz–13.5 GHz

The Siglent SNA6024A is a 4‑port vector network analyzer covering frequencies from 100 kHz to 13.5 GHz. Designed for tasks such as filter characterization, impedance conversion, fixture simulation, limit testing, and ripple analysis, it supports 5 sweep modes (linear, log‑frequency, power‑sweep, CW‑time, segment‑sweep) and includes calibration methods like SOLT, SOLR, TRL, and Enhanced Response. The analyzer features a high-dynamic-range (135 dB), high‑resolution (0.05 dB, 1 Hz) measurement engine and a large 12.1‑inch touchscreen display. USB and LAN connectivity, plus SCPI control and optional GPIB, enable automation and remote access via web or VNC.

Key Features

• Dual functionality—incorporates both Spectrum Analyzer (9 kHz–7.5 GHz) and VNA (100 kHz–7.5 GHz).
• Built-in tracking generator and preamplifier included as standard.
• Exceptional sensitivity: DANL approx. –165 dBm/Hz and phase noise < –98 dBc/Hz @ 1 GHz (10 kHz offset).
• High measurement fidelity with ±0.7 dB amplitude accuracy.
• Extremely flexible RBW from 1 Hz to 3 MHz.
• Easy operation via 10.1″ multi-touch display, plus mouse/keyboard and remote SCPI/LAN control.
