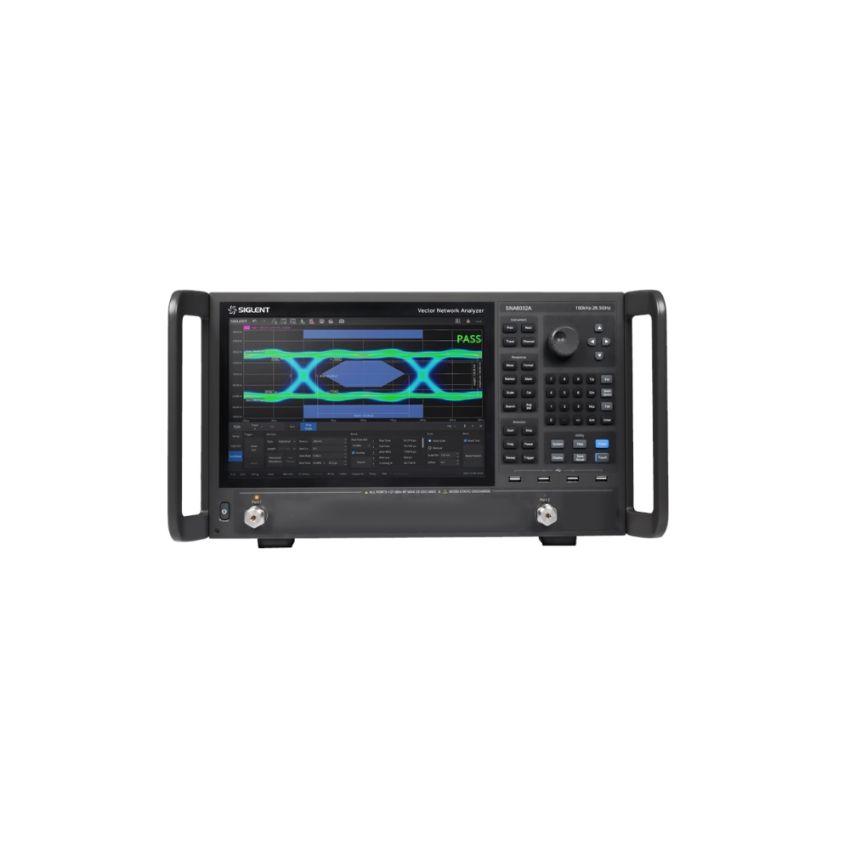

Siglent SNA6032A, 2‑Port Vector Network Analyzer, 100 kHz–26.5 GHz
Delivery in 2 Weeks.
AED 191,659.73
Pre-Order
Only 1 left
Guarantee safe & secure checkout
The Siglent SNA6032A is a high-performance 2-port vector network analyzer covering a frequency range from 100 kHz to 26.5 GHz. Featuring a 12.1‑inch color touchscreen and a dynamic range of approximately 135 dB, it supports a wide variety of measurement modes, including S‑parameters, differential measurements, time-domain analysis, limit/ripple testing, fixture simulation, impedance conversion and adapter de-embedding. The analyzer offers flexible sweep types, comprehensive calibration options, and full remote control capabilities, making it ideal for research, development, manufacturing, and educational use.
Key Features
- Wide frequency coverage: 100 kHz to 26.5 GHz enabling comprehensive microwave testing.
- High dynamic range of 135 dB ensures sensitivity in complex signal environments.
- Frequency resolution down to 1 Hz and level resolution of 0.05 dB for precise measurements.
- Multiple calibration techniques supported: SOLT, Enhanced Response, TRL, and more.
- Rich display and interface: 12.1″ touchscreen, multi-window support, DVI/HDMI output, and comparison tool via data-hold.
- Advanced measurement modes including time-domain analysis, adapter compensation, and ripple tracking.
| Display | 12.1‑inch touch |
|---|---|
| Frequency range | 100 kHz–26.5 GHz |
| Modes | S‑parameter (S11/S21/S12/S22), differential, time-domain (TDR), limit and ripple tests, |
| Auto Range | Automatic power and IF bandwidth selection |
