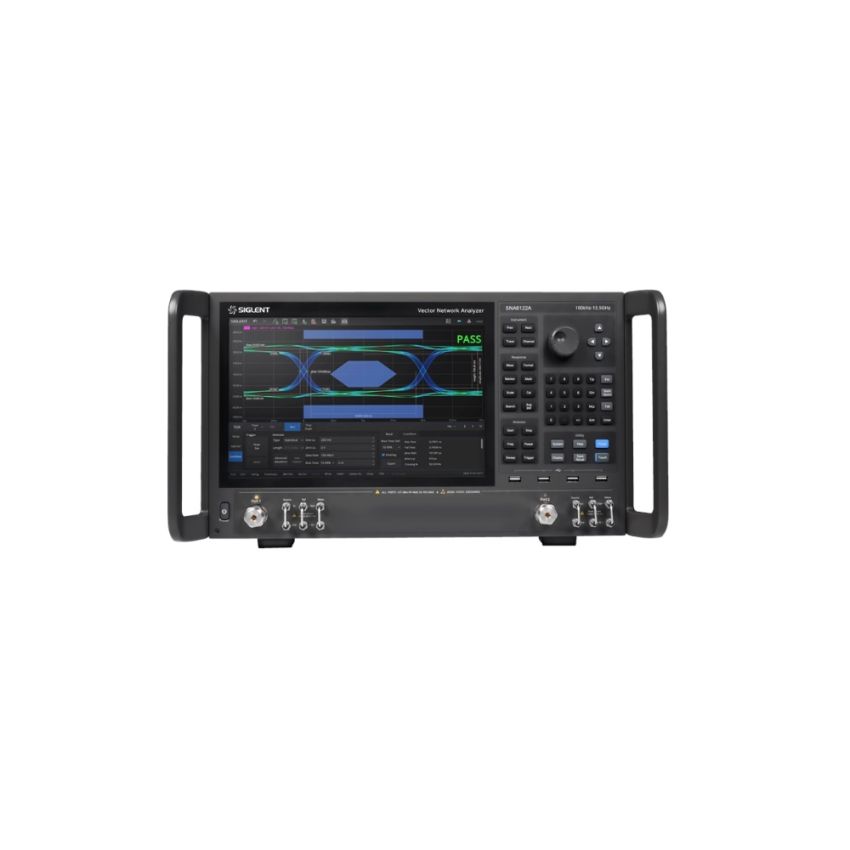

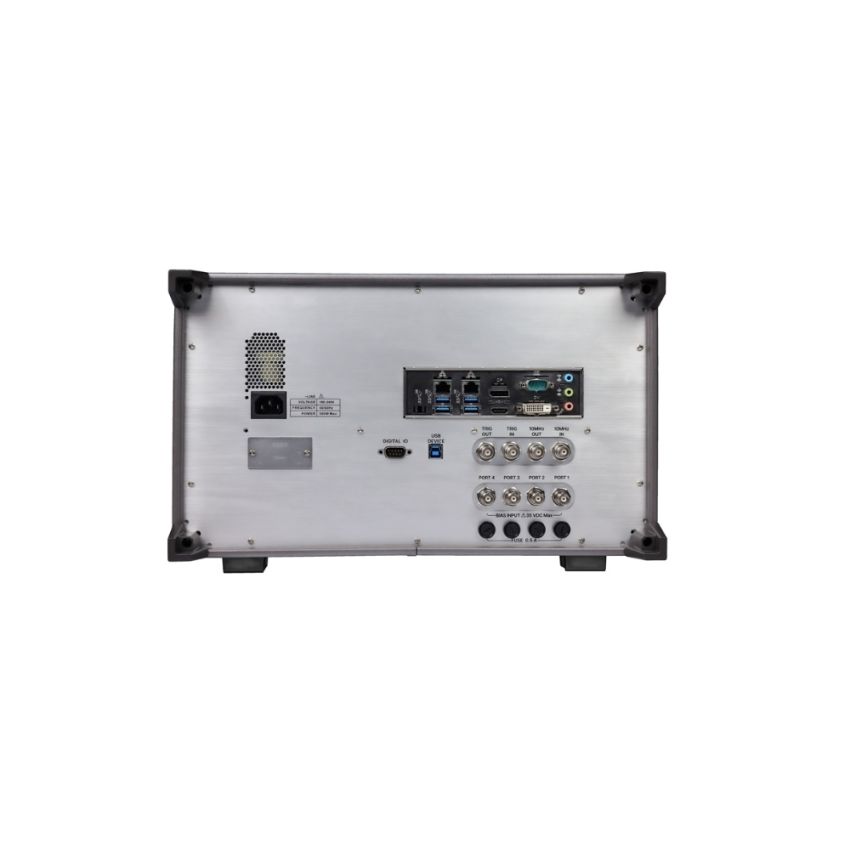

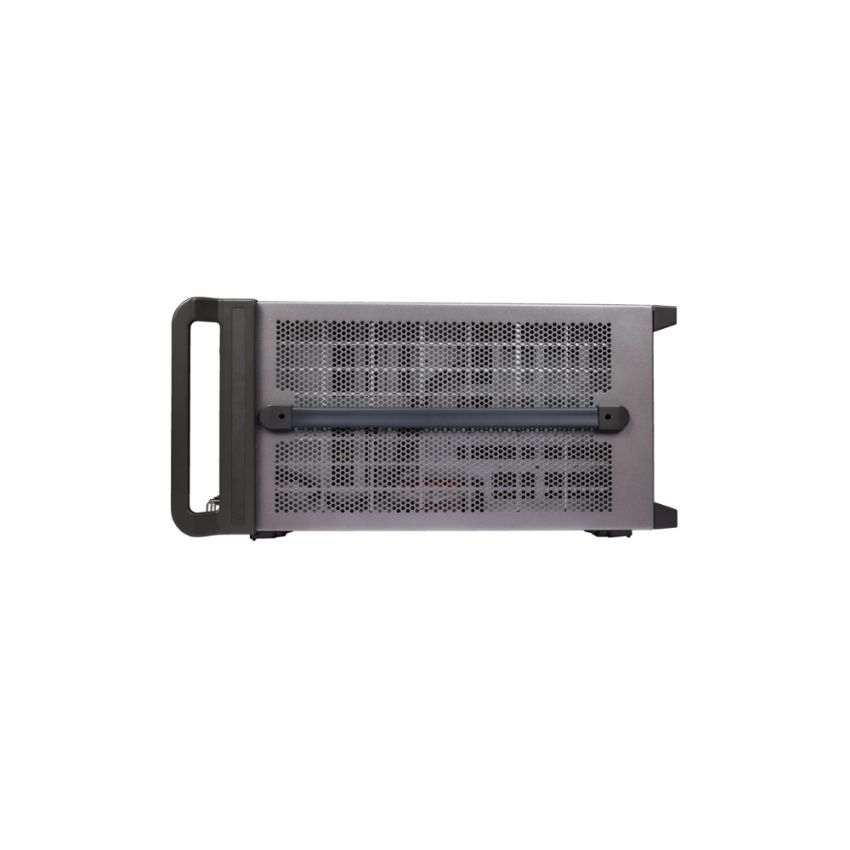

Siglent SNA6122A, 2‑Port Vector Network Analyzer, 100 kHz–13.5 GHz

The Siglent SNA6122A is a high-performance 2-port vector network analyzer from the SNA6000A series. It operates across 100 kHz to 13.5 GHz, offering a wide dynamic range and versatile measurement features. Users benefit from a large 12.1‑inch touch display with front-panel jumper configuration, simplified calibration, and support for scattering parameter correction (SOLT, TRL, response, enhanced response). It excels in testing filters, cables, mixers, amplifiers, and receivers, with advanced sweep modes and remote control over SCPI, LAN, USB, and GPIB.

Key Features

• Covers 100 kHz to 13.5 GHz frequency range, featuring direct receiver access for improved performance.
• High dynamic range of 135 dB allows accurate measurement of low-loss filters and high attenuations.
• Exceptional resolution: 1 Hz frequency resolution, 0.05 dB level resolution.
• Supports advanced calibration types: SOLT, SOLR, TRL, Response, and Enhanced Response.
• Rich multi-window interface via 12.1″ touchscreen, HDMI/DVI/DP video output, and memory compare features.
• Supports diverse measurement functions: time-domain analysis, limit/ripple tests, fixture simulation, impedance conversion, and more.
