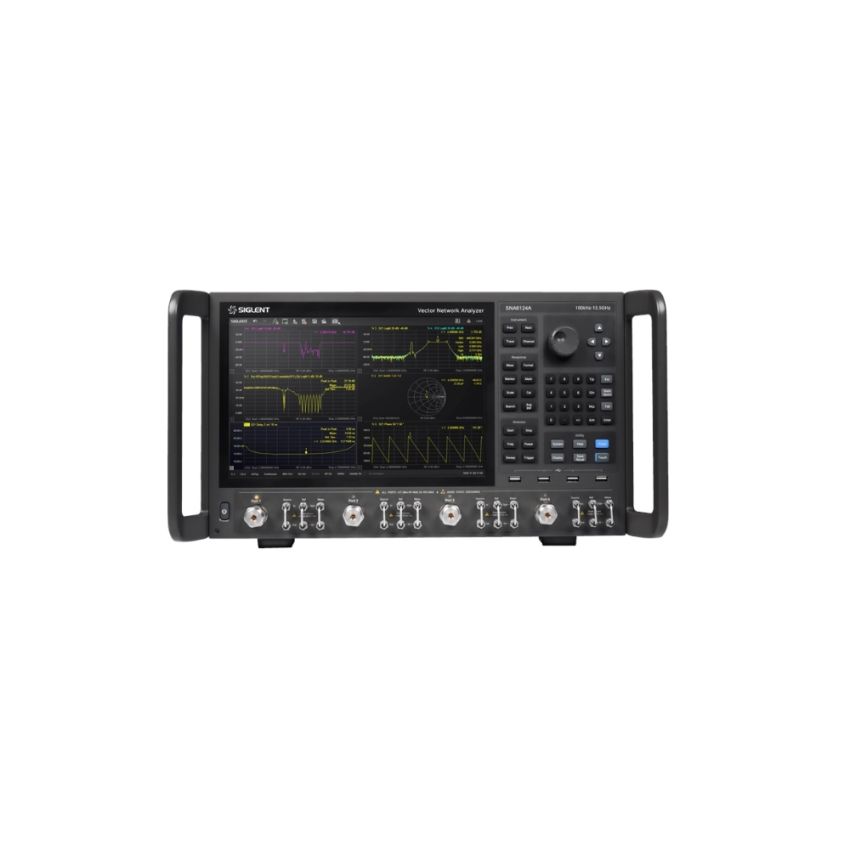

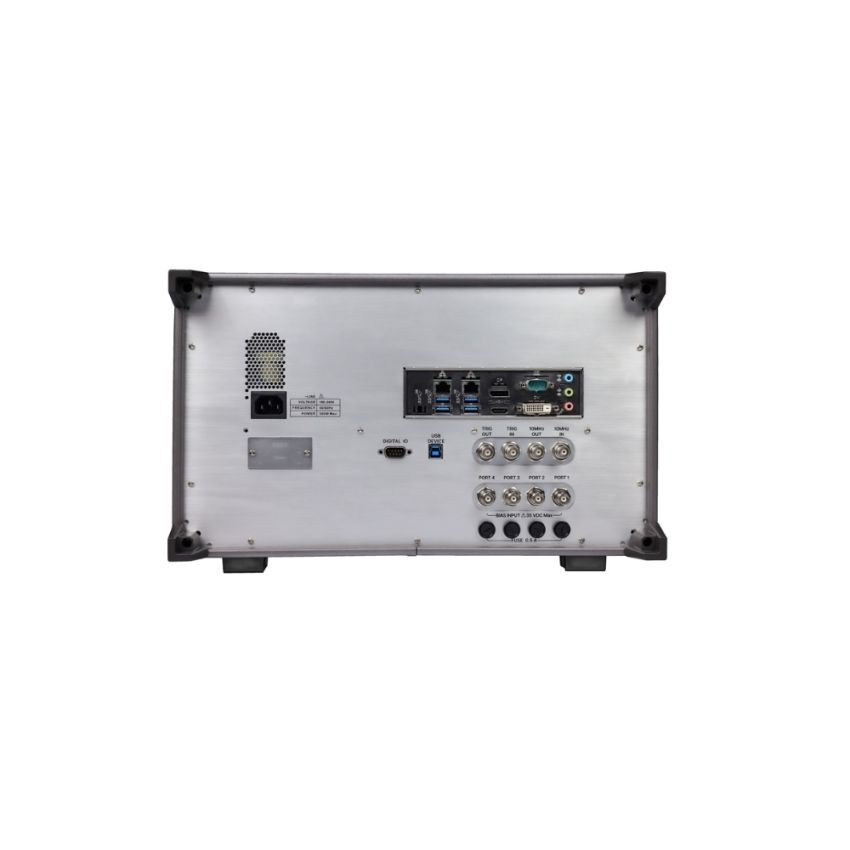

Siglent SNA6124A, 4-Port Vector Network Analyzer, 100 kHz–13.5 GHz
Delivery in 2 Weeks.
AED 246,081.43
Pre-Order
Only 1 left
Guarantee safe & secure checkout
The Siglent SNA6124A is a high-performance 4-port vector network analyzer (VNA) featuring a frequency range from 100 kHz to 13.5 GHz. It supports S-parameter, differential, and time-domain (TDR) measurements, making it suitable for analyzing filters, amplifiers, cables, and passive devices. The system offers multiple sweep modes—Linear, Log-Frequency, Power, CW-Time, and Segment Sweep—and supports SOLT, SOLR, TRL, and Enhanced Response calibration. Its 12.1-inch touchscreen display and high-dynamic-range receiver facilitate precise and efficient measurements in R&D, production, and field-testing environments.
Key Features
- Covers 100 kHz to 13.5 GHz with 1 Hz frequency resolution and 0.05 dB level resolution
- 4 RF ports with direct receiver access and dynamic range up to 135 dB
- Five sweep types: Linear-Freq, Log-Freq, Power, CW-Time, and Segment
- Supports calibration methods: SOLT, SOLR, TRL, Response, Enhanced Response
- Port extensions: impedance conversion, fixture simulation, ripple and limit testing
- Advanced time-domain TDR analysis, spectrum analysis, pulse measurements, and material measurement
| Display | 12.1‑inch touch |
|---|---|
| Frequency range | 100 kHz to 13.5 GHz |
| Modes | S-parameters (2/4-port), differential parameters, time‑domain (TDR), spectrum, pulse measurement |
| Auto Range | Automatic IFBW selection (1 Hz–10 MHz) |
