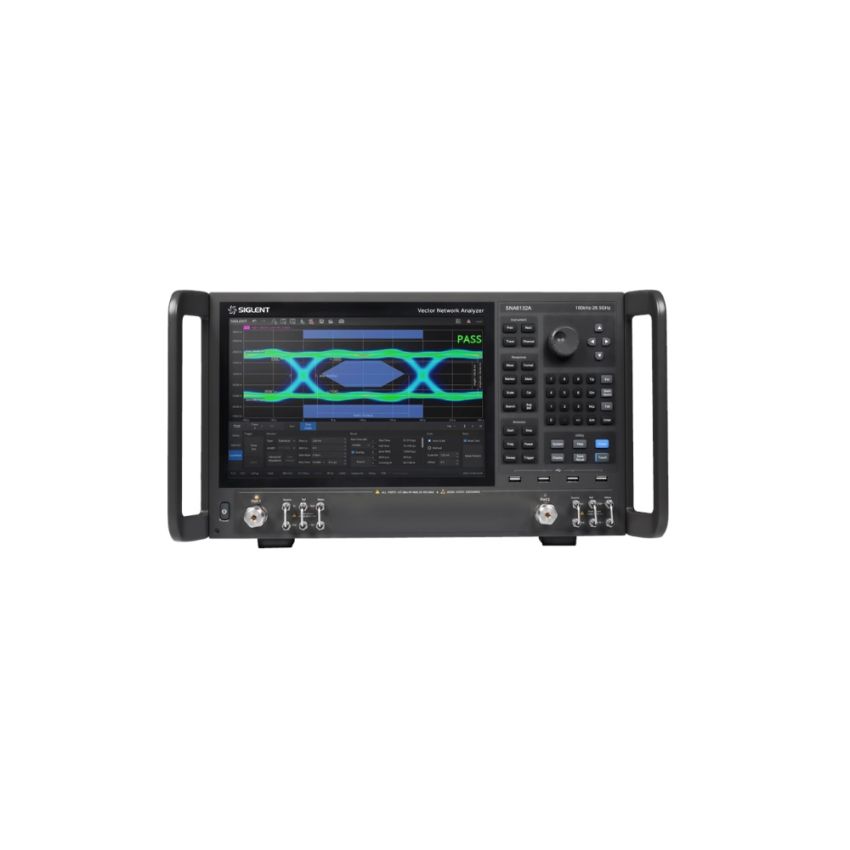

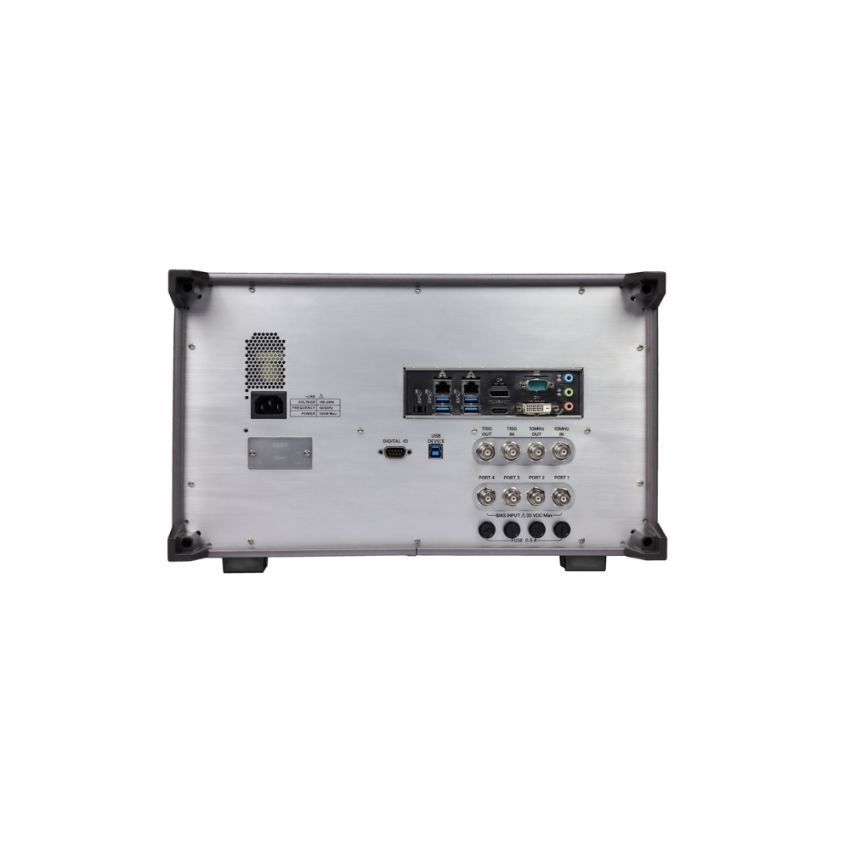

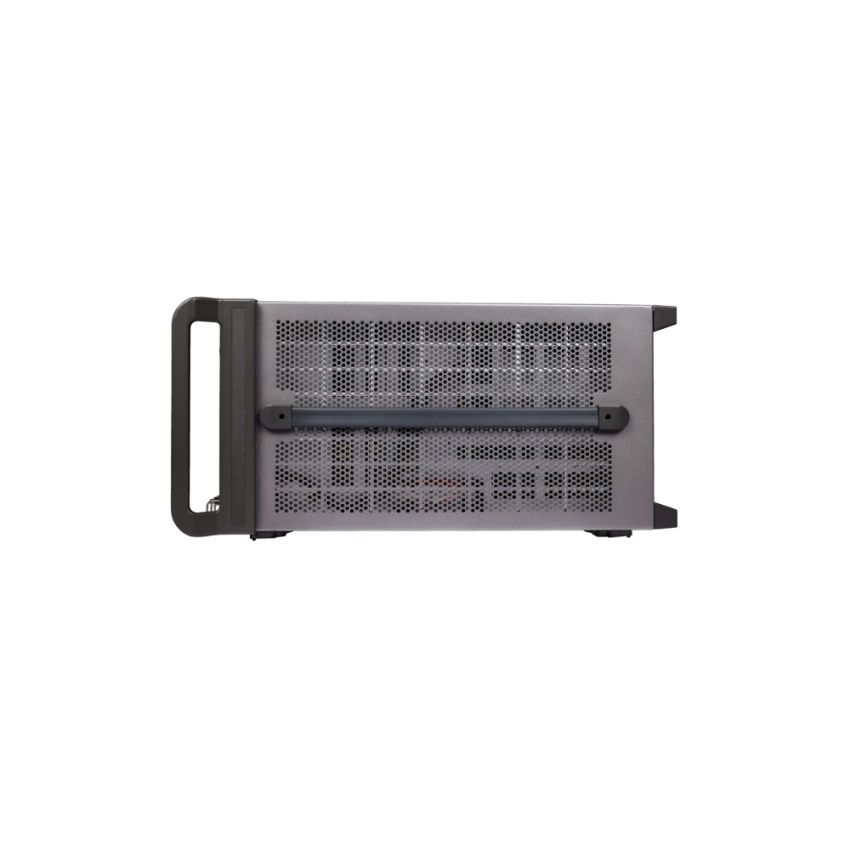

Siglent SNA6132A, 2-Channel Vector Network Analyzer, 100 kHz–26.5 GHz

The Siglent SNA6132A is a high-performance 2-port Vector Network Analyzer (VNA) offering a frequency range from 100 kHz to 26.5 GHz. It provides precise measurement capabilities with a dynamic range of 135 dB and a level resolution of 0.05 dB. The analyzer features a 12.1-inch touch screen for intuitive operation and supports various calibration methods, including full 2-port calibration and TRL calibration. It is suitable for applications in RF component testing, filter analysis, and system characterization.

Key Features

• Wide frequency range from 100 kHz to 26.5 GHz with direct receiver access.
• High dynamic range of 135 dB, ideal for precise amplitude measurements.
• Exceptional resolution: 1 Hz frequency and 0.05 dB level resolution.
• Advanced calibration support: SOLT, TRL, Response, Enhanced Response, etc.
• Intuitive 12.1″ touchscreen, plus multi-window display and video output options.
• Supports diverse measurement modes—time-domain, limit/ripple testing, impedance conversion, fixture simulation, etc.
