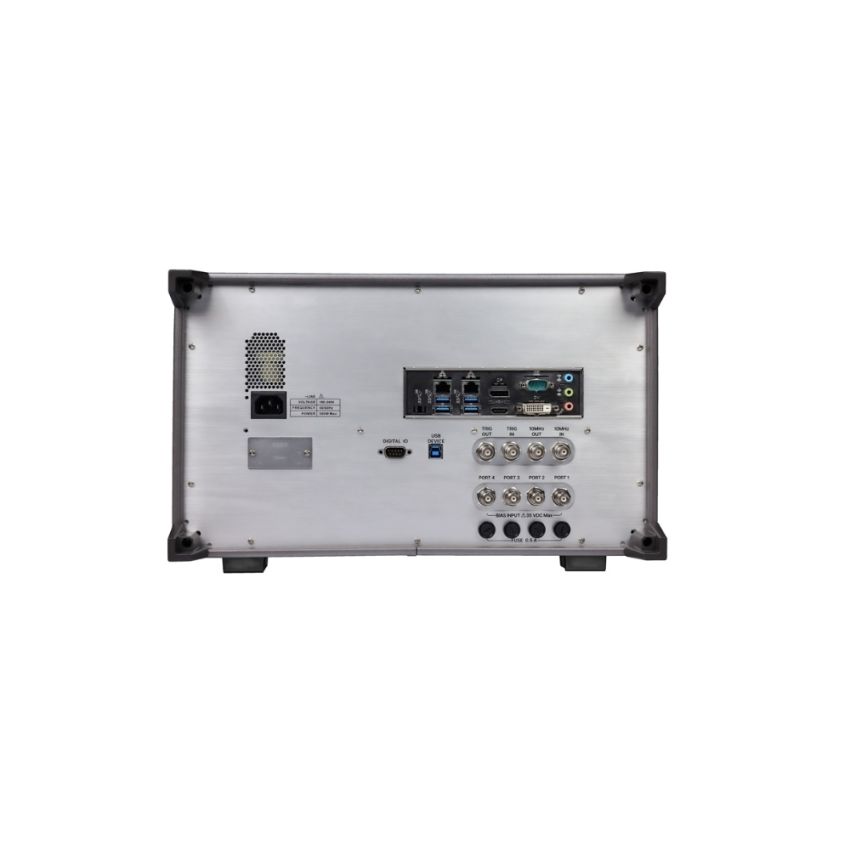

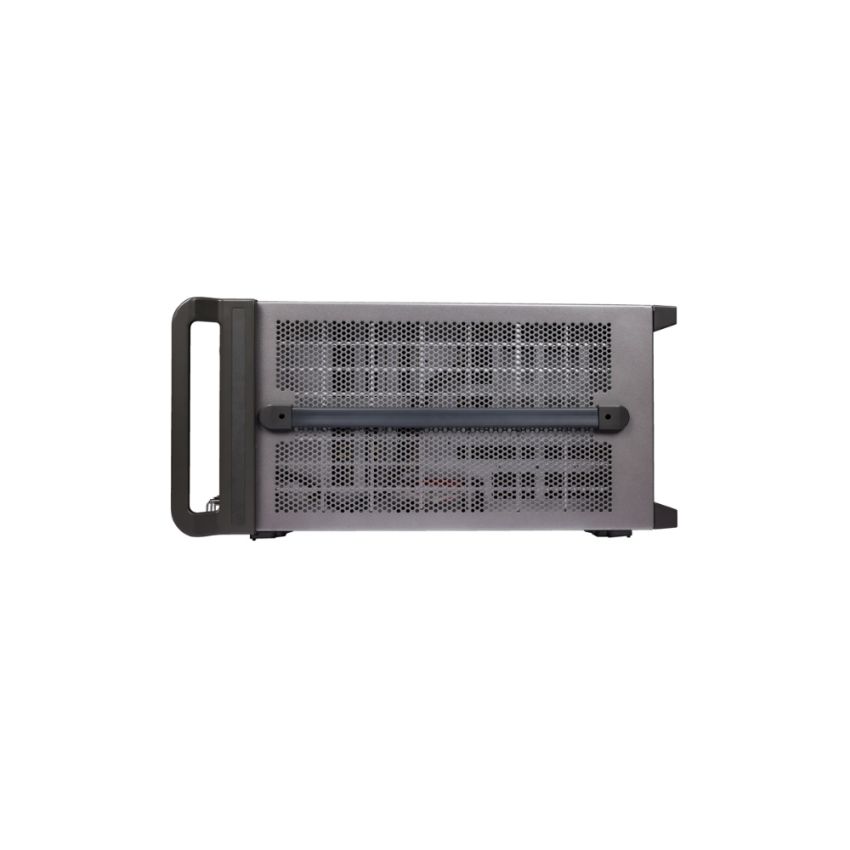

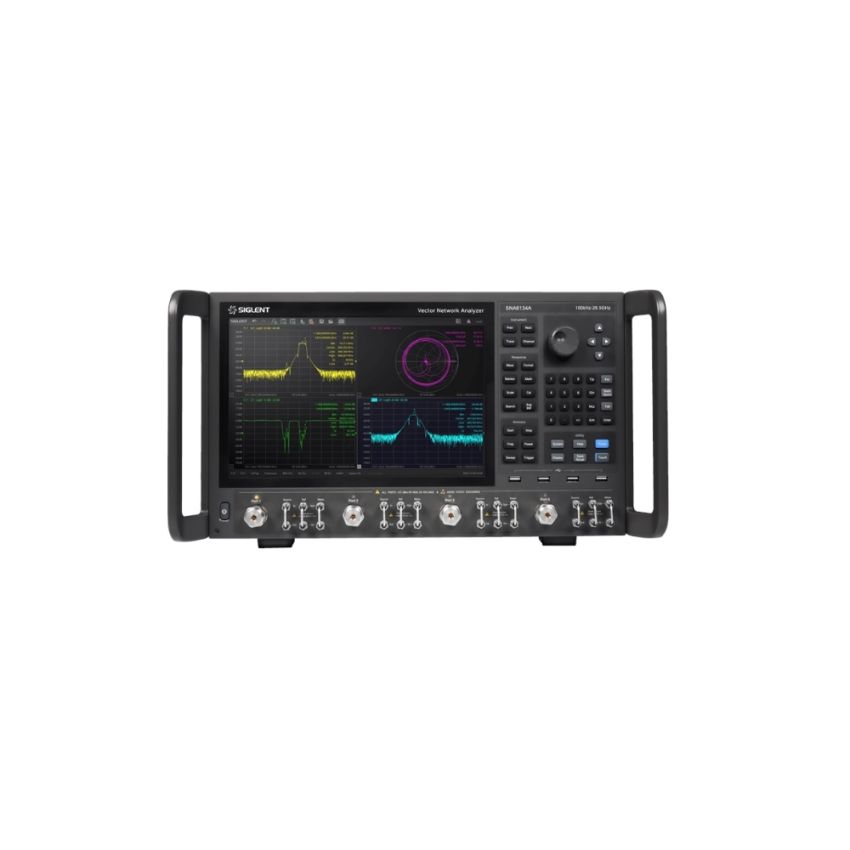

Siglent SNA6134A, 4-Port Vector Network Analyzer, 100 kHz–26.5 GHz

The Siglent SNA6134A is a high-performance 4-port Vector Network Analyzer (VNA) offering a frequency range from 100 kHz to 26.5 GHz. It features a 12.1-inch touchscreen display with a resolution of 1280×800 pixels, providing a user-friendly interface for comprehensive network analysis. The analyzer supports various measurement types, including scattering parameters, differential parameters, and time-domain analysis, making it suitable for applications in R&D, manufacturing, and quality control of RF components.

Key Features

• 100 kHz to 26.5 GHz frequency range, 4-port configuration with Direct Receiver Access.
• Dynamic range of 135 dB, capturing both very weak and strong signals.
• Ultra-high resolution: 1 Hz frequency and 0.05 dB level precision.
• Supports multiple calibration protocols—SOLT, TRL, Enhanced Response, and more.
• 12.1″ touchscreen display, HDMI/DVI/DP outputs, and multi-window interface for enhanced usability.
• Rich measurement modes including time-domain, limit/ripple testing, fixture compensation, and sweep flexibility.
