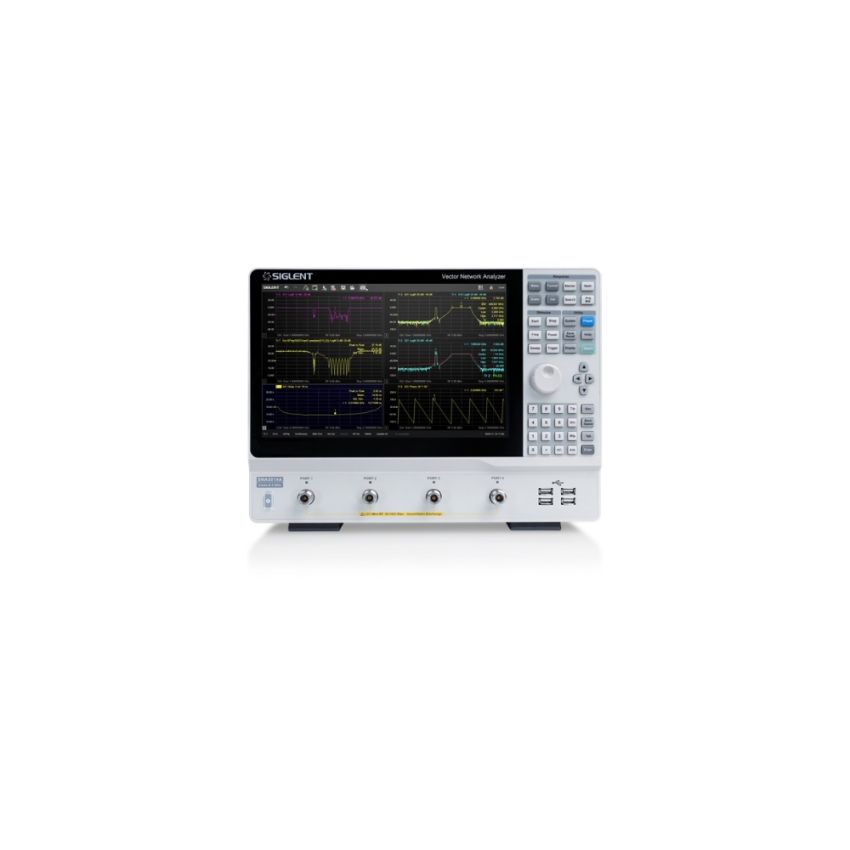

Siglent SNA5014A, 4‑Port Vector Network Analyzer, 9 kHz–8.5 GHz, 12.1‑inch Touchscreen

The Siglent SNA5014A is a high-performance 4-port vector network analyzer operating from 9 kHz to 8.5 GHz. It features a dynamic range of up to 125 dB with 0.05 dB level resolution and 1 Hz frequency resolution. Offering five sweep types—linear, log, power-sweep, CW-time, and segmented—it includes full S-parameter, differential, time-domain, and TDR measurement capabilities. Calibration options include SOLT, SOLR, TRL, and enhanced response. The instrument is equipped with a 12.1‑inch touch-enabled color display, HDMI video output, USB and LAN connectivity (with optional USB‑GPIB), and supports remote control via SCPI, VXI‑11, Telnet, socket, or web server. Ideal for R&D, manufacturing, and advanced diagnostic applications.

Key Features

• Four measurement ports, covering 9 kHz to 8.5 GHz
• High dynamic range: 125 dB, with 0.05 dB level resolution and 1 Hz frequency steps
• Five sweep modes: linear, log, power-sweep, CW-time, segmented
• Complete S‑parameter, differential‑parameter, time‑domain and TDR analysis
• Calibration support: SOLT, SOLR, TRL, response and enhanced response
• 12.1‑inch capacitive touchscreen with HDMI output
