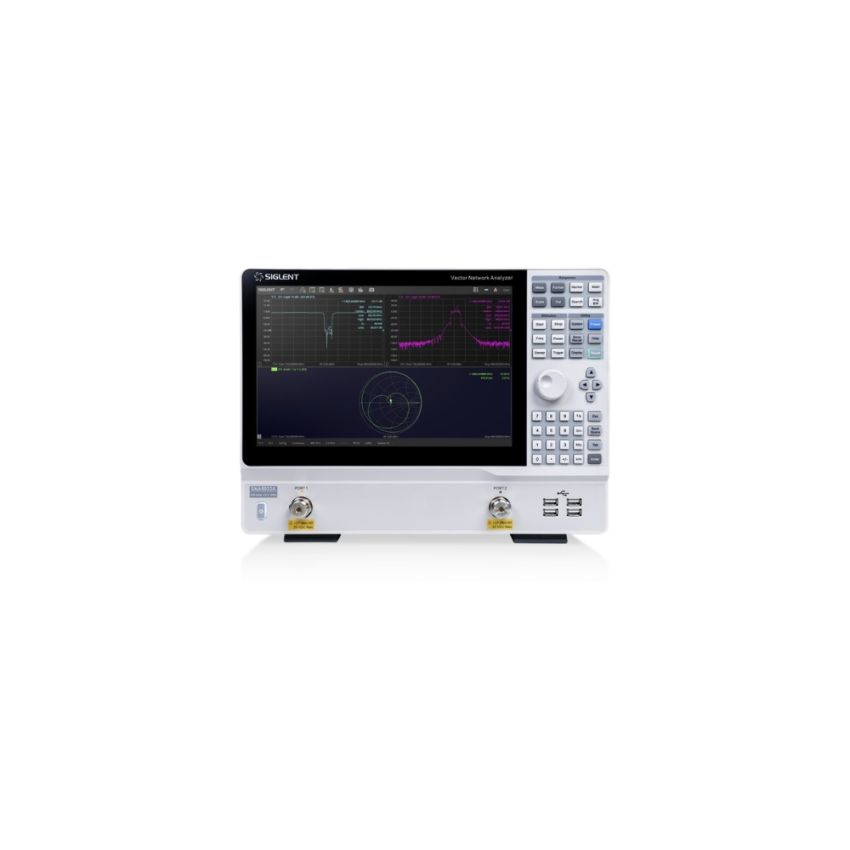

Siglent SNA5022A, 2-Port Vector Network Analyzer, 100 kHz – 13.5 GHz

The Siglent SNA5022A is a versatile 2-port vector network analyzer covering from 100 kHz to 13.5 GHz. It supports scattering‑parameter (S‑parameter), differential‑parameter, time‑domain (TDR), and receiver measurements, along with limit and ripple testing. With five sweep modes—linear, log, power‑sweep, CW‑time, and segment—it features comprehensive calibration options (SOLT, SOLR, TRL, enhanced response), bias tee support, and fixture simulation. The intuitive 12.1‑inch touchscreen with HDMI output and remote connectivity (LAN, USB‑TMC, USB‑GPIB, VXI‑11, Socket, Telnet, WebServer) enhances usability in both R&D and production environments.

Key Features

• Wide frequency coverage: 100 kHz to 13.5 GHz, 2‑port capability.
• High resolution: 1 Hz frequency resolution and 0.05 dB level resolution.
• Low IF bandwidth range: 10 Hz to 3 MHz; output level range from –55 dBm to +10 dBm.
• Excellent dynamic range of 125 dB, ensuring precise signal measurement.
• Supports advanced calibrations: Response, Enhanced Response, SOLT, SOLR, and TRL.
• Equipped with a 12.1‑inch touchscreen display, remote control options (LAN, USB, GPIB, Web), and multiple sweep modes.
