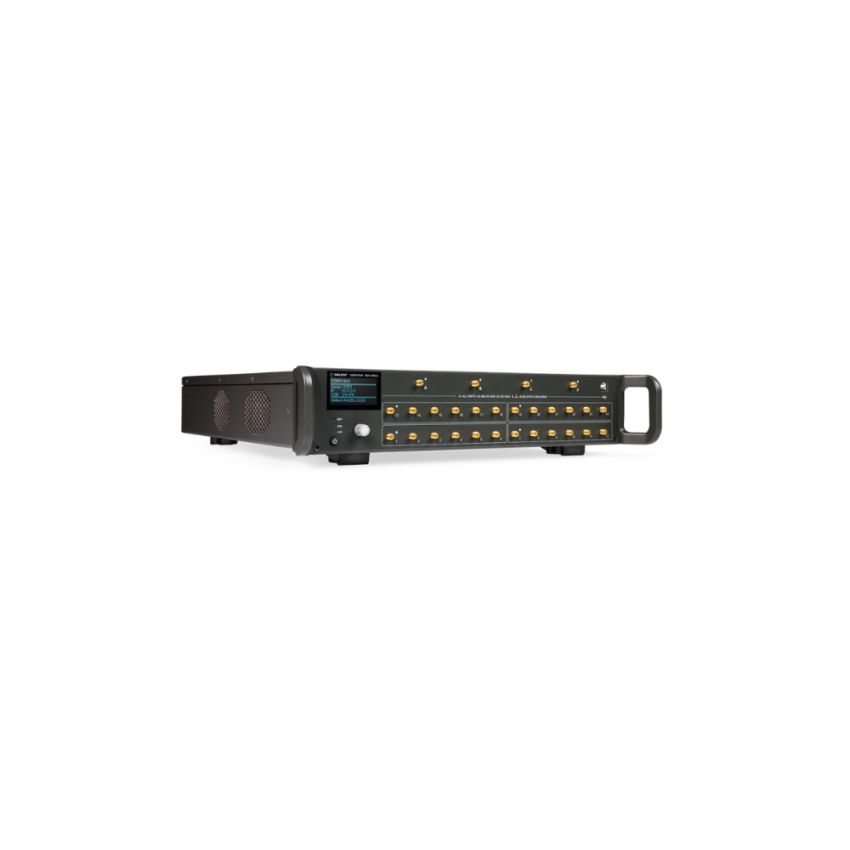

Siglent SSM5342A, 4‑Input 12‑Output RF Switch Matrix, 100 kHz–26.5 GHz

The Siglent SSM5342A is a high-frequency RF switch matrix designed to expand signal routing capability for instruments like network analyzers, signal generators, and spectrum analyzers. It features four RF input ports and twelve output ports, all using 3.5 mm female connectors, covering a wide frequency range of 100 kHz up to 26.5 GHz. Control interfaces include USB device, LAN, and TTL Direct Control ports (in/out). The system supports a simplified multi-port calibration algorithm and fits into a standard 19-inch rack chassis. It’s ideal for automated multi-path testing scenarios in RF development, calibration labs, and production lines.

Key Features

• Covers broad RF range from 100 kHz to 26.5 GHz
• Four RF input ports and twelve output ports on 3.5 mm female connectors
• USB and LAN remote-control access, with TTL Direct Control in/out
• Includes multi-port calibration support for automated test efficiency
• Rack-mountable 19″ enclosure
• Compact 2.4″ front-panel color display, rotary knob, and status indicators
