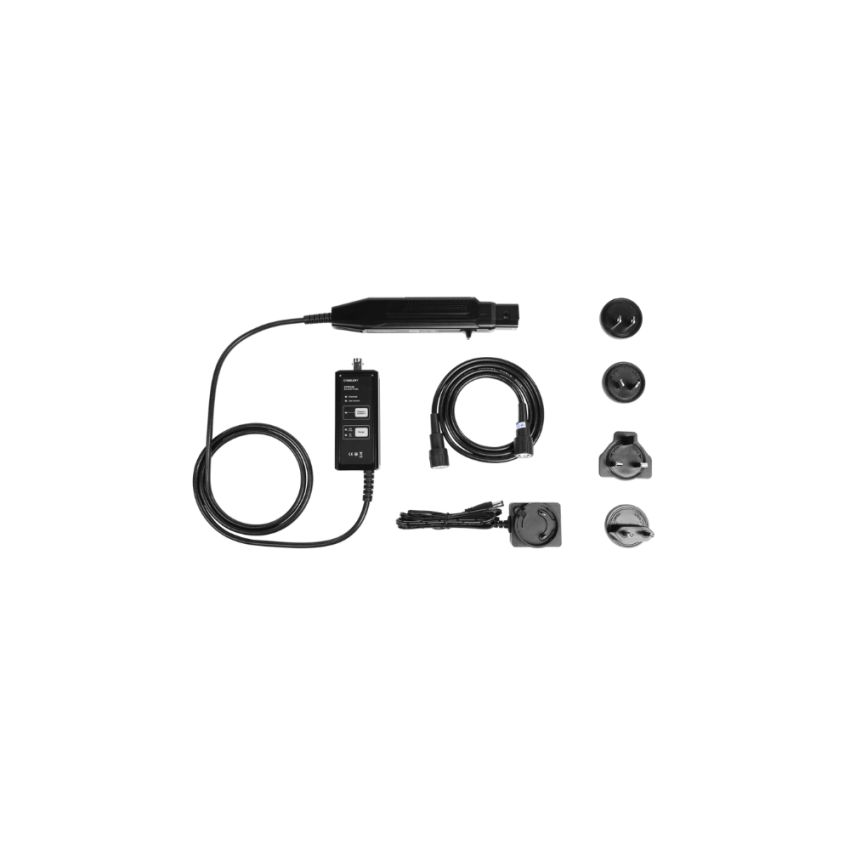

CP6030 AC DC Current Probe 50 MHz Bandwidth 30 ArMS Continuous 50 A Peak

The CP6030 is a high‑precision AC/DC current clamp probe by Siglent, designed for wideband current measurement up to 50 MHz bandwidth. It handles continuous currents up to 30 ArMS and peak currents up to 50 A, offering selectable attenuation ratios (5 A/30 A). The probe delivers high accuracy—±1 % ± 1 mA in low range and ±1 % ± 10 mA in high range—ensuring reliable readings. It operates from a standard 12 V/1.2 A DC power adapter (included), features overload protection with both LED and buzzer alerts, and comes with a 1 m BNC cable. Rated for CAT I/II/III 300 V safety compliance and accommodates up to 5 mm conductor diameter, the CP6030 weighs approximately 1.8 kg (4 lb) and measures 12 × 12 × 4 in. Its combination of speed, precision, and versatility makes it ideal for power electronics design, industrial diagnostics, and general current waveform analysis.

Key Features

• Measures AC/DC currents up to 30 ArMS continuous and 50 A peak, with dual-range sensitivity (5 A/30 A).
• 50 MHz bandwidth (–3 dB) with fast rise time (~7 ns) for accurate transient capture.
• High precision accuracy: ±1 % ±1 mA at 5 A; ±1 % ±10 mA at 30 A.
• Overload protection features include audible buzzer and LED indicator alerts when current limits are exceeded.
• Compact design with 1 m BNC cable, powered via external adapter, compatible with oscilloscopes and multimeters.
• Safety-rated to CAT III 300 V / CAT II 600 V, suitable for professional lab and industrial settings.
