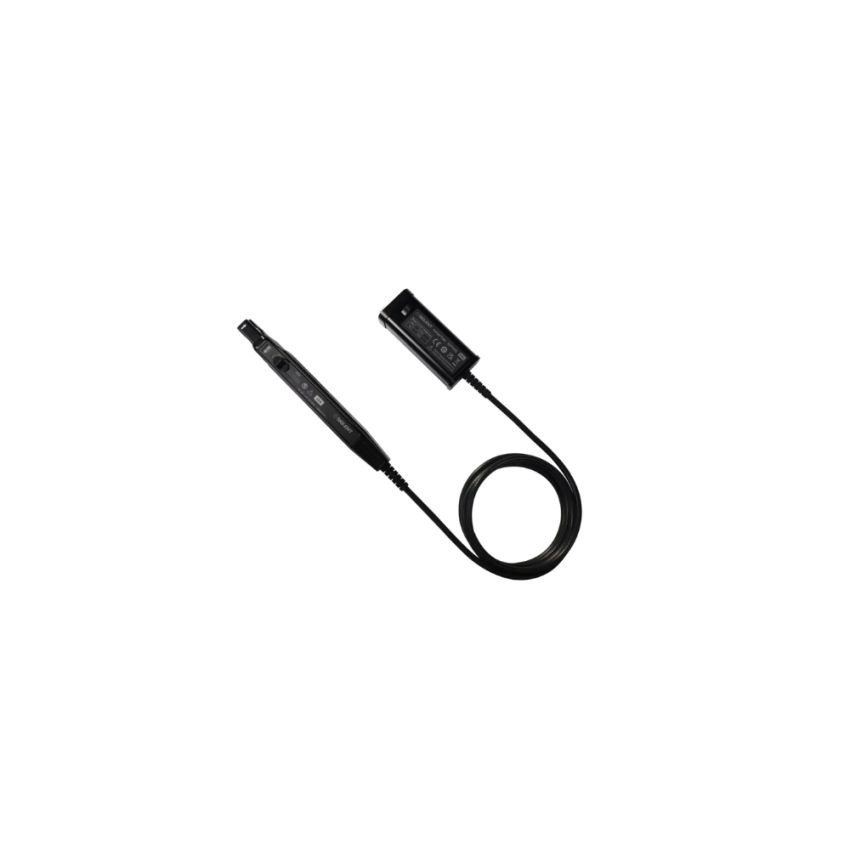

SCP5030 DC 50MHz Current Probe 30ArMS Continuous 50A Peak

The SCP5030 is a wide‑bandwidth DC/AC active current probe from Siglent’s SCP5000 series. Designed for high-fidelity current waveform capture, it features DC to 50 MHz bandwidth, rise time ≤ 7 ns, continuous current measurement up to 30 ArMS, and peak current capability of 50 A. It operates in dual range mode: 5 A (1 V/A) and 30 A (0.1 V/A) with DC accuracy of ±1%±1 mA (5 A) or ±1%±10 mA (30 A). The sensor head accommodates conductors up to 5 mm diameter and is powered directly from any high‑impedance SAPBUS‑equipped oscilloscope (no external power needed). A built‑in safety interrupt protects against overheating during sustained peaks. Weighing approximately 270 g, and measuring 176 × 39.5 × 18 mm for the head with overall packaging dimensions of ~305 × 305 × 102 mm, it is compact, precise, and ideal for lab or field use.

Key Features

• Wide bandwidth from DC to 50 MHz with rise time ≤ 7 ns, enabling accurate transient capture.
• Measures continuous current up to 30 ArMS and transient peaks up to 50 A.
• Dual-range output: 5 A (1 V/A) and 30 A (0.1 V/A) for versatile measurement settings.
• High DC accuracy of ±1% ±1 mA at 5 A and ±1% ±10 mA at 30 A.
• Built-in overload protection safety function that automatically disrupts output upon sustained peak load.
• Powered directly from oscilloscope via SAPBUS interface, with no external power or cables required.
