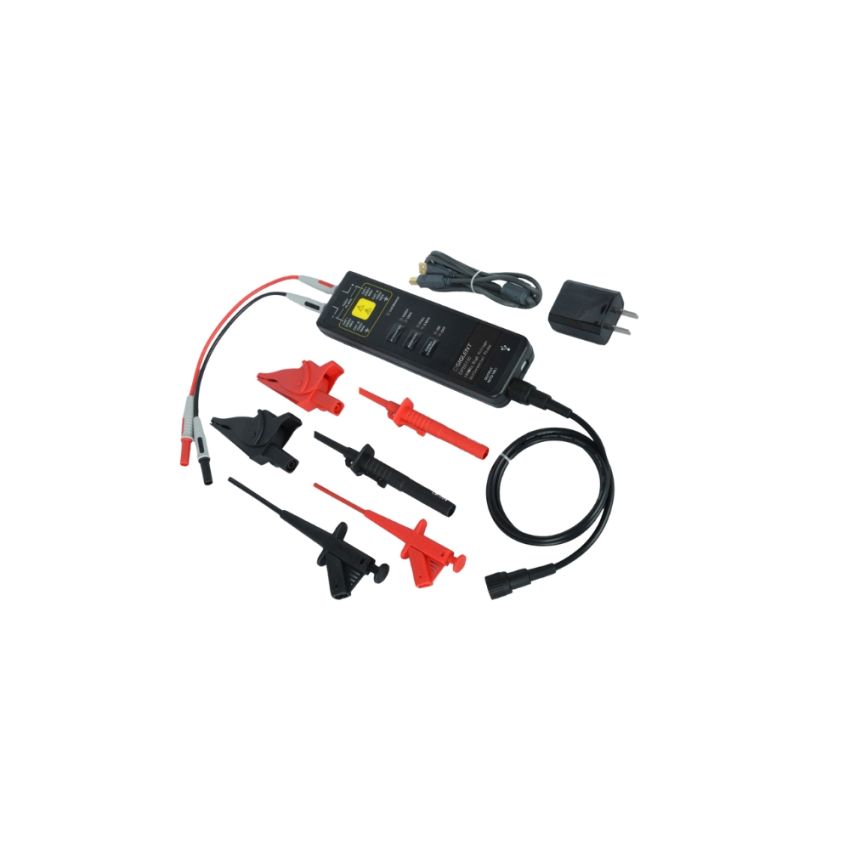

DPB5150A Differential High Voltage Probe 100 MHz Bandwidth 1500 V Differential Input 50X 500X Attenuation

The DPB5150A is a high‑accuracy differential high‑voltage probe from Siglent’s DPB5000 series. It supports DC to 100 MHz bandwidth (‑3 dB, rise time ≤ 3.5 ns) and safely measures up to 1,500 V differential (DC + AC peak) using switchable attenuation settings of 50× (150 V) or 500× (1,500 V). The probe delivers ±2% DC accuracy, features ultra-low input capacitance (< 4 pF per channel, < 2 pF differential), high input impedance (10 MΩ differential), and excellent common-mode rejection (> 80 dB at DC, > 50 dB at 1 MHz). It is powered via a standard USB 5 V/1 A adapter, includes built-in overload indicator (LED) and audible alarm, offers optional bandwidth limit mode, and stores settings automatically. Compact and rugged, the probe body weighs approximately 188 g (≈ 0.19 kg) with body dimensions about 195 × 65 × 28 mm, packaged within approximately 32 × 26 × 9 cm for easy deployment in industrial, power electronics, and floating-signal test environments.

Key Features

• Supports DC to 100 MHz bandwidth, with rise time ≤ 3.5 ns, ideal for high-frequency differential voltage measurements.
• Handles up to ±1,500 V differential input, selectable via 50× or 500× attenuation (150 V or 1,500 V ranges).
• Ensures high measurement precision with ±2% DC accuracy on both attenuation settings.
• Very low loading on DUT: input capacitance < 4 pF/channel, differential < 2 pF, input impedance 10 MΩ differential.
• Built-in LED overload indicator and audible alarm, with settings memory and optional bandwidth‑limit mode.
• USB‑powered (5 V/1 A), compact and lightweight (~188 g), ready for field or bench use.
