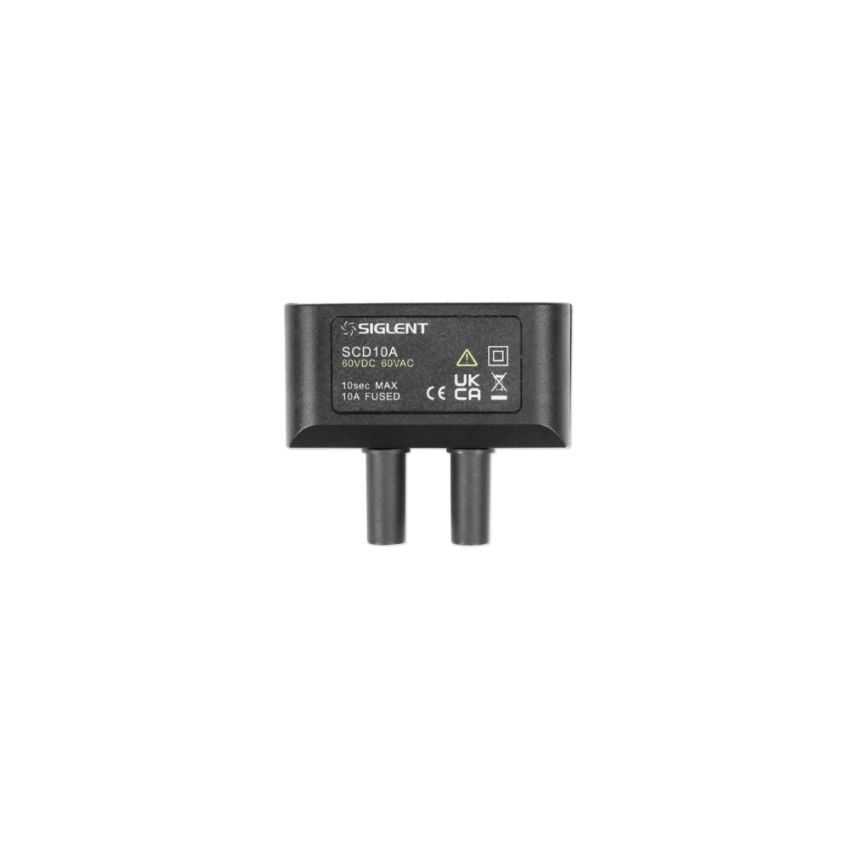

SCD10A Current Measurement Adapter 10 A Range 5 mOhm Shunt for SHS800X SHS1000X

The Siglent SCD10A current measurement adapter provides safe inline sensing of currents up to 10 A (for up to 10 seconds) when used with SHS800X or SHS1000X handheld oscilloscopes. It features a precision 5 milliohm (mOhm) sampling resistor that allows accurate current measurement by the device’s internal multimeter circuitry. The adapter connects between the instrument’s banana probe input and the measurement circuit and is rated for CAT III 60 Vrms. Compact and portable, it enables reliable low-resistance current sensing without the need for external clamps.

Key Features

• Measures currents up to 10 A (10-second duration) via 5 mOhm inline resistor
• Designed for SHS800X and SHS1000X handheld scopes with internal multimeter support
• Fits between banana jack probe input and measurement circuit for direct inline reading
• Rated CAT III 60 V rms for safe low-voltage current testing
• Compact and lightweight for convenient field or benchtop use
• Cost-effective alternative to external current clamp probes
