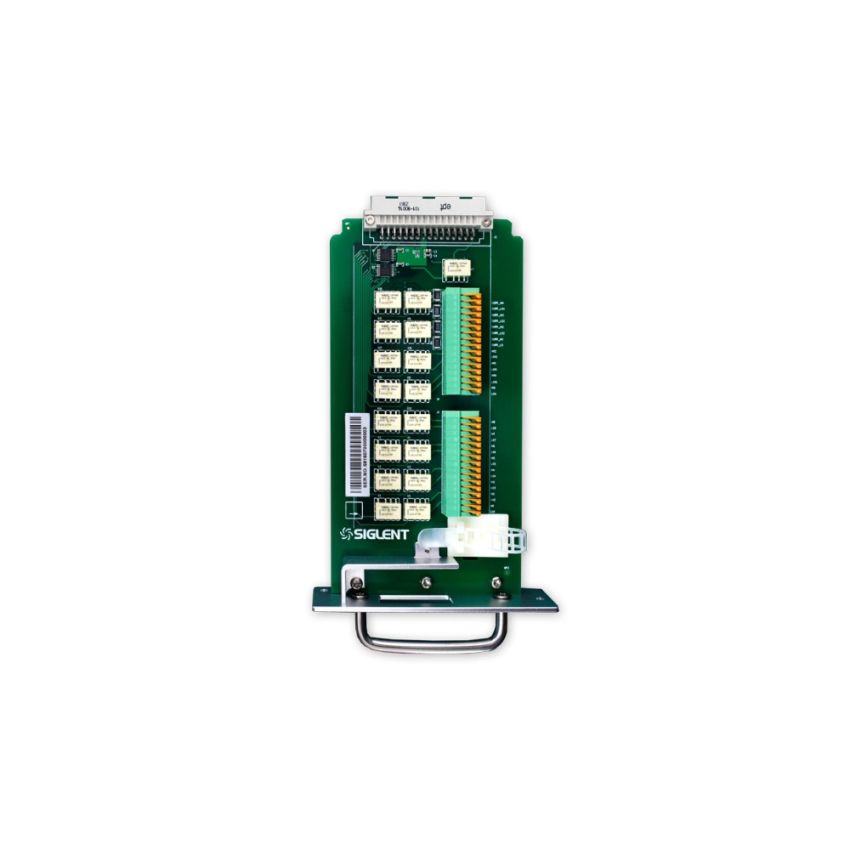

SC1016 Scanner Card Option 12 Voltage Channels and 4 Current Channels Multiplexer Module

The Siglent SC1016 is a multiplexer scanner card factory-installed by Siglent during manufacturing of SDM3055‑SC and SDM3065X‑SC digital multimeter models. It enables multi-point automated measurements by providing 12 voltage channels and 4 current channels. Supported measurement types include DC voltage, AC voltage, DC current, AC current, 2‑wire and 4‑wire resistance, capacitance, frequency, diode testing, continuity, and temperature sensor readings (RTD and thermocouple). The SC1016 provides auto scanning control integrated into the multimeter firmware and can be programmed over USB or LAN using SCPI commands in supported software. Note: it cannot be added to meters after purchase.

Key Features

• Provides 12 multifunction voltage channels and 4 current channels for automated multiplexed measurements.
• Supports functions: DCV, ACV, DCI, ACI, 2‑wire/4‑wire resistance, capacitance, frequency, diode, continuity, RTD, and thermocouple temperature.
• Designed exclusively for SDM3055‑SC and SDM3065X‑SC models and must be factory-installed.
• Firmware-integrated with user-configurable scan sequences, timing, and channel assignment.
• Supports programmatic control using SCPI over USB or LAN connections.
• Ideal for applications requiring multi-point automation—such as battery, manufacturing, or R&D testing sequences.
