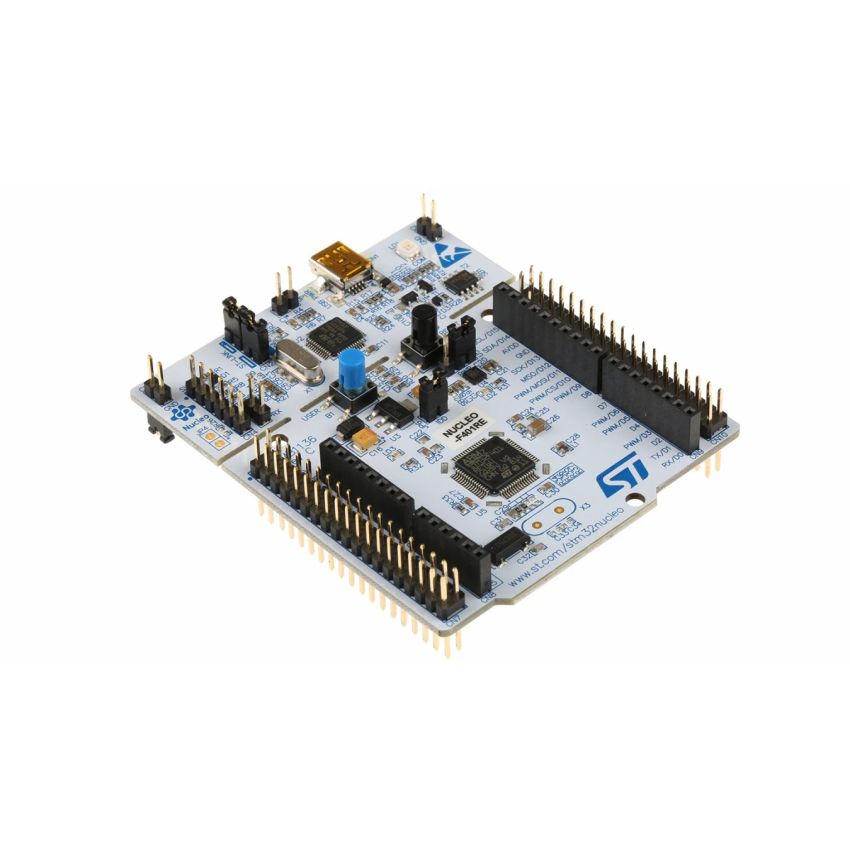

STM32F401RET6 - ST Microelectronics, Development Board
SKU
DEDB0047
Part Number
STM32F401RET6 64PINS - NUCLEO BOARD
Brand:
Categories:
AED 225.00
In stock
Guarantee safe & secure checkout
<h1><strong>Specifications</strong>:</h1>
<p><br />Core: ARM 32-bit Cortex-M4 CPU with<br />FPU, Adaptive real-time accelerator (ART<br />Accelerator) allowing 0-wait state execution<br />from Flash memory, frequency up to 84 MHz,<br />memory protection unit,<br />105 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1),<br />and DSP instructions<br />• Memories<br />– up to 512 Kbytes of Flash memory<br />– up to 96 Kbytes of SRAM<br />• Clock, reset and supply management<br />– 1.7 V to 3.6 V application supply and I/Os<br />– POR, PDR, PVD and BOR<br />– 4-to-26 MHz crystal oscillator<br />– Internal 16 MHz factory-trimmed RC<br />– 32 kHz oscillator for RTC with calibration<br />– Internal 32 kHz RC with calibration<br />• Power consumption<br />– Run: 146 µA/MHz (peripheral off)<br />– Stop (Flash in Stop mode, fast wakeup<br />time): 42 µA Typ @ 25C; 65 µA max<br />@25 C<br />– Stop (Flash in Deep power down mode,<br />fast wakeup time): down to 10 µA @ 25 C;<br />30 µA max @25 C<br />– Standby: 2.4 µA @25 C / 1.7 V without<br />RTC; 12 µA @85 C @1.7 V<br />– VBAT supply for RTC: 1 µA @25 C<br />• 1×12-bit, 2.4 MSPS A/D converter: up to 16<br />channels<br />• General-purpose DMA: 16-stream DMA<br />controllers with FIFOs and burst support<br />• Up to 11 timers: up to six 16-bit, two 32-bit<br />timers up to 84 MHz, each with up to four<br />IC/OC/PWM or pulse counter and quadrature<br />(incremental) encoder input, two watchdog<br />timers (independent and window) and a<br />SysTick timer<br />• Debug mode<br />– Serial wire debug (SWD) & JTAG<br />interfaces<br />– Cortex-M4 Embedded Trace Macrocell<br />• Up to 81 I/O ports with interrupt capability<br />– Up to 78 fast I/Os up to 42 MHz<br />– All I/O ports are 5 V-tolerant<br />• Up to 12 communication interfaces<br />– Up to 3 x I2C interfaces (SMBus/PMBus)<br />– Up to 3 USARTs (2 x 10.5 Mbit/s,<br />1 x 5.25 Mbit/s), ISO 7816 interface, LIN,<br />IrDA, modem control)<br />– Up to 4 SPIs (up to 42Mbit/s at<br />fCPU = 84 MHz), SPI2 and SPI3 with muxed<br />full-duplex I2S to achieve audio class<br />accuracy via internal audio PLL or external<br />clock<br />– SDIO interface<br />– Advanced connectivity: USB 2.0 full-speed<br />device/host/OTG controller with on-chip<br />PHY<br />• CRC calculation unit<br />• 96-bit unique ID<br />• RTC: subsecond accuracy, hardware calendar<br />• All packages (WLCSP49, LQFP64/100,<br />UFQFPN48, UFBGA100) are ECOPACK2</p>
| Memory | 96KB |
|---|---|
| I/O Pins | 64 |
| Logic Level | 3.3V |
