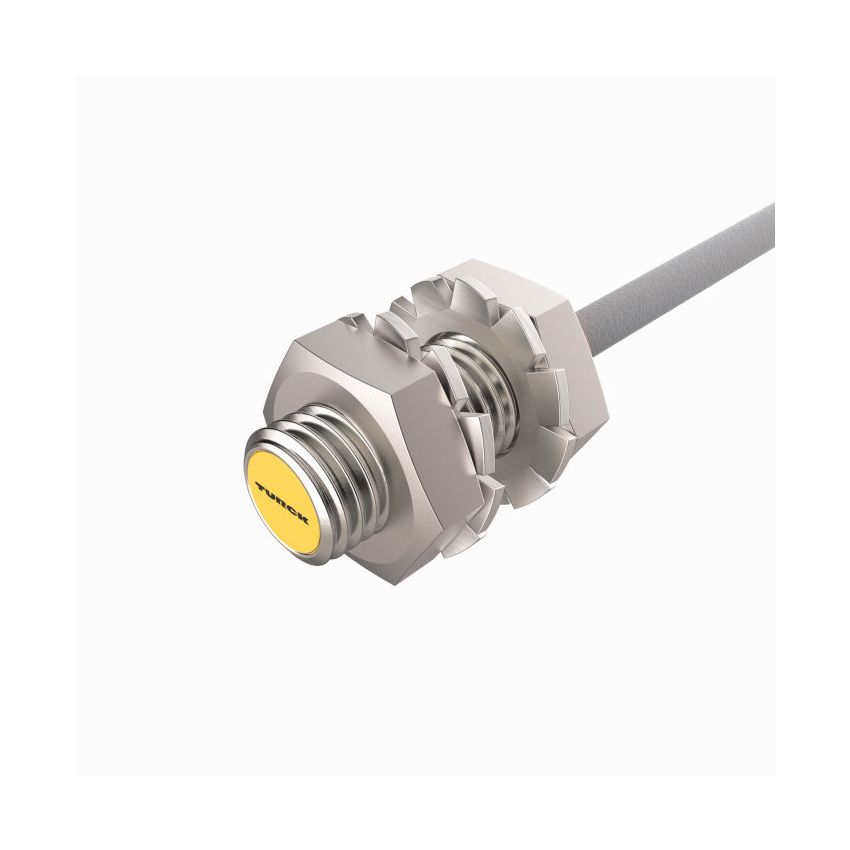

NI15G30Y1X, Inductive Proximity Sensor, M30 x 1.5, 15 mm Sensing Distance​

The NI15-G30-Y1X is a high-performance inductive proximity sensor designed for reliable detection of metal objects in industrial environments. With a 15 mm non-flush sensing distance and compliance with NAMUR output standards (EN 60947-5-6), it ensures accurate and consistent performance. The sensor's robust chrome-plated brass housing provides IP67 protection, making it suitable for use in harsh conditions. Certified for intrinsic safety (ATEX II 1 G, Ex zone 0; ATEX II 1 D, Ex zone 20), the NI15-G30-Y1X is ideal for applications in hazardous areas. Its wide operating temperature range (-25°C to +70°C) and compliance with SIL2/PL c safety standards make it a versatile and reliable choice for various industrial applications. ​

Key Features:

• High Sensitivity: Offers a 15 mm non-flush sensing distance, enabling reliable detection of metal objects. ​
• NAMUR Output: Complies with EN 60947-5-6 standards, ensuring compatibility with intrinsically safe circuits. ​
• Robust Construction: Features a chrome-plated brass housing with an IP67 rating, providing excellent resistance to harsh industrial environments. ​
• Intrinsic Safety: Certified for use in hazardous areas (ATEX II 1 G, Ex zone 0; ATEX II 1 D, Ex zone 20), ensuring safe operation in explosive atmospheres. ​
• Extended Temperature Range: Operates effectively between -25°C and +70°C, suitable for various industrial applications. ​
• SIL2/PL c Compliance: Meets SIL2 (Low Demand Mode) according to IEC 61508 and PL c according to ISO 13849-1 with HFT0, ensuring reliable performance in safety-related systems. ​

Additional Specifications:

• Type: Proximity Sensor (NAMUR Type)
• Operating Voltage: Nominal 8.2 VDC (supplied via NAMUR-compliant isolating amplifier)
• Current Consumption: Active State: ≤ 1.2 mA Inactive State: ≥ 2.1 mA
• Communication Interface: 2-wire NAMUR output
