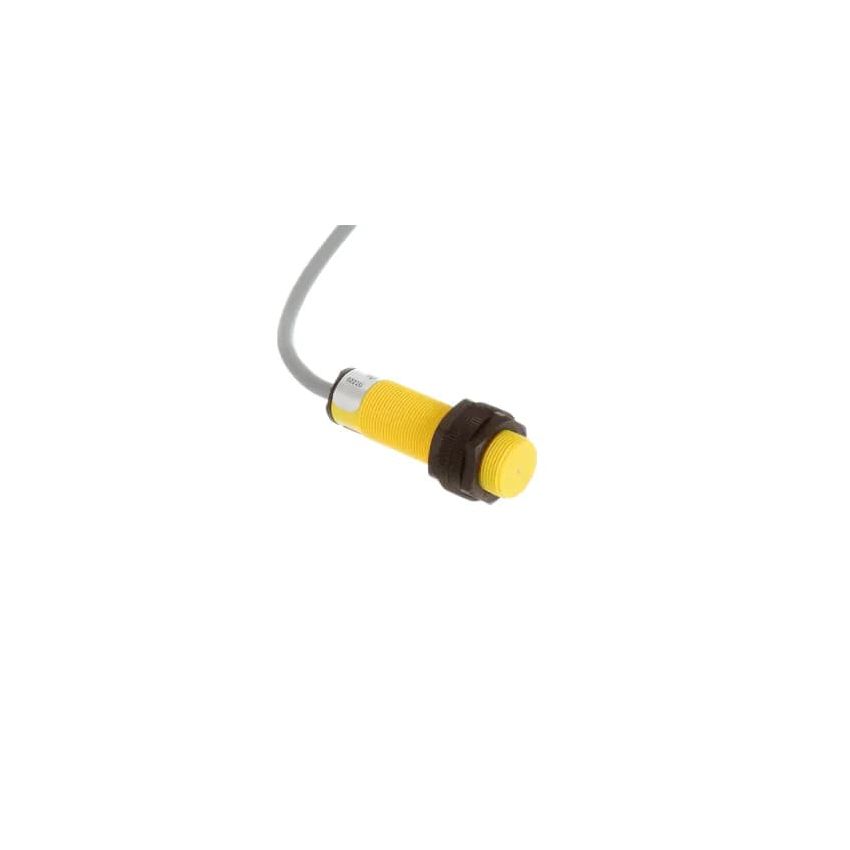

Ni8-M18-AZ3X, Inductive Proximity Sensor, 8mm Sensing Distance, M18 Threaded Barrel, 20–250VAC / 10–300VDC​

The Ni8-M18-AZ3X is an inductive proximity sensor from TURCK, designed to detect metal objects without physical contact. Housed in a robust M18 x 1 threaded barrel made of chrome-plated brass, it offers an 8mm sensing distance when installed in non-flush mounting conditions. This sensor operates over a wide voltage range, accommodating both AC (20–250V) and DC (10–300V) power supplies, making it versatile for various industrial applications. With a high switching capacity and a clear LED indicator for switching status, it ensures reliable performance and easy status monitoring. Its IP67 rating further enhances its suitability for use in challenging environments where exposure to dust and moisture is a concern.​

Key Features:

• Wide Operating Voltage Range: Compatible with both AC (20–250V) and DC (10–300V) power supplies, offering flexibility in various applications.​
• Robust Construction: Chrome-plated brass housing ensures durability and resistance to mechanical wear.​
• Non-Flush Mounting: Designed for non-flush installation, providing an extended sensing distance of 8mm.​
• High Switching Capacity: Capable of handling up to 400mA in AC and 300mA in DC operations, suitable for controlling various loads.​
• LED Indicator: Equipped with a red LED to clearly indicate the switching status, facilitating easy monitoring.​
• Environmental Resilience: Rated IP67, ensuring protection against dust and temporary immersion in water, making it suitable for harsh environments.​

Additional Specifications:

• Type: Inductive Proximity Sensor
• Operating Voltage: 20–250 VAC / 10–300 VDC
• Current Consumption: 1.7 mA
• Communication Interface: Discrete 2-wire output
