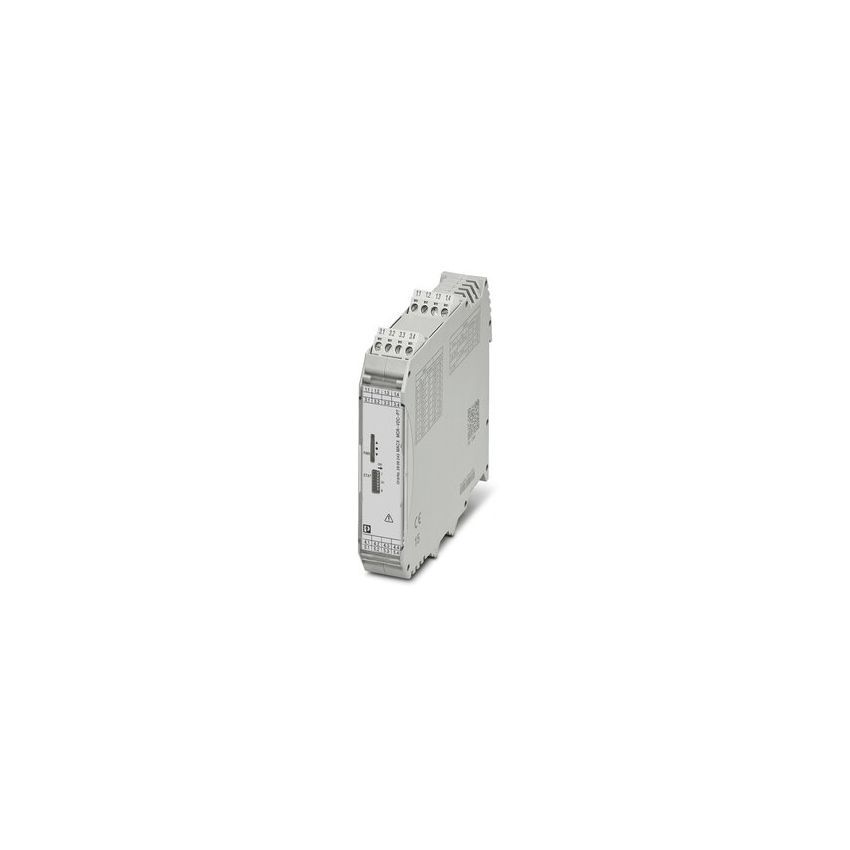

MACX MCR-VDC-PT, Voltage Measuring Transducer, 24V DC Supply, Configurable Input Range up to ±660V DC, Phoenix Contact

The MACX MCR-VDC-PT is a versatile voltage measuring transducer from Phoenix Contact, designed to accurately convert DC voltage measurements into standardized analog signals. It supports a wide range of input voltages, from ±20 V DC to ±660 V DC, making it suitable for various industrial applications. The transducer offers both voltage and current output signals, ensuring compatibility with diverse control and monitoring systems. Its three-way isolation enhances operational safety and maintains signal integrity by electrically separating the input, output, and supply circuits. With features like ZERO/SPAN adjustment and tool-free parameterization, the MACX MCR-VDC-PT provides precise calibration and easy configuration, ensuring reliable performance in monitoring and control applications.​

Key Features:

• Adjustable Voltage Ranges: Supports configurable input voltage ranges from ±20 V DC up to ±660 V DC, accommodating various measurement needs.​
• Bidirectional Output Signals: Provides both voltage (-10 V to 10 V) and current (-20 mA to 20 mA) outputs, offering flexibility in interfacing with different systems.​
• Three-Way Isolation: Ensures electrical isolation between input, output, and supply circuits, enhancing safety and signal integrity.​
• ZERO/SPAN Adjustment: Features ±20% adjustment for zero and span, allowing precise calibration to specific requirements.​
• Tool-Free Parameterization: Enables easy configuration of measured values without the need for specialized tools, simplifying setup and maintenance.​
• Teach-In Configuration: Allows for straightforward teach-in configuration of the measured value range, facilitating quick adaptation to application-specific parameters.​

Additional Specifications:

• Type: DC Voltage Measuring Transducer
• Operating Voltage: 24 V DC
• Current Consumption: 60 mA
• Communication Interface: Analog Output
