DESCRIPTION:

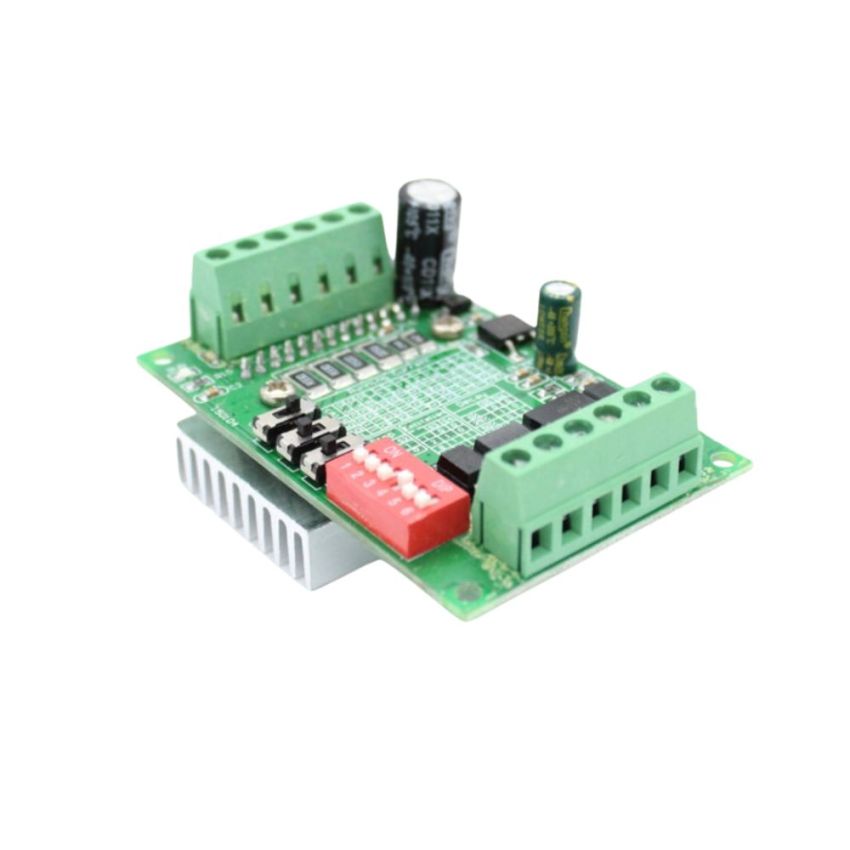

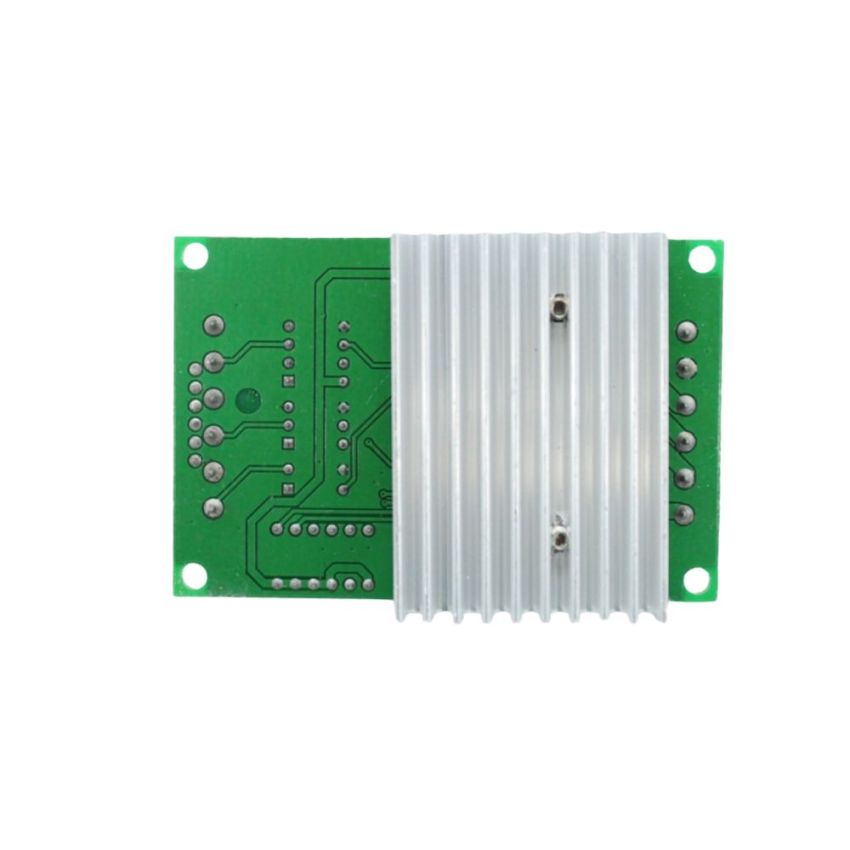

TB6560 Stepper motor driver is a low-cost motor driver suitable for controlling larger stepping motors like NEMA size 17 to 23 that are used in applications requiring low vibration, high speed and high precision for example 3D printers, laser cutters, engraving machines, robots and so on.

Specifications:

• Board Size: 75 x 50 x 35mm (L x W x H).
• Working voltage of 10~35V DC. Recommended supply voltage of 24V DC.
• Rated maximum output current of ± 3A with 3.5A peak.
• Suitable for 2 or 4-phase, 4 or 6 wire stepper motors with a maximum load current of 3A.
• Low voltage shutdown, overheating and overcurrent protection circuit to ensure optimal performance.
• Adjustable load current protection and decay modes.
• Excitation modes: 1/2, 1/8, 1/16 step
