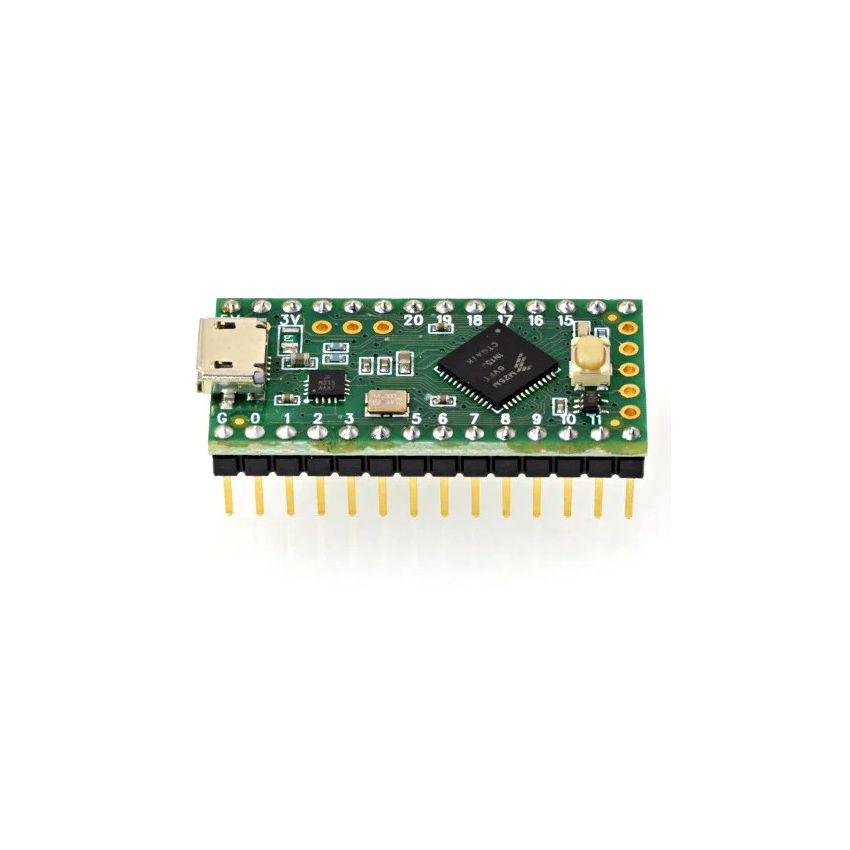

Teensy-LC USB Board, with Pins Soldered

Pins Soldered

Description:

Teensy-LC delivers an impressive collection of capabilities to make modern electronic projects simpler. It features an ARM Cortex-M0 processor at 48 MHz, 62K Flash, 8K RAM, 12-bit analog input & output, hardware Serial, SPI & I2C, USB, and a total of 27 I/O pins.

Teensy-LC maintains the same form factor as Teensy 3.2, with most pins offering similar peripheral features.

Specifications:

• ARM Cortex-M0 at 48 MHz
• 62K Flash, 8K RAM, 128 bytes EEPROM (emulated)
• USB device 12 Mbit/sec
• 27 digital input/output pins, 10 PWM output pins
• 13 analog input pins, 1 analog output pin, 11 capacitive sense pins
• 3 serial, 1 SPI, 2 I2C ports
• 4 simple DMA channels
