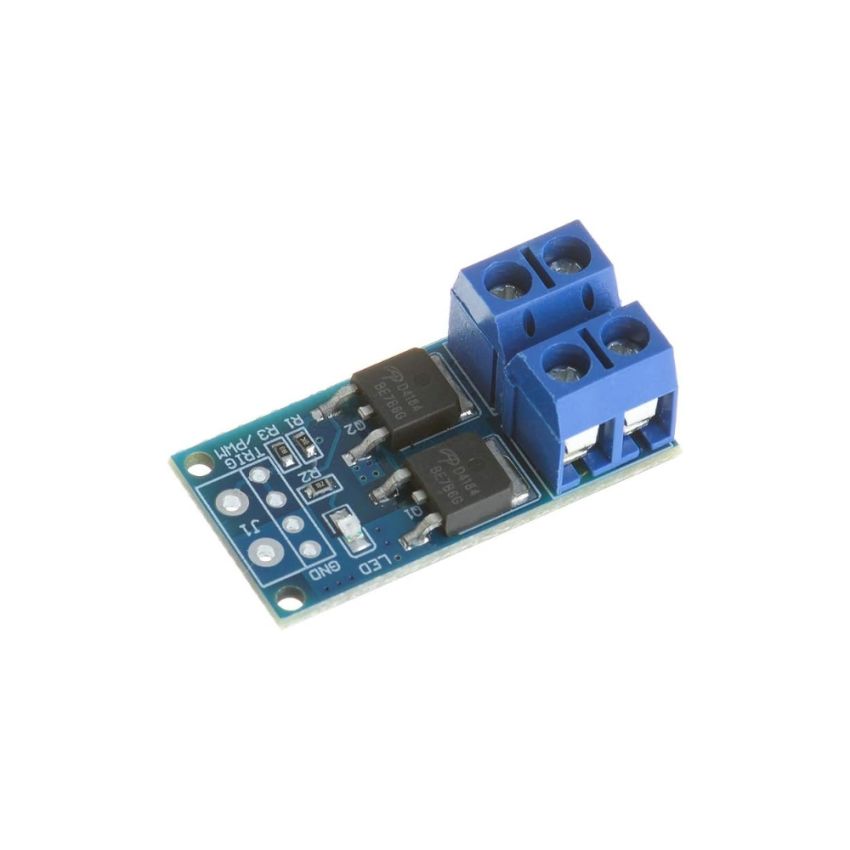

High Power PWM Switch Module - 5-36V, 20A MOSFET Trigger

The High Power PWM Switch Module is a compact yet powerful module designed to control high-current loads with precision using a PWM (Pulse Width Modulation) signal. Capable of switching loads of up to 20A, this module is ideal for controlling motors, LED strips, and other high-power devices. It supports an operating voltage range of 5V to 36V DC, offering a versatile solution for a wide variety of power management applications.

The dual MOSFET design ensures high-efficiency switching and low heat generation, making this module suitable for high-performance projects. It also features a trigger LED for visual indication of signal activation, allowing for easy monitoring.

Key Features:

• Wide Operating Voltage: The module operates within a 5V to 36V DC range, making it compatible with a wide variety of power supplies and applications.
• High Current Capacity: Supports up to 20A of continuous current, allowing for the control of high-power devices such as motors and large LED arrays.
• Dual MOSFET Design: Utilizes high-quality MOSFETs for efficient switching and minimal heat dissipation during operation.
• Trigger LED Indicator: Equipped with an LED that indicates the status of the PWM trigger, offering clear and convenient feedback.

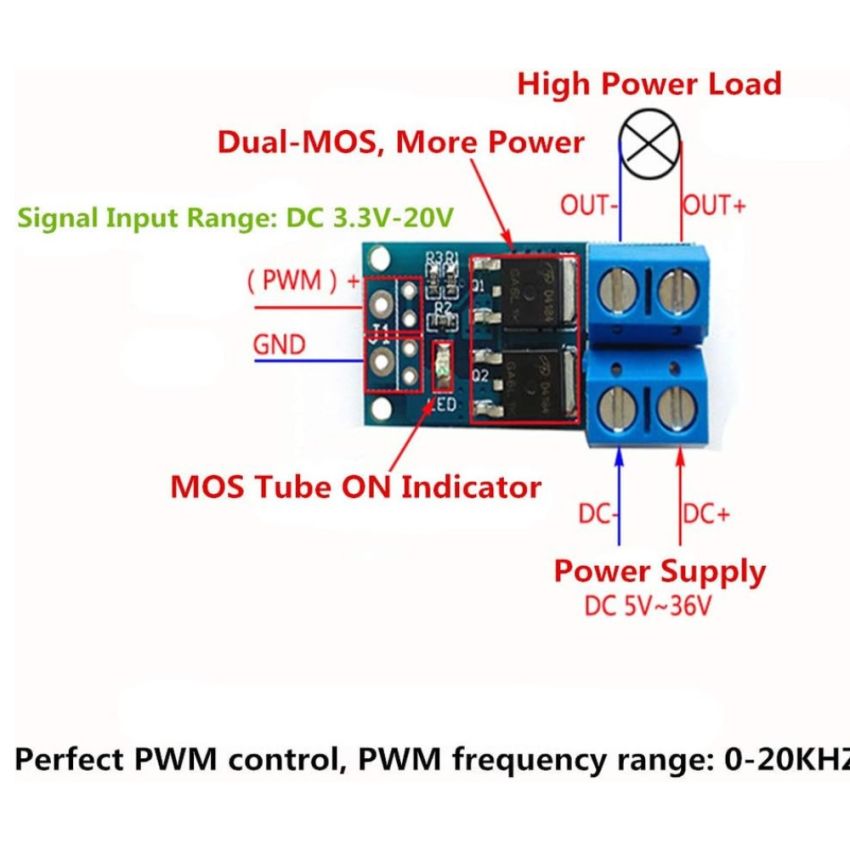

• Easy Connection Terminals: Includes screw terminals for easy and secure connection of input power and output devices.
• Compact Design: Small form factor, making it easy to integrate into space-constrained projects.
