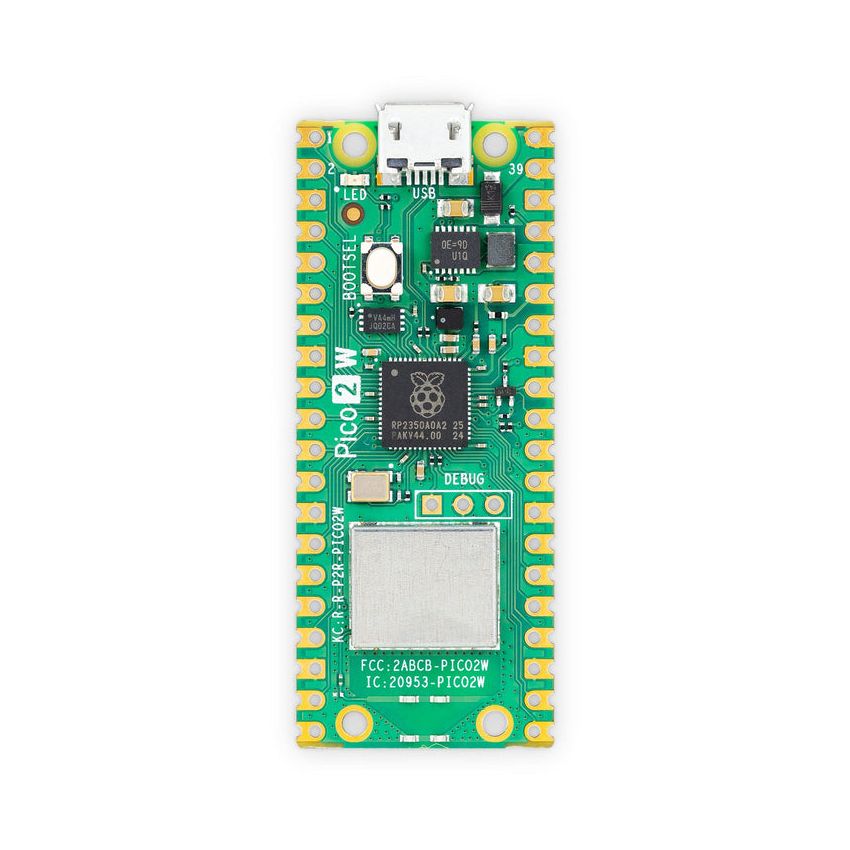

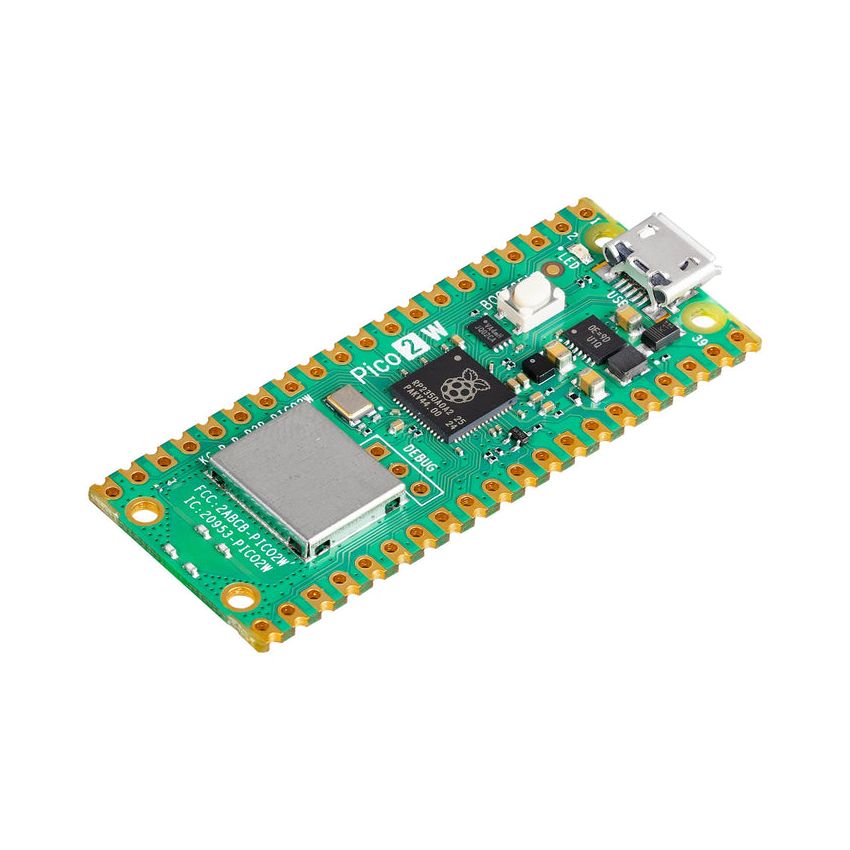

SC1633, Raspberry Pi Pico 2W

The Raspberry Pi Pico 2 W is a wireless version of the Raspberry Pi Pico 2, offering 2.4GHz 802.11n wireless LAN and Bluetooth 5.2, alongside the great features known from the Pico 2. At the heart of this board is the Raspberry Pi RP2350 chip, a high-performance, secure microcontroller, which is a successor to the RP2040 microcontroller first seen on the original Raspberry Pi Pico.

• Higher core clock speed
• Double the on-chip SRAM
• Double the on-board flash memory
• More powerful Arm cores
• Optional RISC-V cores
• New security features
• Upgraded interfacing capabilities

The RP2350's unique dual-core, dual-architecture capability allows users to choose between a pair of Arm Cortex-M33 cores or a pair of Hazard3 RISC-V cores.

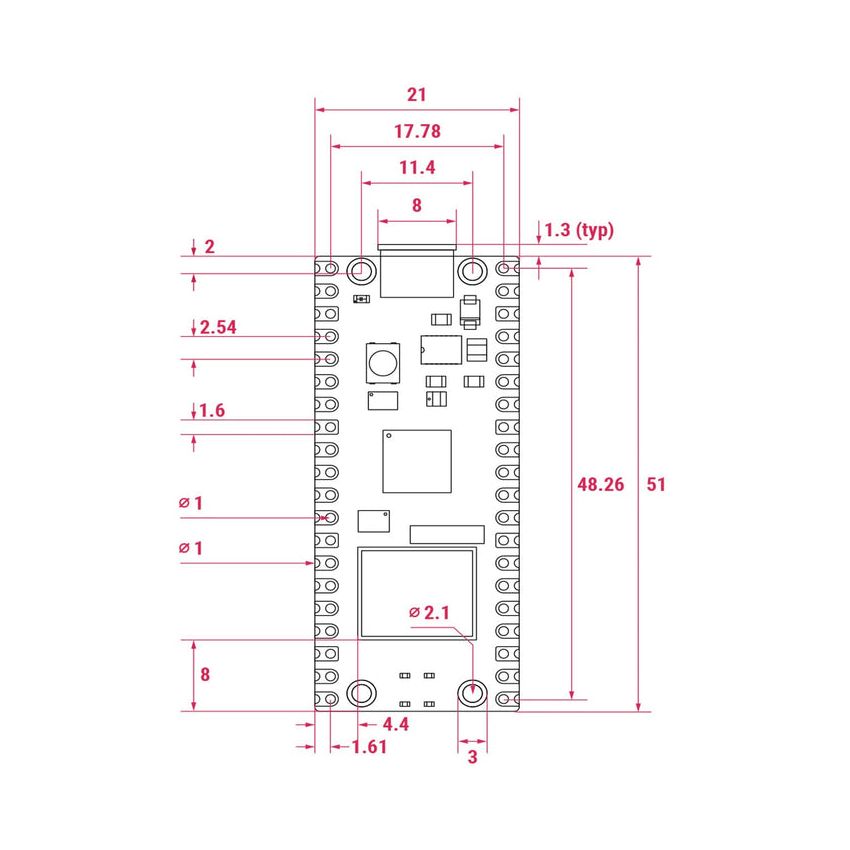

• Form factor: 21 mm × 51 mm
• CPU: Dual Arm Cortex-M33 or dual RISC-V Hazard3 processors at 150 MHz
• Memory: 520 KB on-chip SRAM; 4 MB on-board QSPI flash
• Connectivity: 2.4GHz 802.11n wireless LAN and Bluetooth 5.2
• Interfacing: 26 multi-purpose GPIO pins, including 3 that can be used for ADC
• Peripherals:
  • 2 × UART
  • 2 × SPI controllers
  • 2 × I2C controllers
  • 24 × PWM channels
  • 1 × USB 1.1 controller and PHY, with host and device support
  • 12 × PIO state machines
• Wireless: Yes
• Input power: 1.8–5.5V DC
• Operating temperature: -20C to +85C
• Production lifetime: Raspberry Pi Pico 2 W will remain in production until at least January 2040
