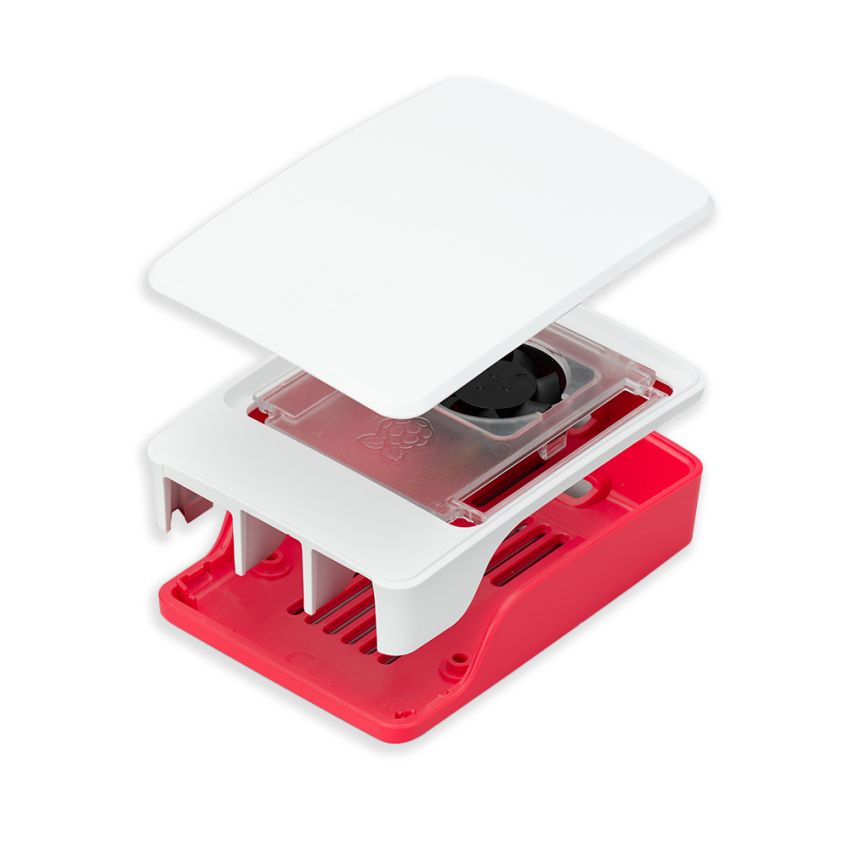

SC1159, Raspberry Pi 5 Case Red/White

<h2>Overview</h2> <p>The Raspberry Pi Case for Raspberry Pi 5 is a four-part, clip-together enclosure with an integrated active cooling fan. Designed to keep the Raspberry Pi 5 running at optimal temperatures, even under heavy load.</p> <h2>Features</h2> <ul> <li>Integrated, temperature-controlled cooling fan that connects directly to the Raspberry Pi 5's fan connector.</li> <li>12mm × 17mm × 4mm heatsink with a self-adhesive pad to enhance heat dissipation from the processor.</li> <li>Removable lid that allows easy access to the fan and a breakout slot for cables and GPIO.</li> <li>Built-in mounting features for case stacking, enabling easy expansion.</li> <li>HATs can be mounted to the enclosure using stand-offs and GPIO header extenders (not included).</li> <li>Includes four silicone feet to provide stability for the case.</li> </ul> <h2>Specifications</h2> <ul> <li>Input voltage: 5V DC, supplied via the four-pin fan header on Raspberry Pi 5.</li> <li>Fan speed control: Pulse Width Modulation (PWM) with tachometer for precise control.</li> <li>Maximum airflow: 2.79 CFM.</li> <li>Maximum fan speed: 8000 RPM +/- 15%.</li> <li>Case material: ABS for the base, frame, and lid, and PC for the fan assembly.</li> </ul>
