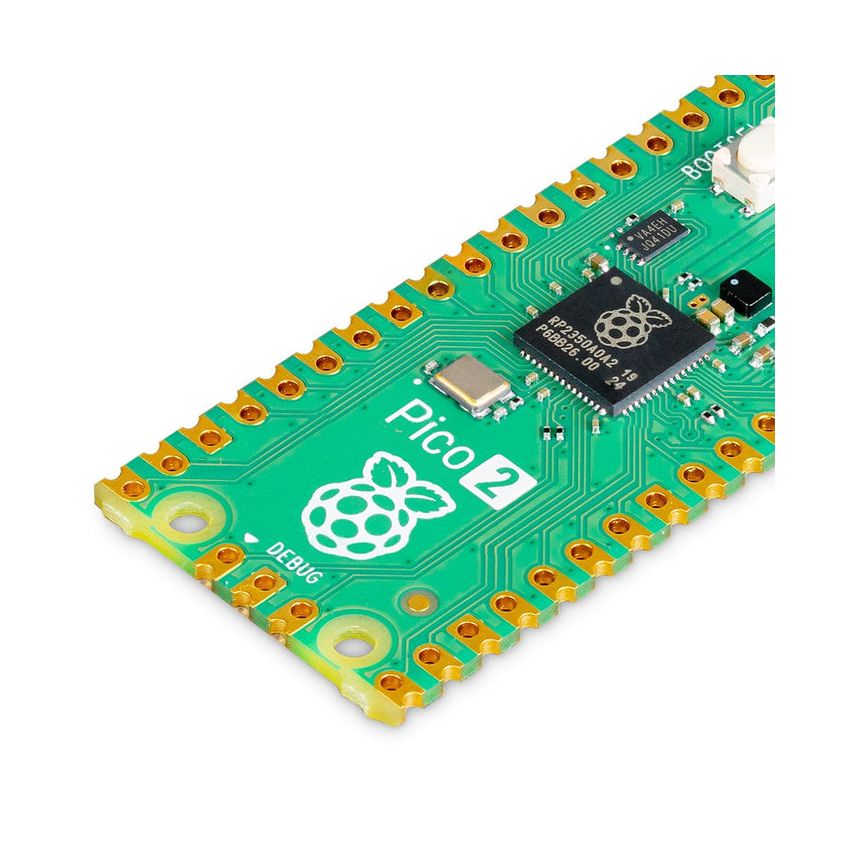

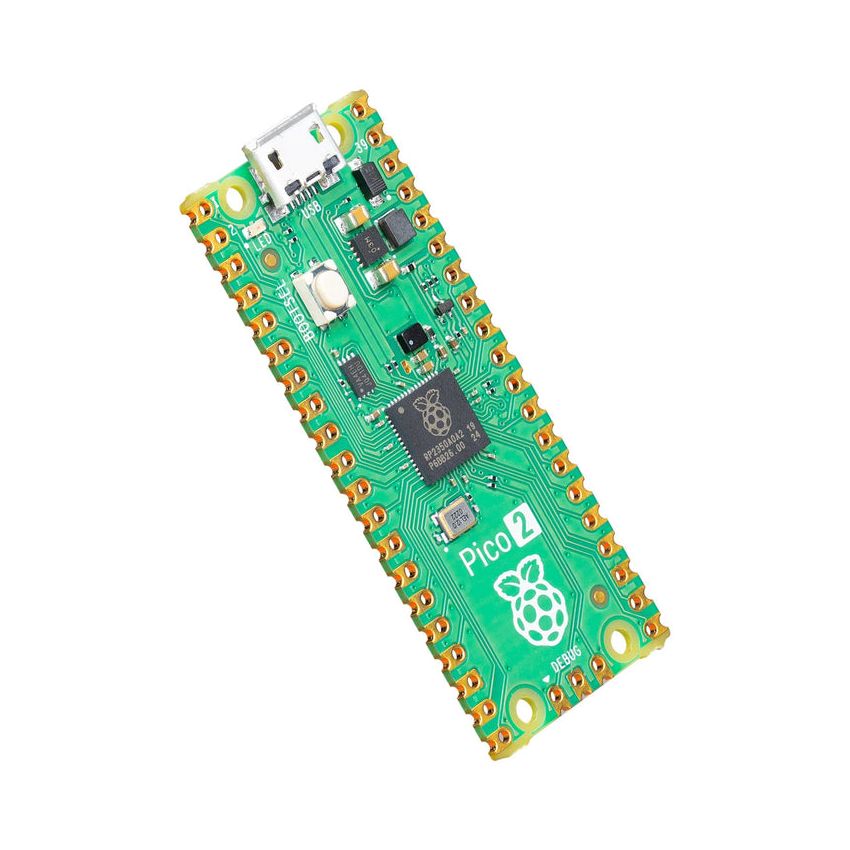

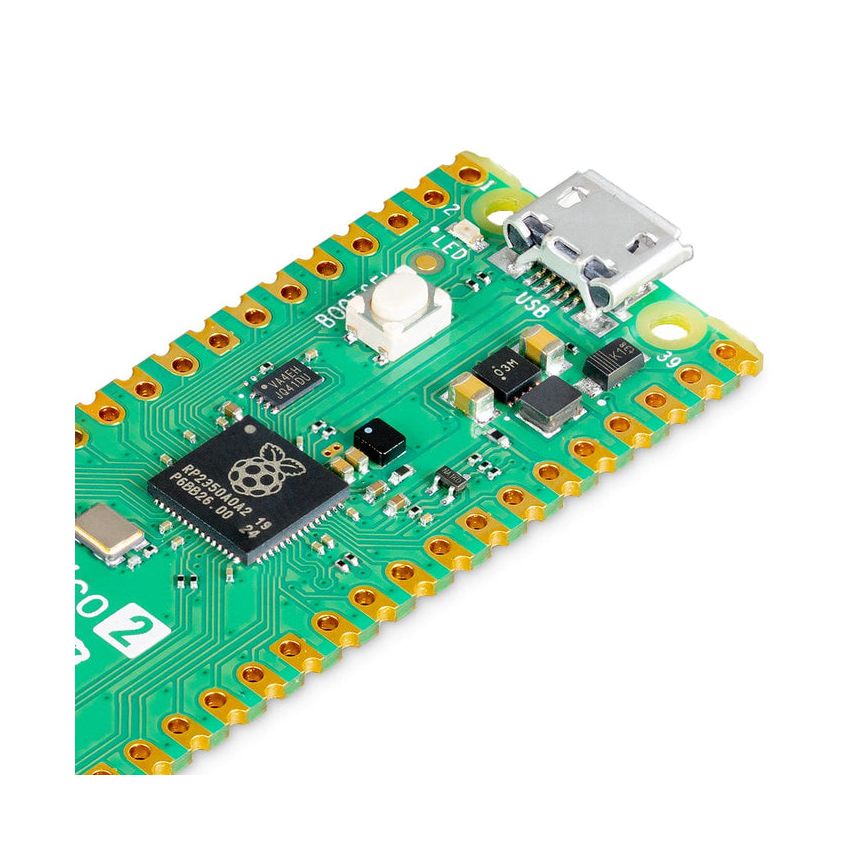

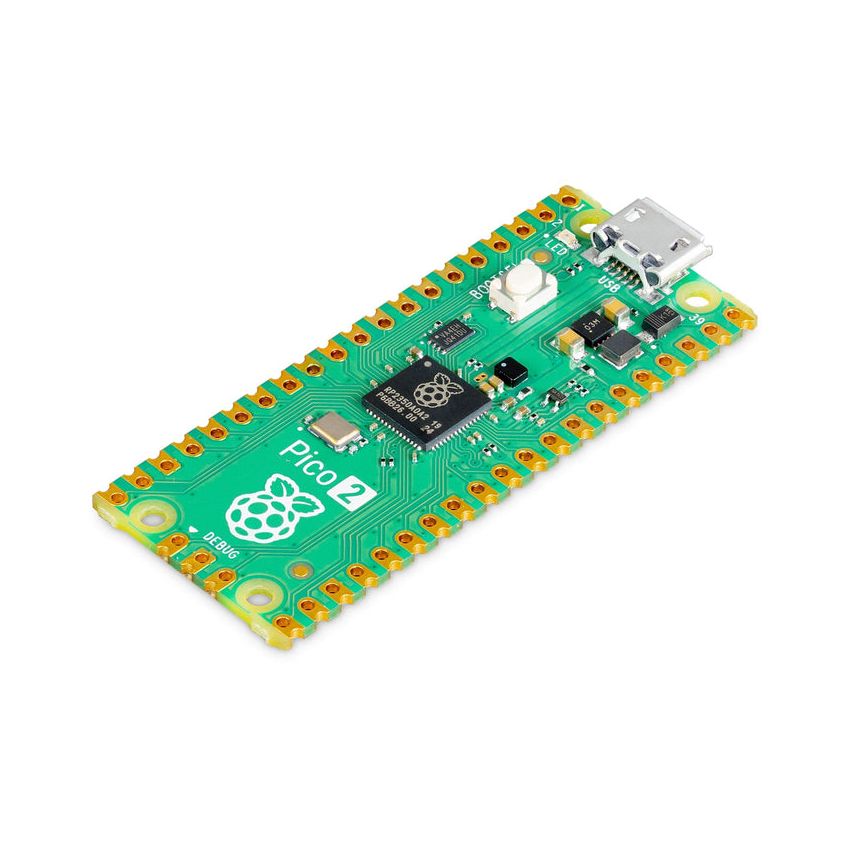

SC1631, Raspberry Pi Pico 2

The Raspberry Pi Pico 2 is the latest microcontroller from Raspberry Pi, built on the RP2350 — their new high-performance, secure microcontroller chip. It delivers significant performance and feature improvements while maintaining compatibility with the original Raspberry Pi Pico series. With the same form factor, GPIO pinout, and micro-USB connector, it allows easy upgrades and reuse of add-ons, cables, and accessories.

• High-performance RP2350 microcontroller with enhanced security
• Same form factor and pinout as the original Raspberry Pi Pico series
• Dual-processor options: Dual Arm Cortex-M33 or dual RISC-V Hazard3 at 150 MHz
• 520 KB on-chip SRAM and 4 MB on-board QSPI flash memory
• 26 multi-purpose GPIO pins, including 3 for ADC
• Extensive peripheral support:
  • 2 UART interfaces
  • 2 SPI controllers
  • 2 I2C controllers
  • 24 PWM channels
  • USB 1.1 controller and PHY with host and device support
  • 12 PIO (Programmable I/O) state machines
• Wide operating voltage range: 1.8 V to 5.5 V DC
• Operating temperature range: -20 Celsius to 85 Celsius
• Long production lifetime guaranteed until at least January 2040

• Size: 21 mm × 51 mm

• No wireless connectivity
• Compliance details available at pip.raspberrypi.com
