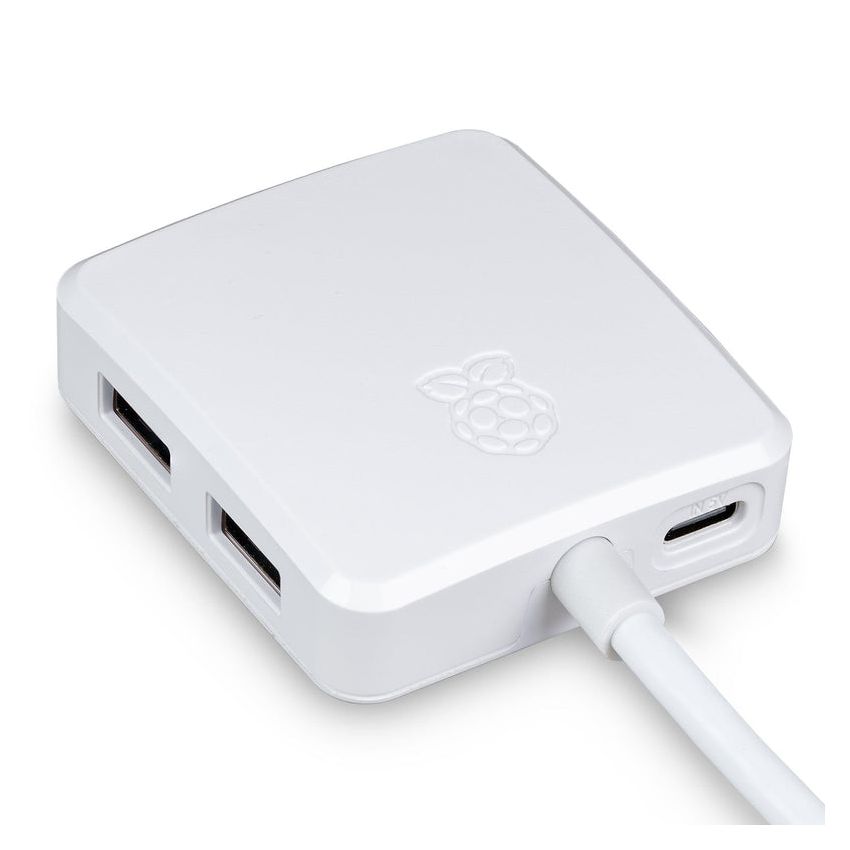

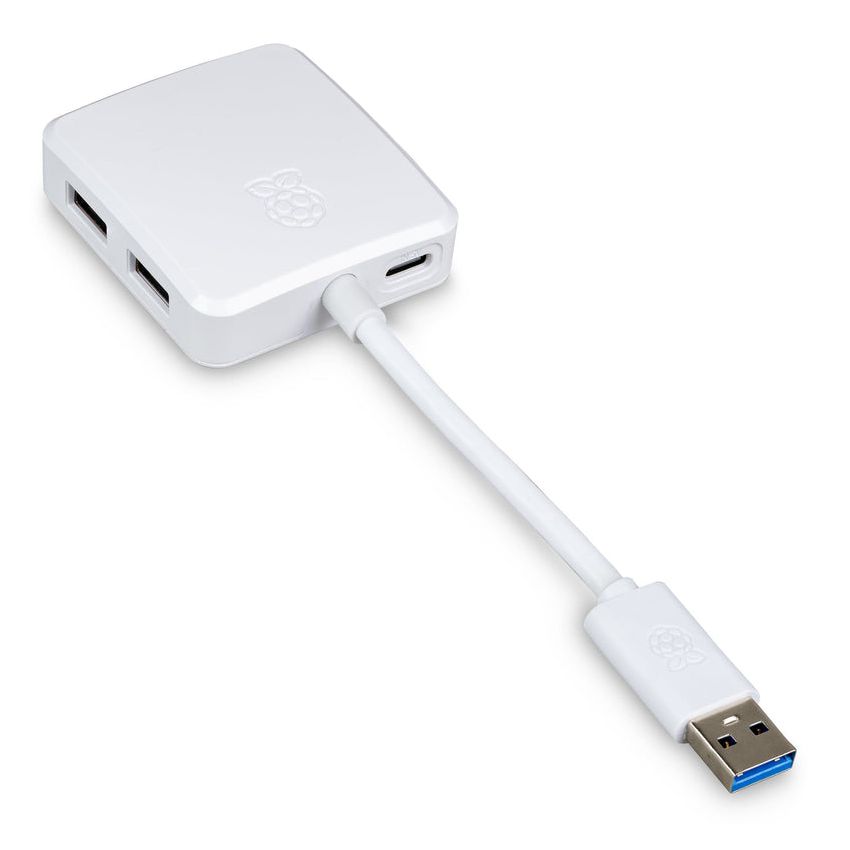

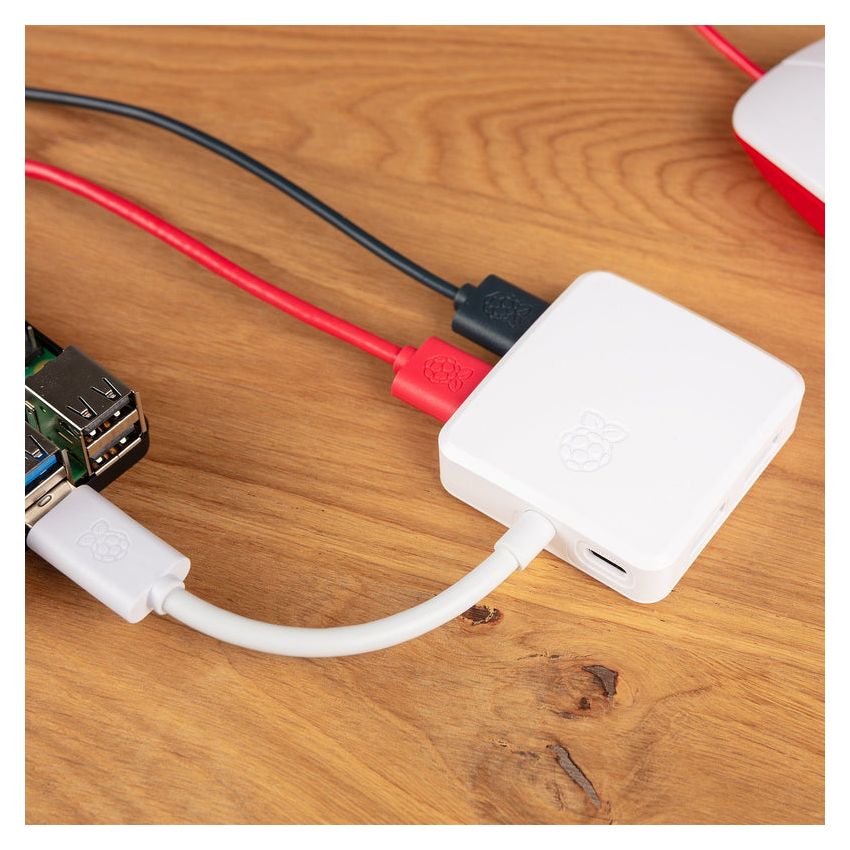

SC1636, Raspberry Pi USB 3.0 Hub

The Raspberry Pi USB 3.0 Hub provides extra connectivity for your Raspberry Pi or other USB host devices, turning one USB-A port into four!

The hub also features a USB-C power input port to optionally support high-power peripherals with additional external power (5V at 3A, the Raspberry Pi 15W USB-C power supply is ideal for this). For lower-power peripherals, no external power is required.

The USB 3.0 Hub has been tested to work seamlessly with all Raspberry Pi products and is backwards-compatible with USB 2.0 ports (such as those found on the Raspberry Pi 3A+). It also works with most generic USB devices, including Windows PCs.

The USB hub can also be used with the Raspberry Pi Zero via a Micro-USB Converter Shim.

• Upstream Connector: Single upstream USB 3 Type-A connector on 8cm captive cable
• Downstream Ports: Four downstream USB 3 Type-A ports
• Data Transfer Speeds: Up to 5 Gbps
• Power Input: Optional external USB-C power input to support high-power downstream peripherals (sold separately); power input 5V at 3A
• Compatibility: Compatible with a USB 3 Type-A port host; backwards-compatible with USB 2 ports
• Production Lifetime: The Raspberry Pi USB 3 Hub will remain in production until at least January 2030
