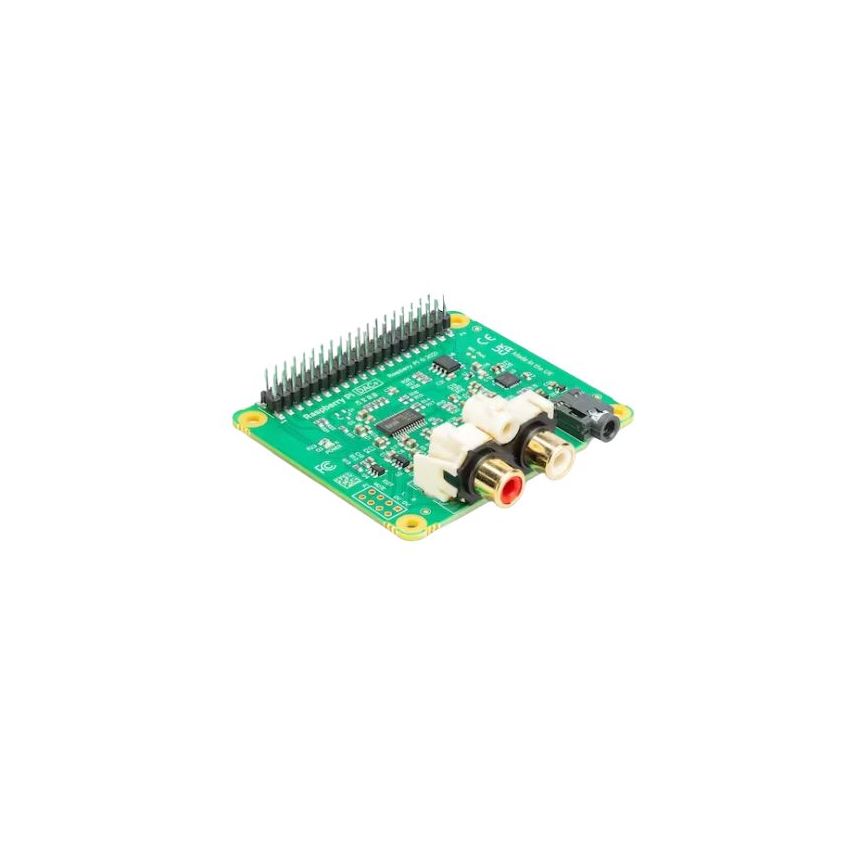

Raspberry Pi DAC+ is a high-performance audio HAT compatible with any Raspberry Pi computer that has a 40-pin GPIO header. With the Texas Instruments PCM5122, it delivers stereo analogue audio to a pair of phono (RCA) connectors. It does not require external power, and connects directly to Raspberry Pi’s GPIO header with no need for soldering or cables. Previously known as IQaudio DAC+.

Specifications

The Raspberry Pi DAC+ is compatible with any Raspberry Pi computer that has a 40-pin GPIO header.
Form factor: 58 mm × 65 mm
Performance: Full high definition 24-bit 192kHz Texas Instruments PCM5122 digital audio codec (DAC)
Input power: Supplied by Raspberry Pi through the 40-pin GPIO header. No external power source required

Features:

Power LED
Analogue audio out (0-2V RMS) via panel-mounted stereo
phono (RCA) sockets with MUTE signal (headphone detect)
Dedicated headphone amplifier, output via 3.5mm panelmounted barrel socket
40-pin pass-through GPIO header
HAT EEPROM write-enabled
Operating temperature: 0°C–50°C
