SC1635, Raspberry Pi Touch Display 2

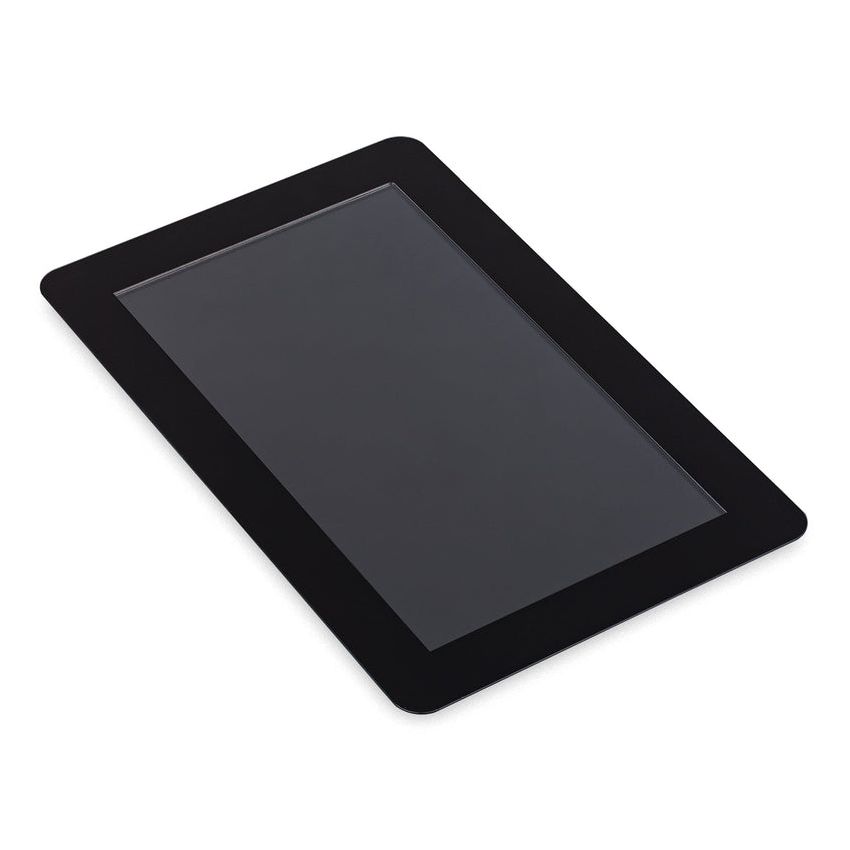

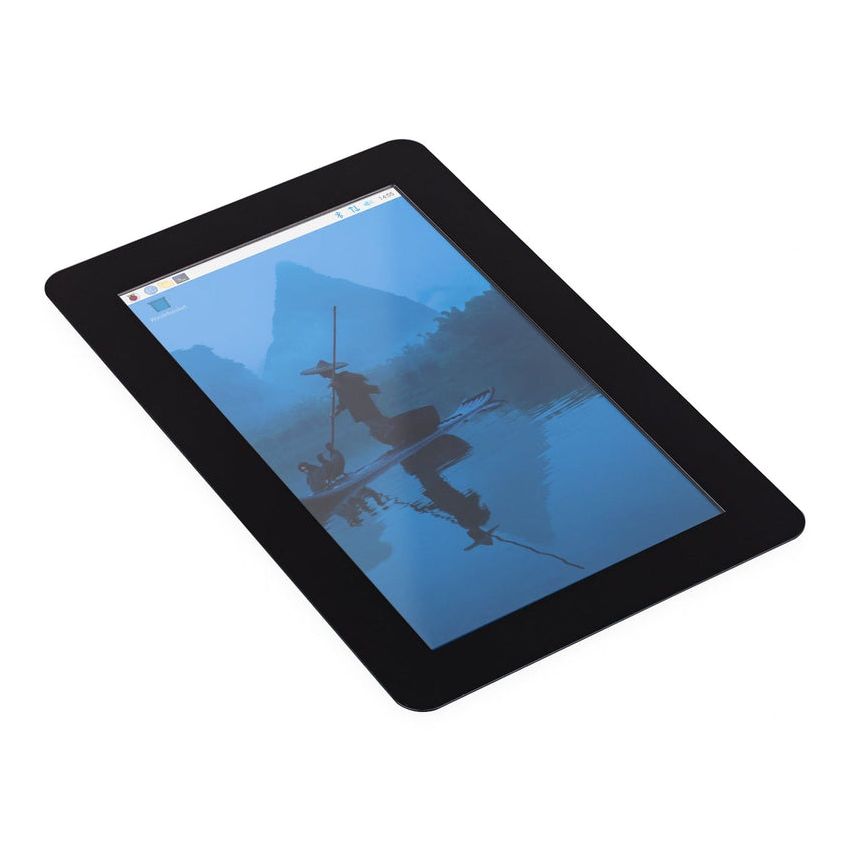

The Raspberry Pi Touch Display 2 is a 7′′ touchscreen display for Raspberry Pi with a 720x1280 resolution, ideal for interactive projects such as entertainment systems, home automation, and information dashboards, or simply used as a compact monitor for your Raspberry Pi OS desktop!

Raspberry Pi OS provides touchscreen drivers with support for five-finger capacitive touch and an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse.

Only two connections are required to connect the display to your Raspberry Pi: power from the GPIO port, and a ribbon cable that connects to the DSI port on all Raspberry Pi computers (except for the Raspberry Pi Zero and Pi 400 line). The Raspberry Pi provides power to the display, so no separate power supply is required.

• Touchscreen display for Raspberry Pi
• Compatible with all Raspberry Pi boards with a DSI connector
• 7" display
• Portrait 720x1280 resolution (can be changed to landscape in software)
• Five-finger true multi-touch
• Capacitive touch
• Anti-glare surface treatment
• Powered directly by the host Raspberry Pi, no separate power supply required

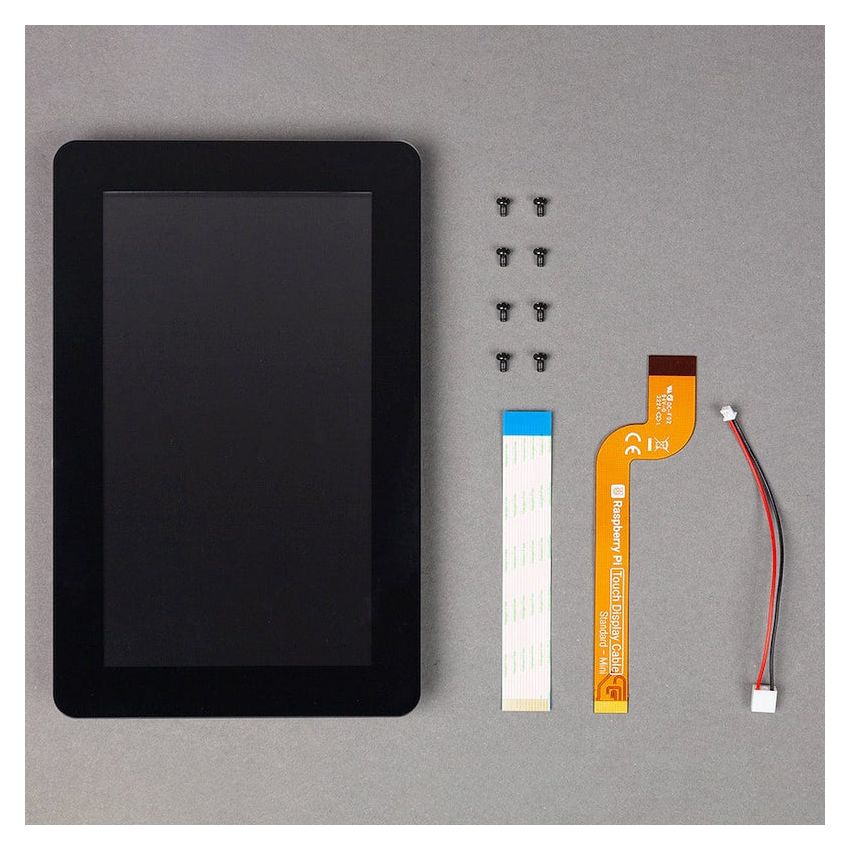

• Rear mounting points for Raspberry Pi boards (fixings included)
• Not compatible with enclosures designed for the original/older Raspberry Pi touch display
• Size: 189.32mm x 120.24mm
• Display Size (Diagonal): 7"
• Display Format: 720 (RGB) x 1280 pixels
• Active Area: 88mm x 155mm
• LCD Type: TFT, normally white, transmissive
• Colour Configuration: RGB-stripe
• Backlight Type: LED B/L
• Production Lifetime: The touch display will remain in production until at least January 2030
